44 - 47 - Position of Parts In Instrument Panel
44 - 47 - Position of Parts In Instrument Panel

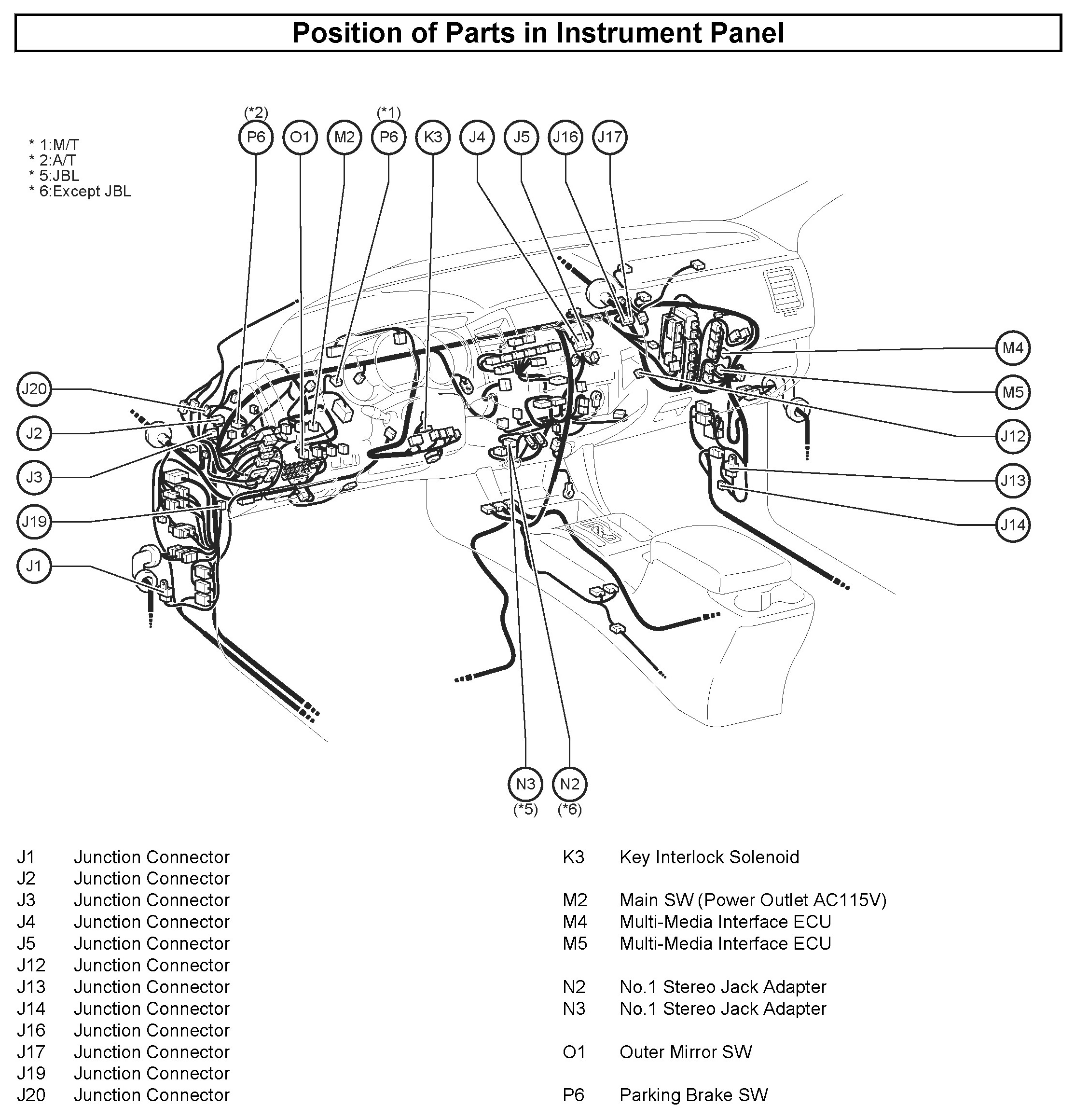

44 - Position of Parts In Instrument Panel:

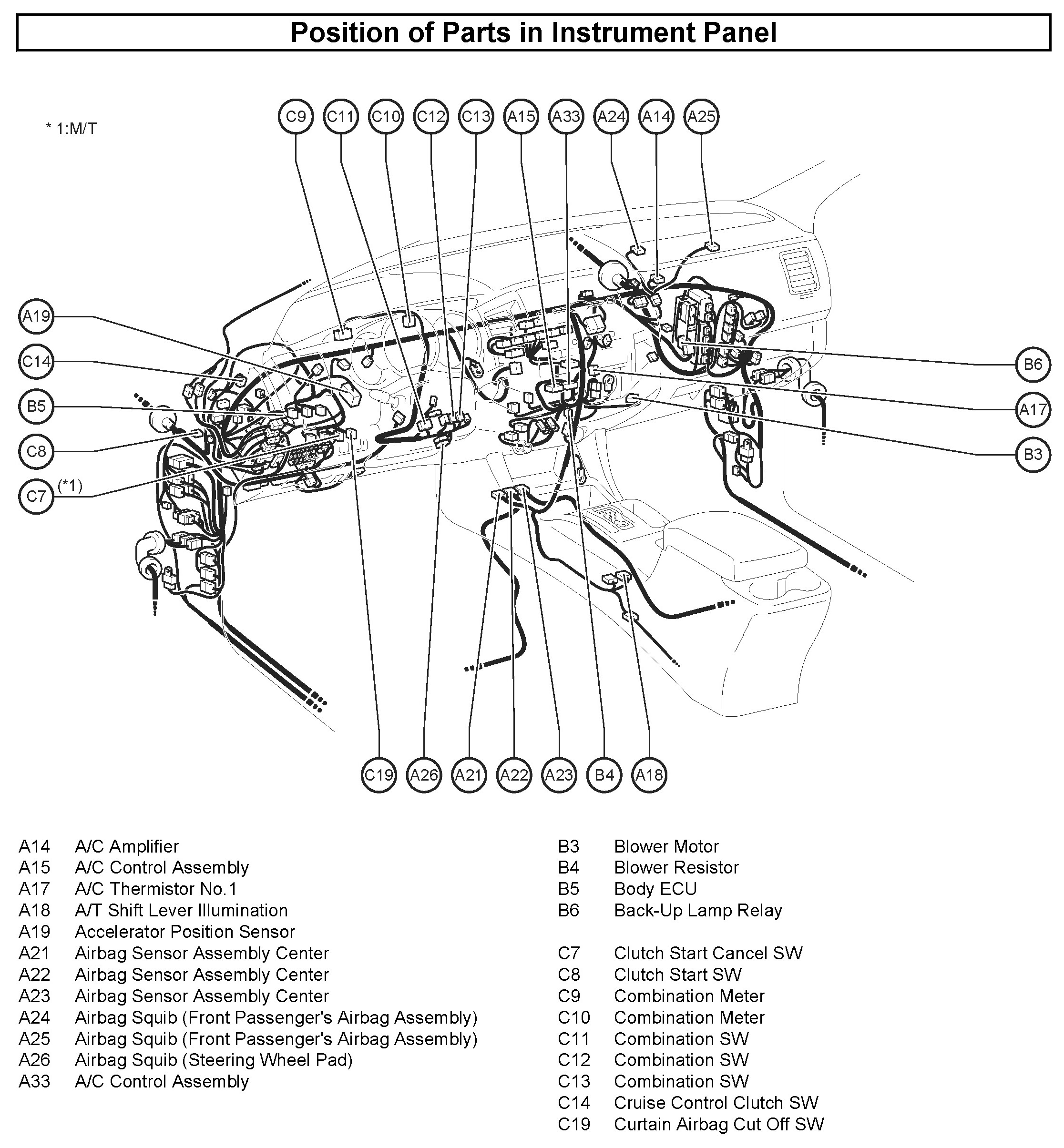

45 - Position of Parts In Instrument Panel:
46 - Position of Parts In Instrument Panel:
47 - Position of Parts In Instrument Panel:
