48 - 52 - Position of Parts In Body

Double Cab

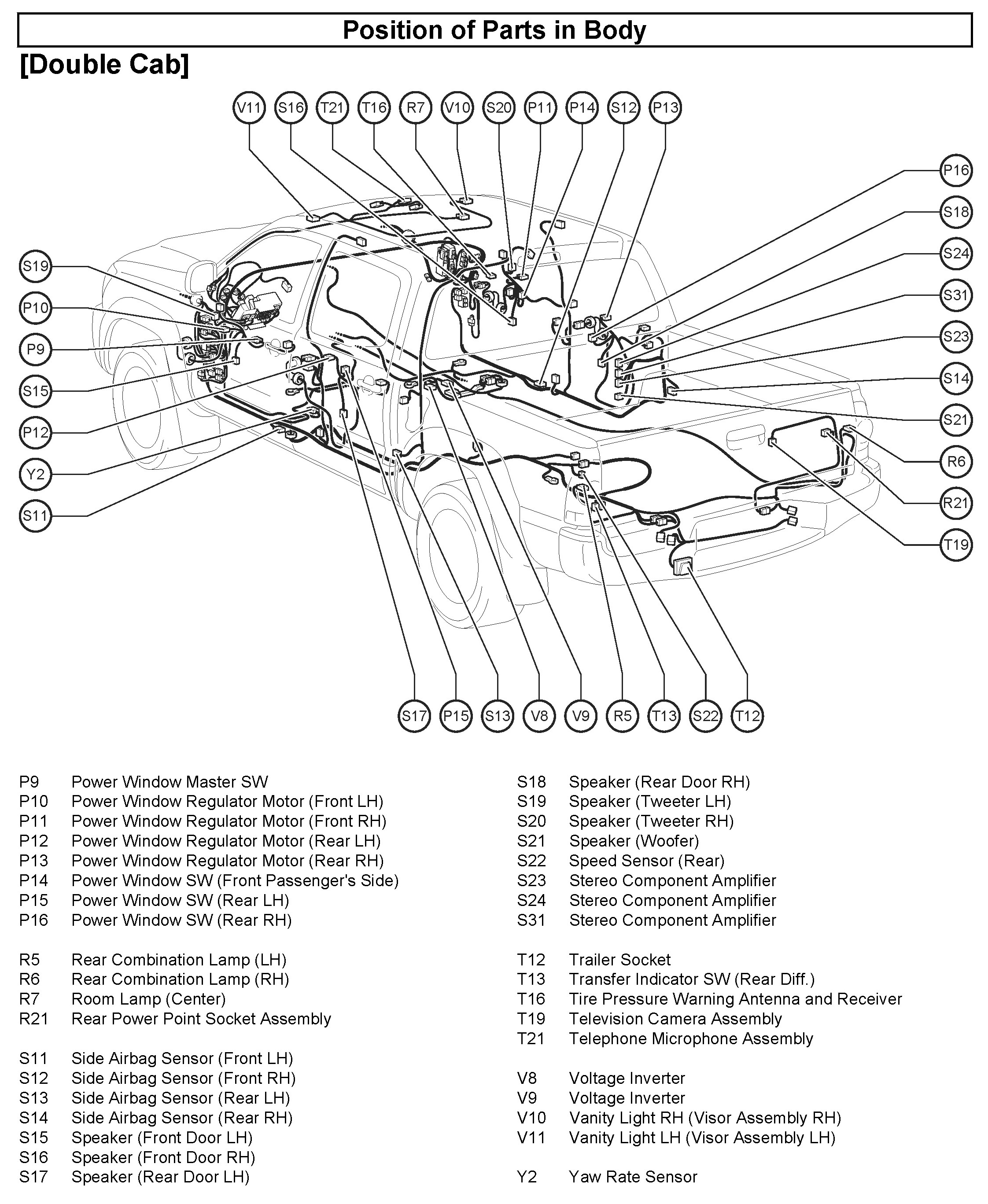

48 - Position of Parts In Body:






49 - Position of Parts In Body:






Access Cab

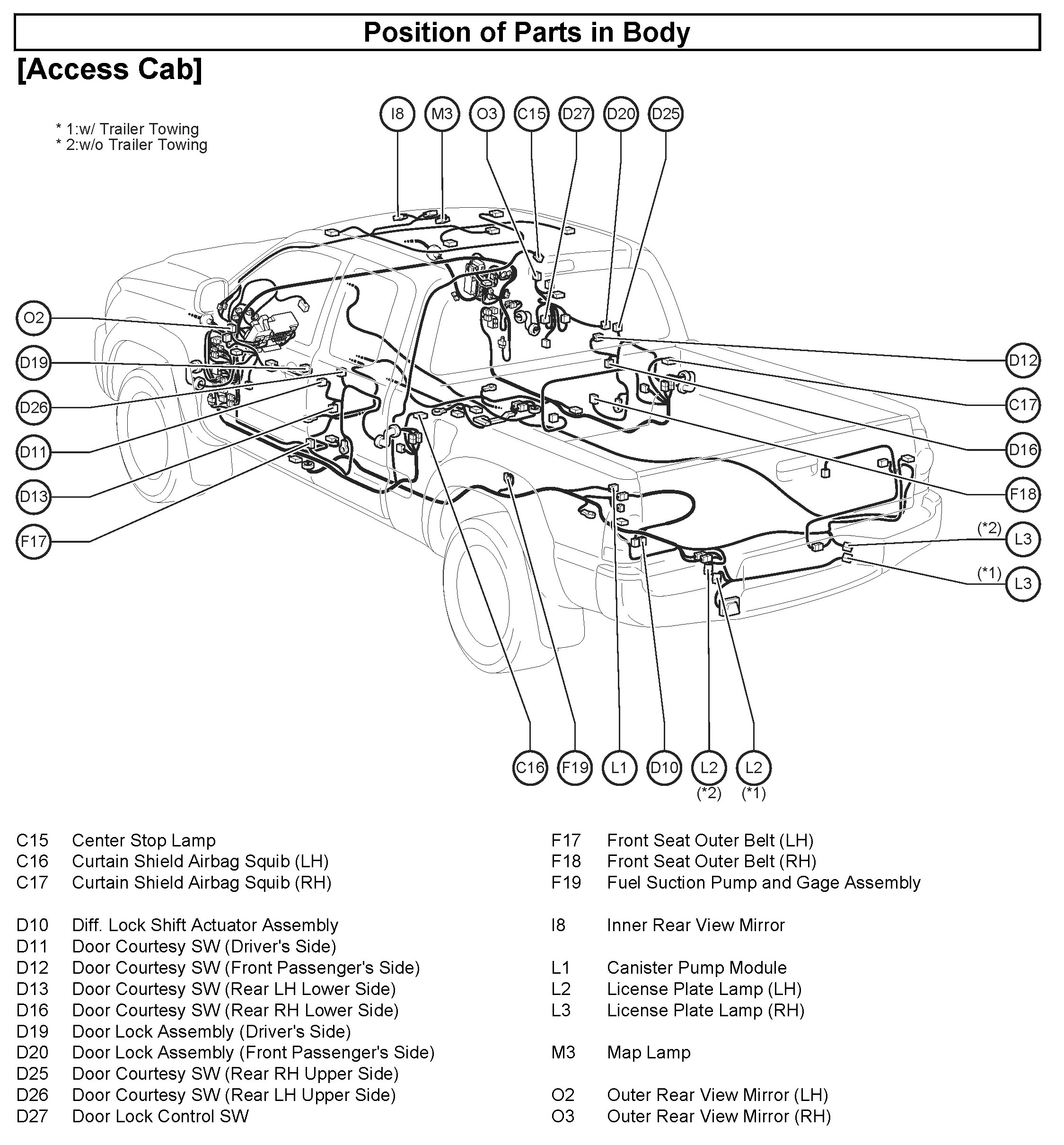

50 - Position of Parts In Body:

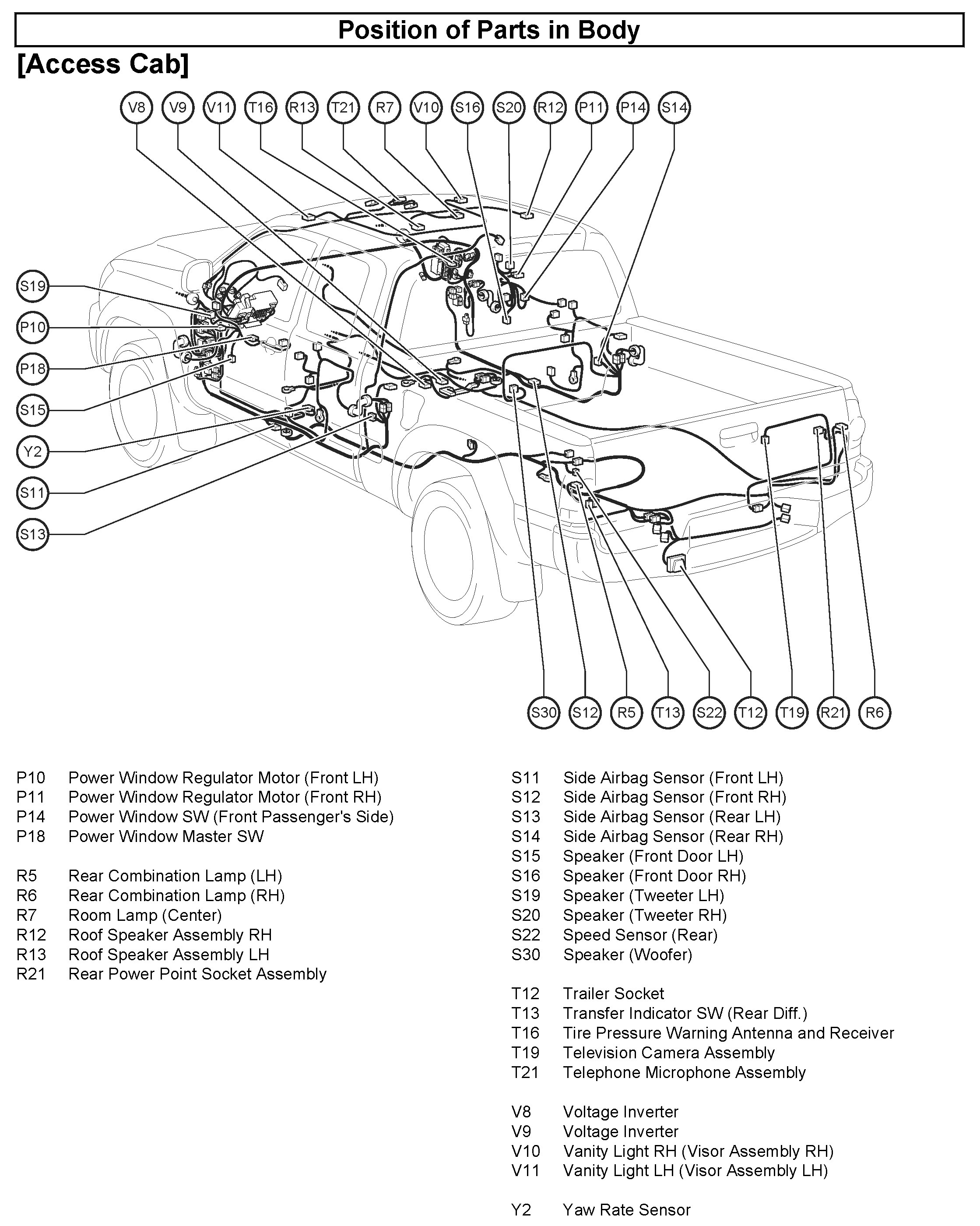

51 - Position of Parts In Body:






Regular Cab

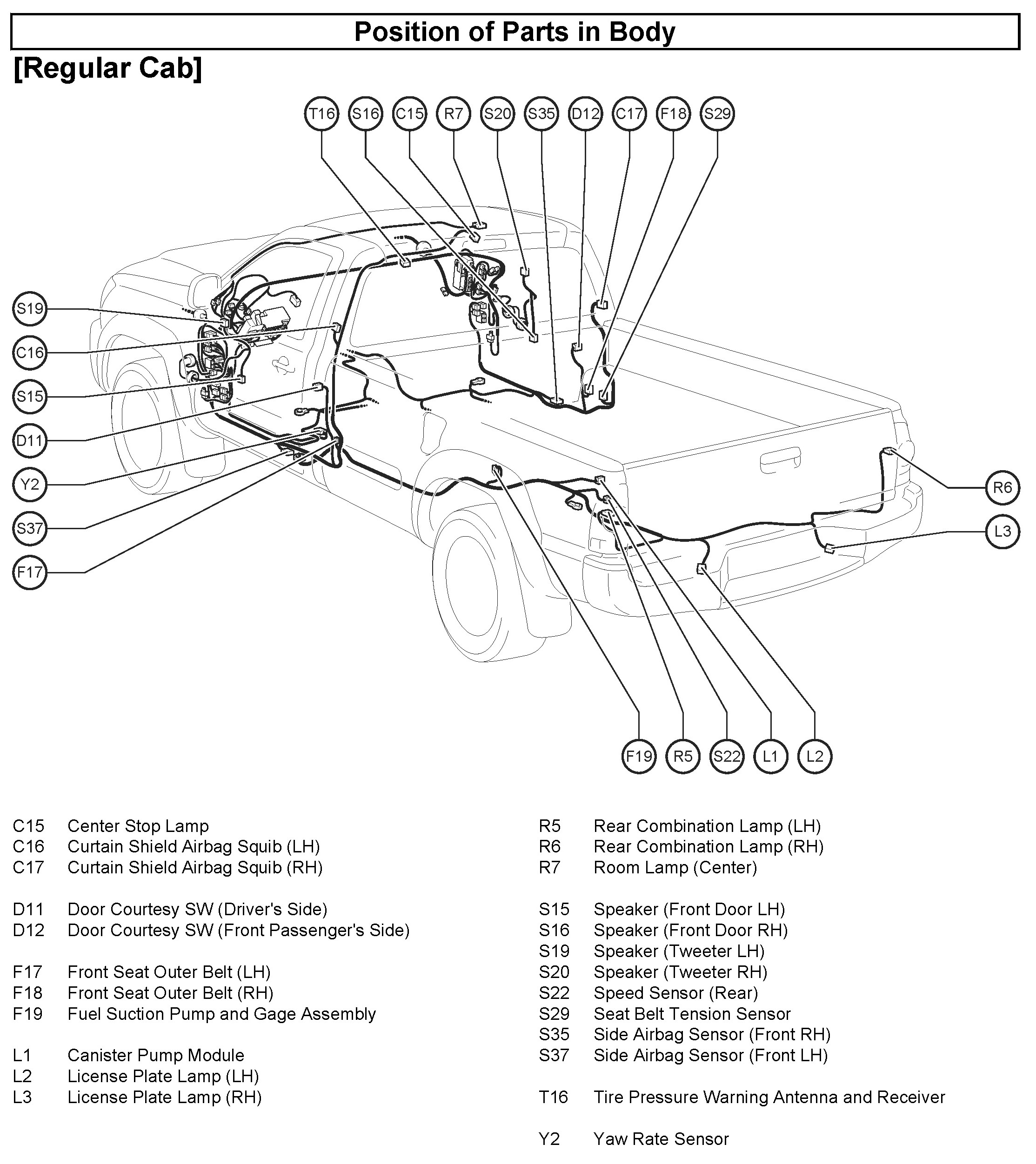

52 - Position of Parts In Body:
