54 - 55 - Position of Parts In Seat
54 - 55 - Position of Parts In Seat

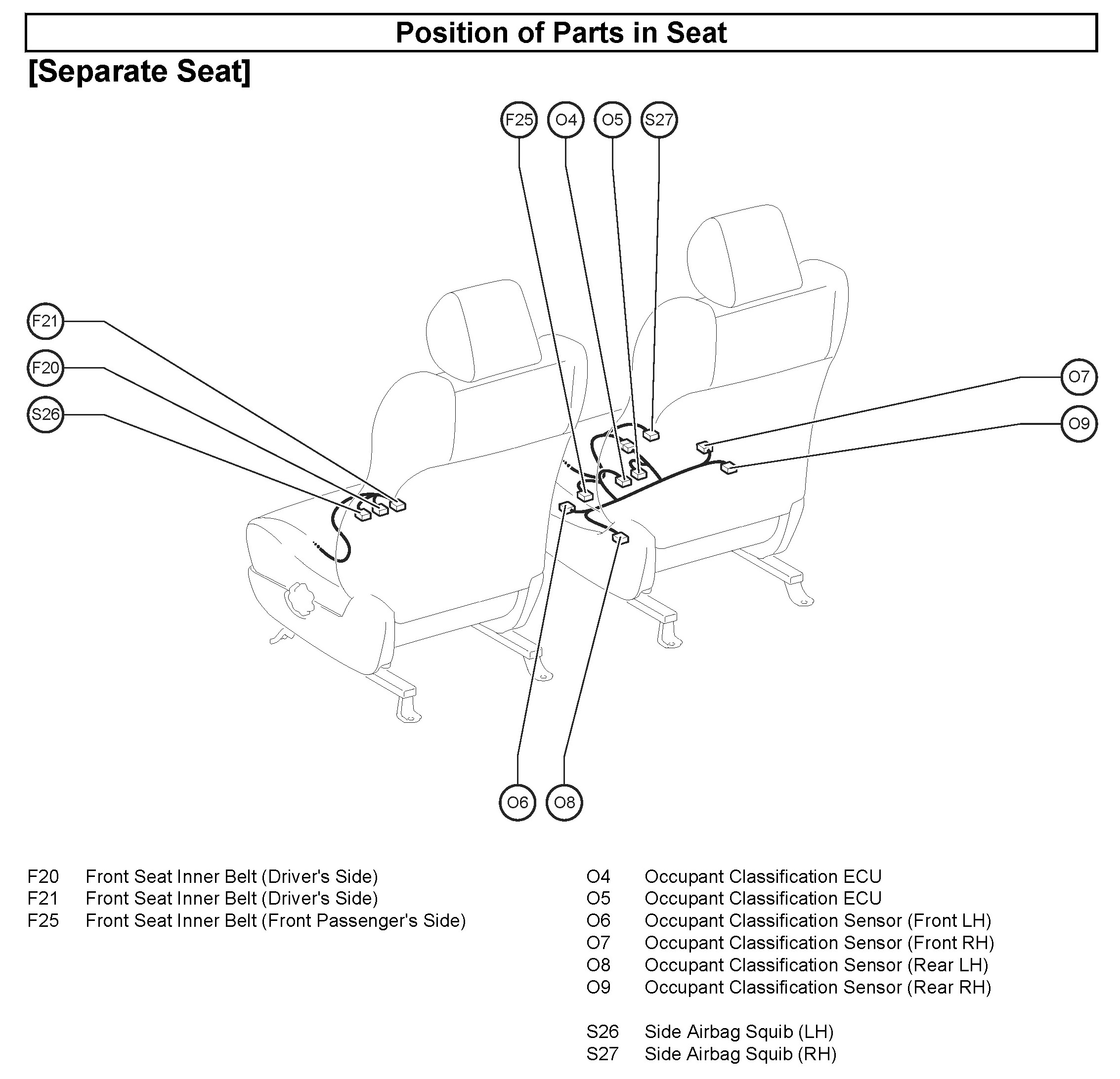

Separate Seat
54 - Position of Parts In Seat:

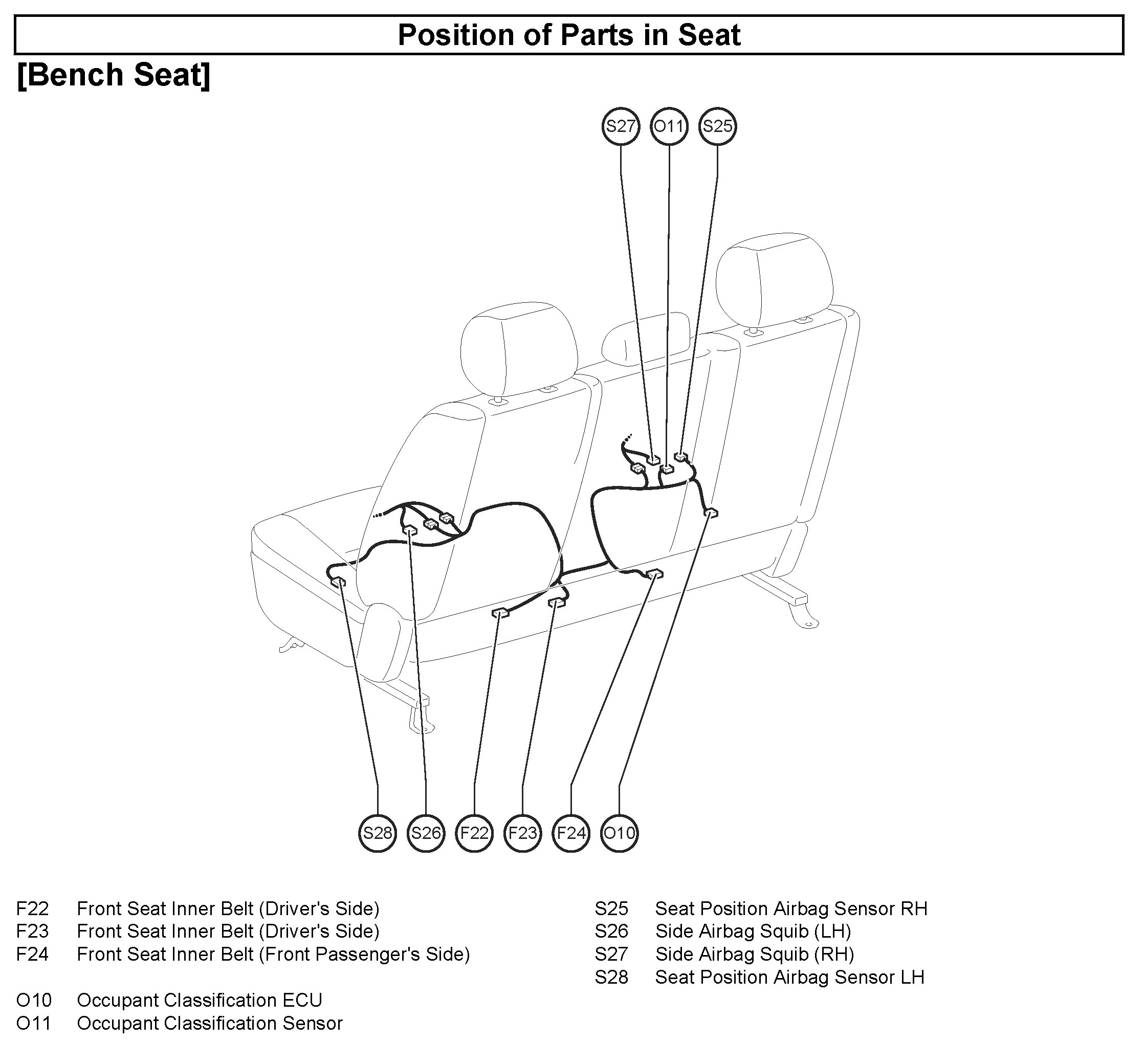

Bench Seat
55 - Position of Parts In Seat:
