Toyota Truck
>>
2012
>>
Tacoma PreRunner V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

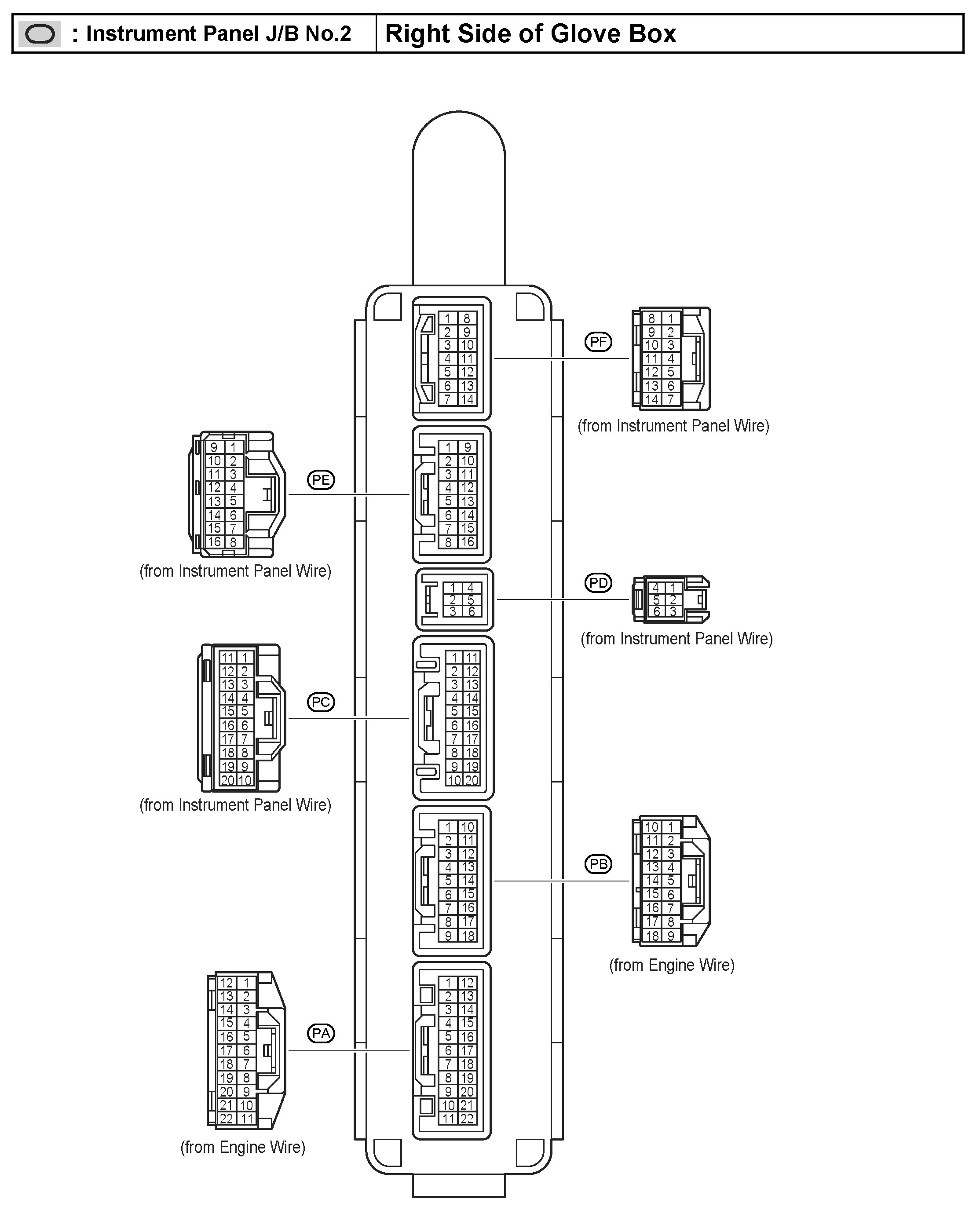

36 - Instrument Panel J/B No.2 - Right Side of Glove Box
36 - Instrument Panel J/B No.2 - Right Side of Glove Box
36 - Instrument Panel J/B No.2 - Right Side of Glove Box:
