ABS (Hydraulic Booster), A-TRAC, Auto LSD (Hydraulic Booster), Downhill Assist Control, Hill-Start Assist Control and VSC

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type)

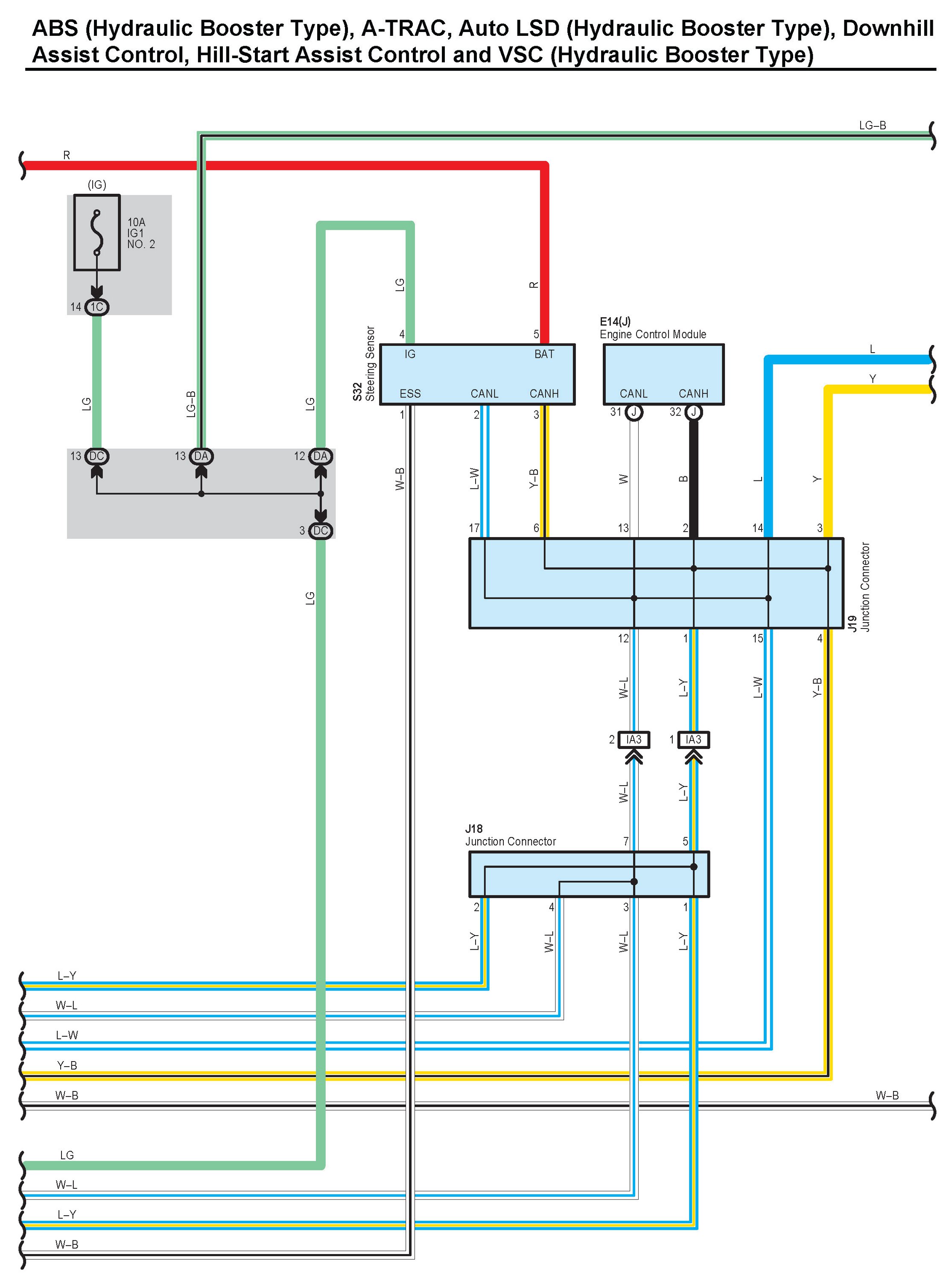

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type) Part 1:

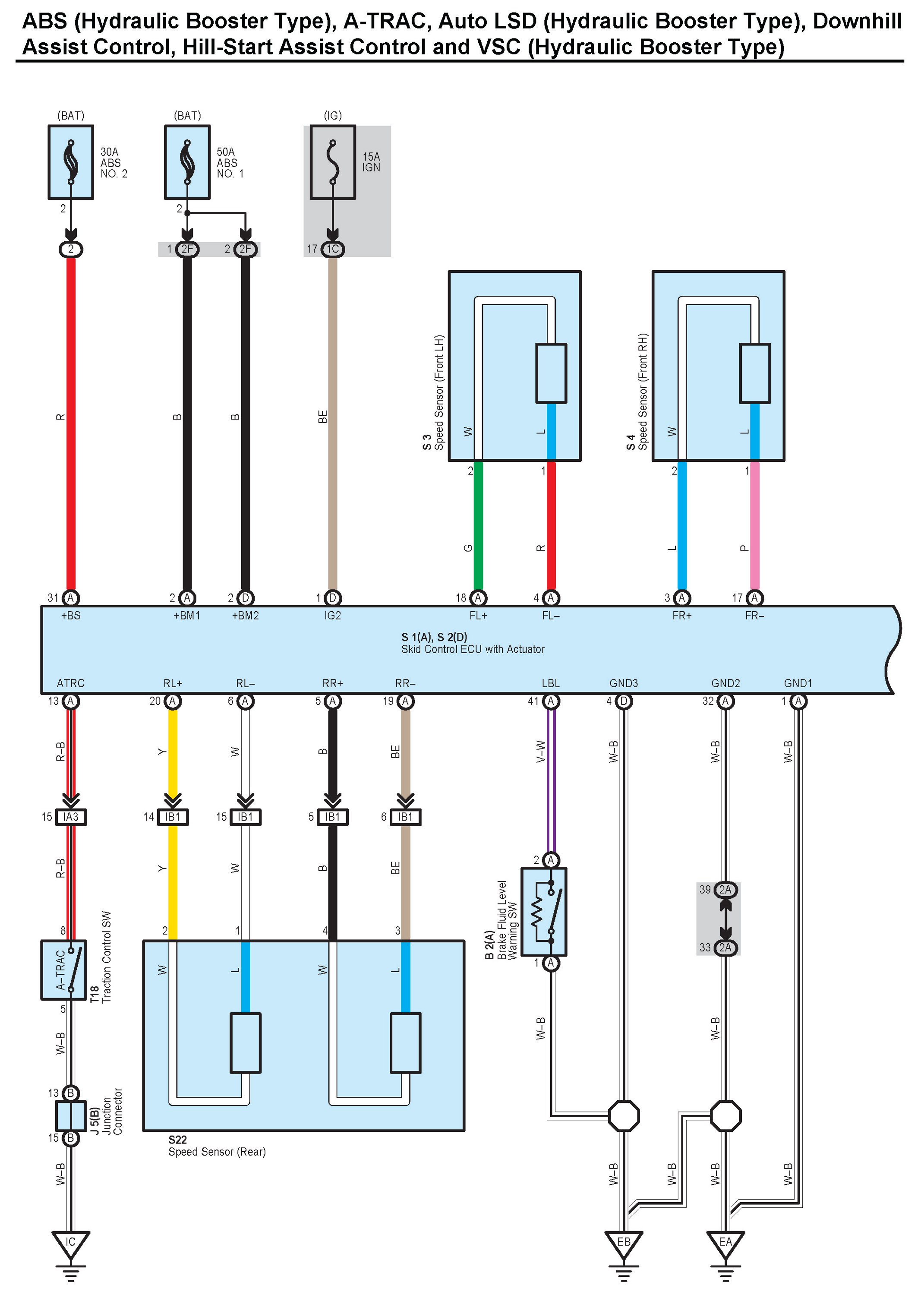

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type) Part 2:

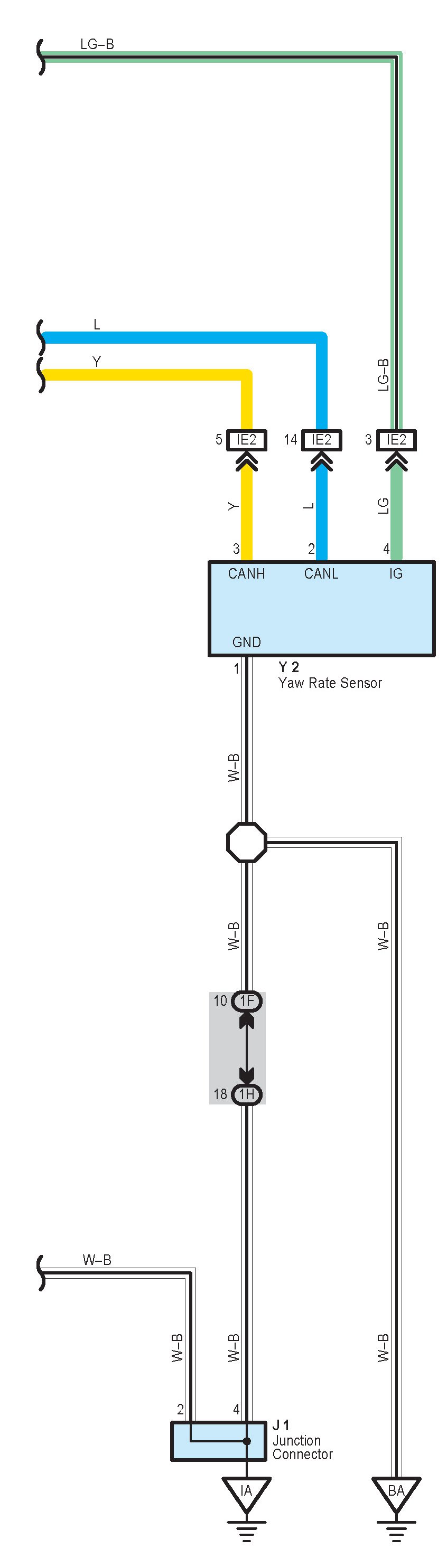

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type) Part 3:

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type) Part 4:

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type) Part 5:

ABS (Hydraulic Booster Type), A-TRAC, Auto LSD (Hydraulic Booster Type), Downhill Assist Control, Hill-Start Assist Control and VSC (Hydraulic Booster Type) Part 6:

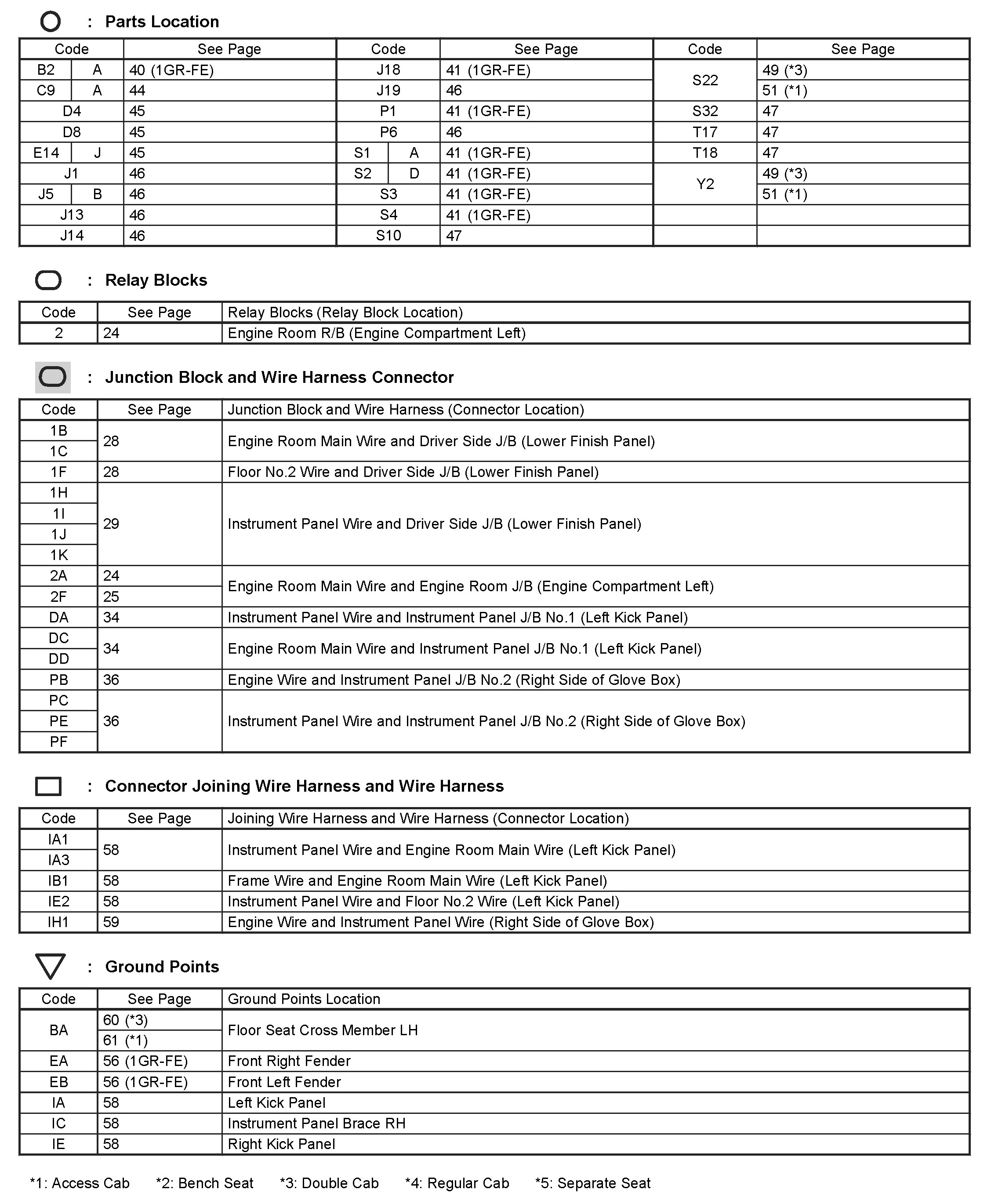

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
