Audio System (Separate Type Amplifier)

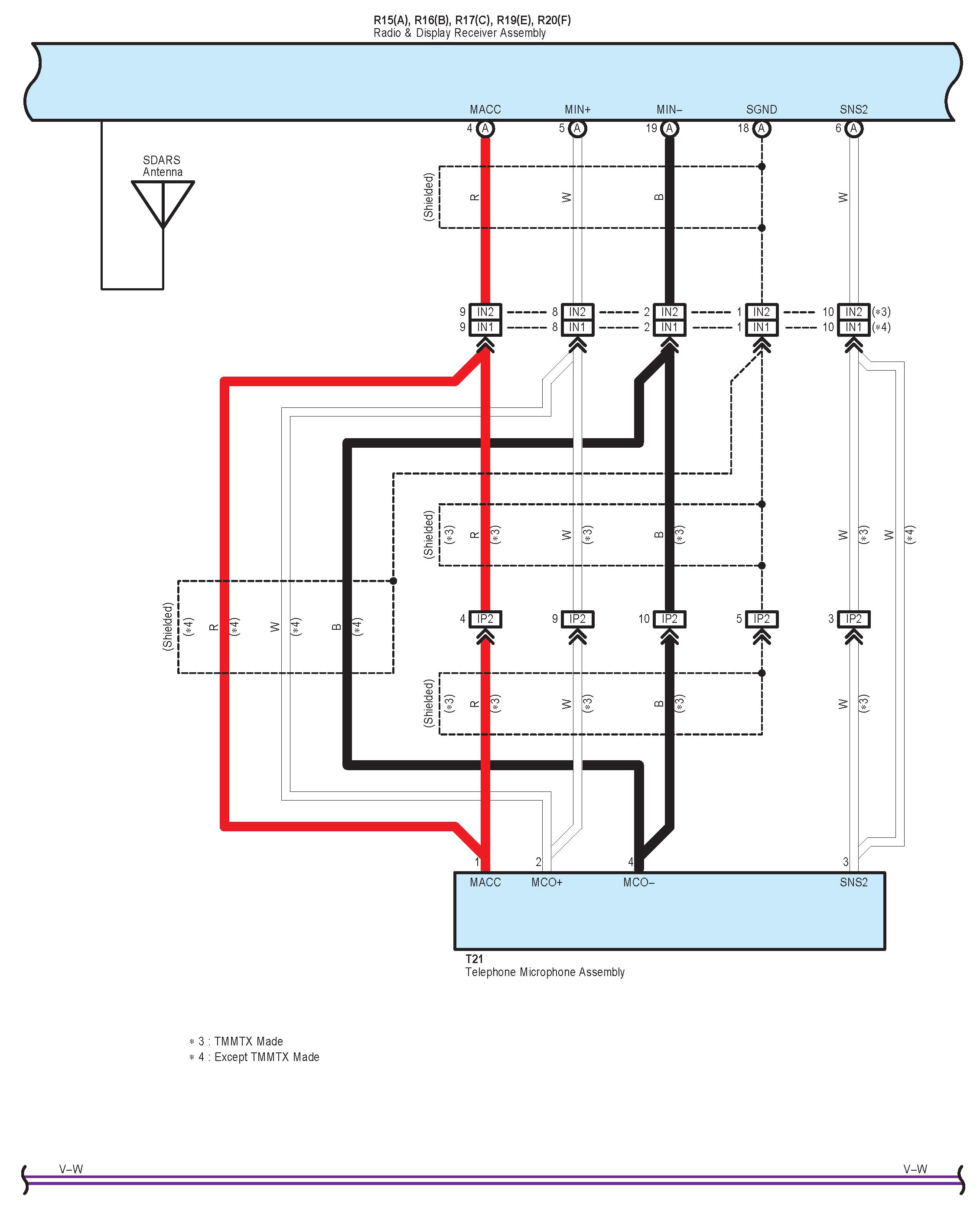

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 1:

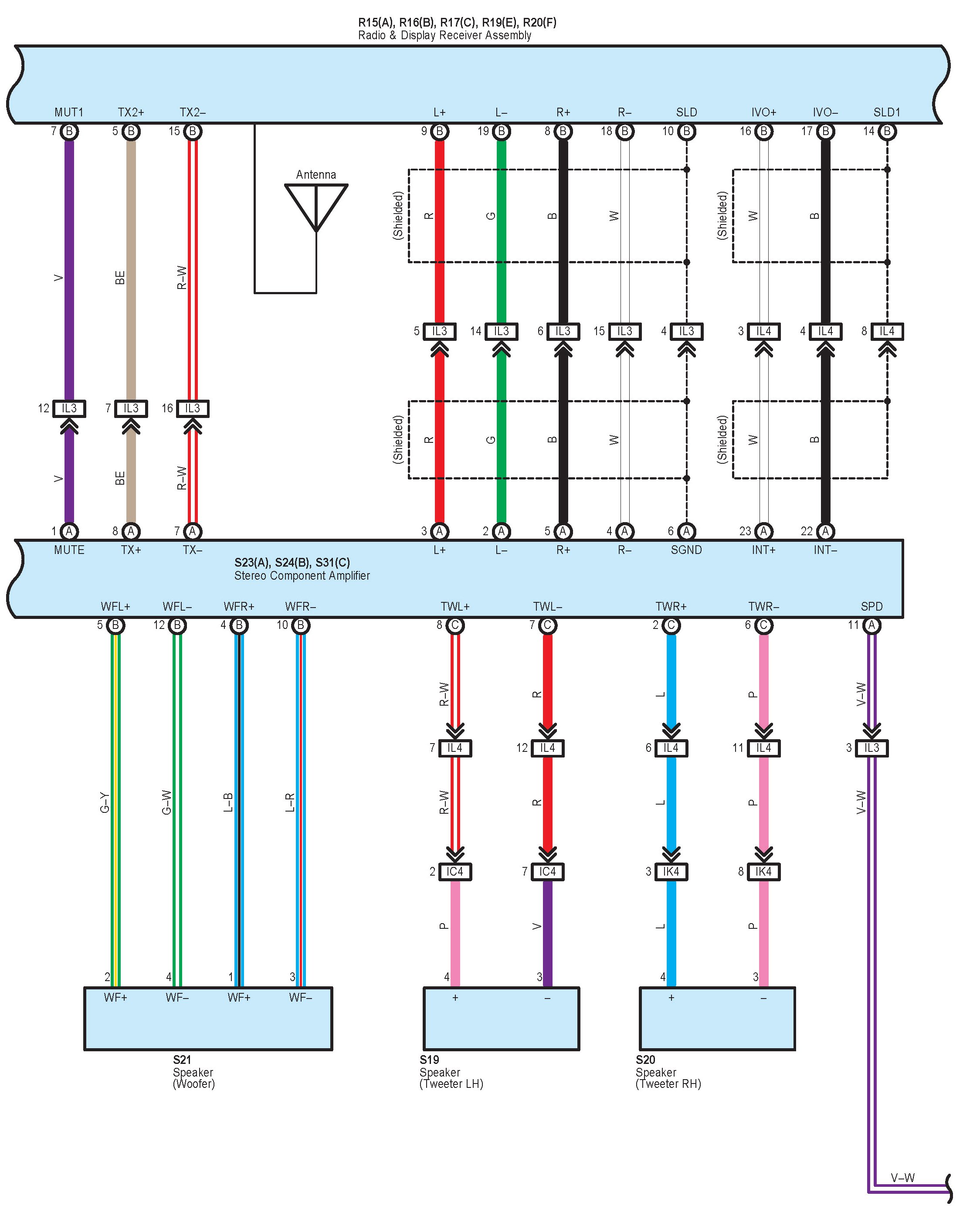

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 2:

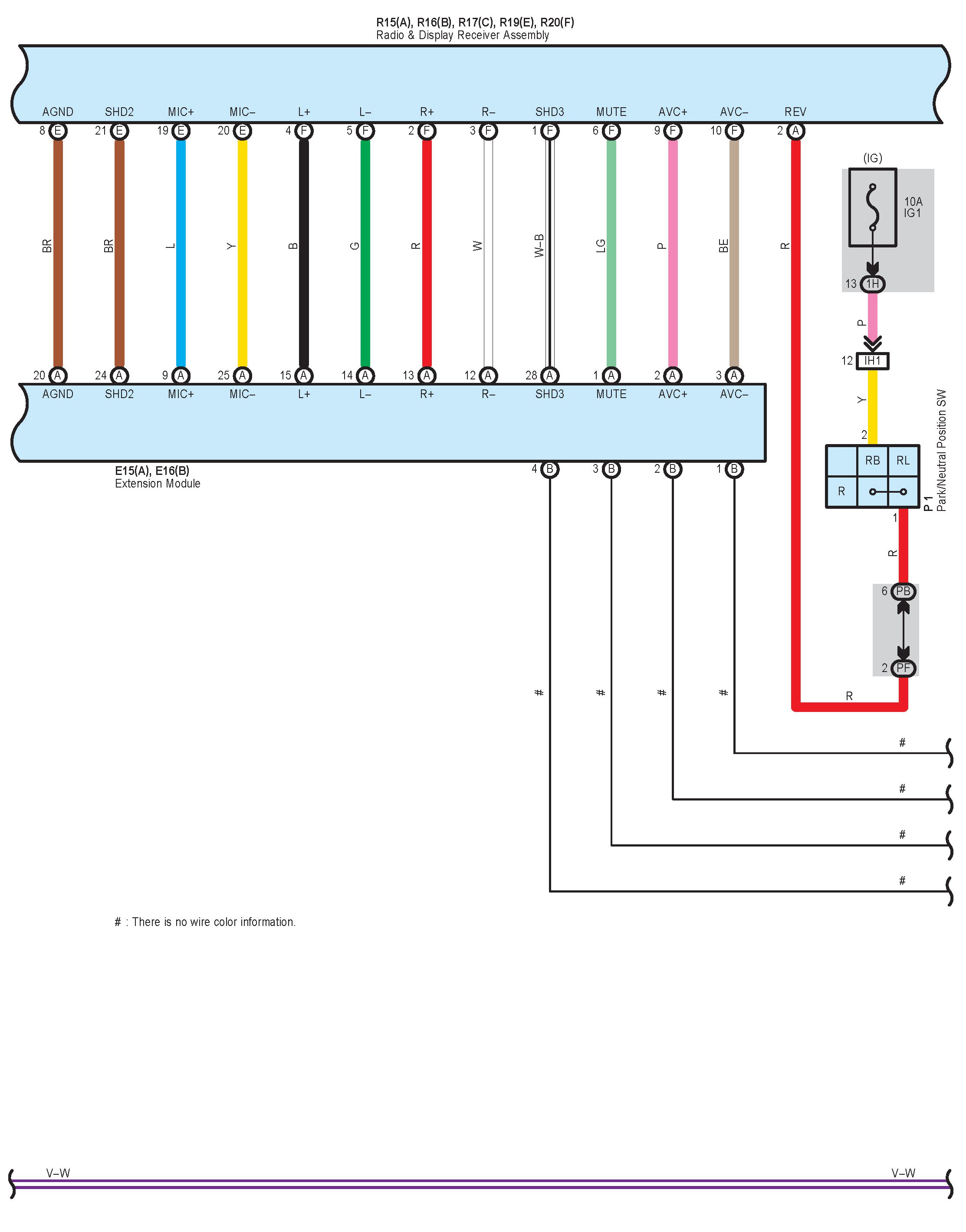

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 3:

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 4:

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 5:

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 6:

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 7:

Audio System (Separate Type Amplifier), Navigation System and Parking Assist (Rear View Monitor (JBL)) Part 8:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
