Torque Specifications





SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

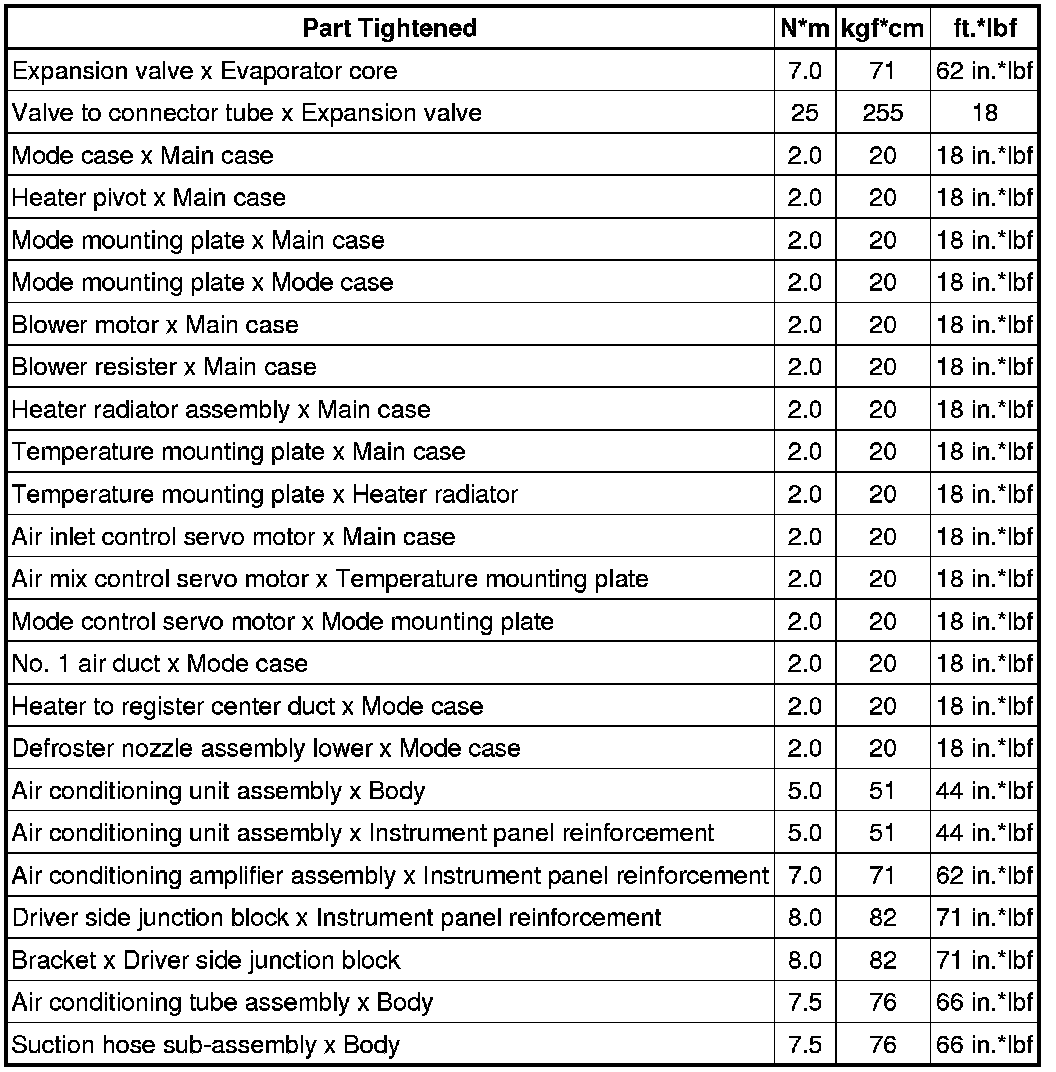

AIR CONDITIONING UNIT

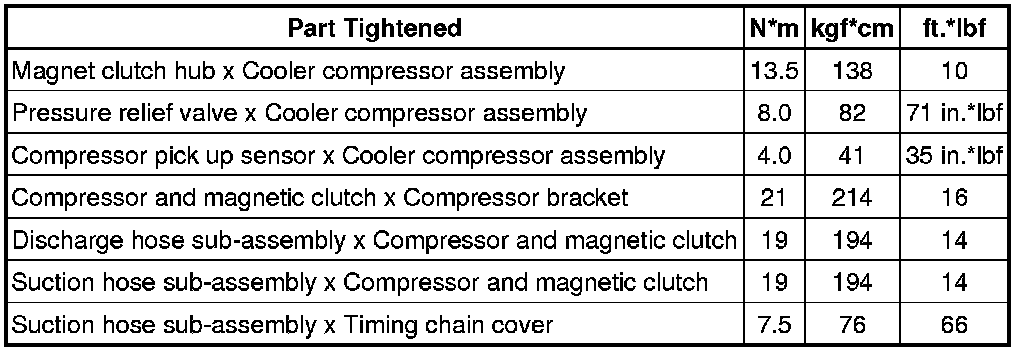

COMPRESSOR AND MAGNETIC CLUTCH

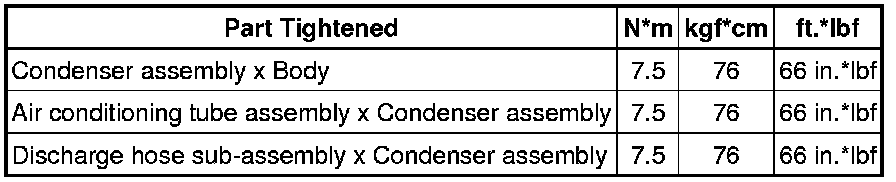

CONDENSER
