Meter / Gauge System

METER: METER / GAUGE SYSTEM: ON-VEHICLE INSPECTION

1. INSPECT SPEEDOMETER

(a) Check speedometer operation.

NOTICE:
* The meter ECU receives the vehicle speed signal from the brake actuator assembly via CAN communication. Therefore, perform the following inspection referring to values on the Data List of the brake actuator assembly because it is the source of the vehicle speed signal.
* The Data List values of the brake actuator assembly are used for this inspection. Therefore, make sure to perform the inspection after confirming that no DTCs are output from the brake control system.
* If the tire size or tire inflation pressure is not within the specified range, or the tires are excessively worn, the speedometer indication error will increase. Therefore, make sure to perform the inspection after checking that the tire size, tire inflation pressure and tire wear are in the specified range.

(1) Before starting the following inspection, check if the Brake Control System outputs the DTCs.

(2) Check the values by referring to the table below.

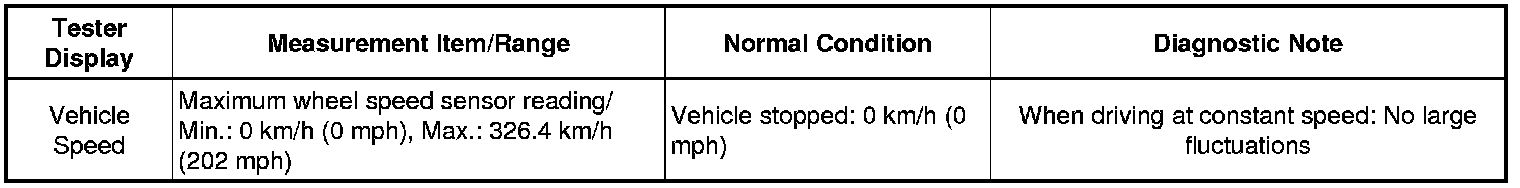

ABS/VSC/TRC





Reference (Indicator Type: mph)

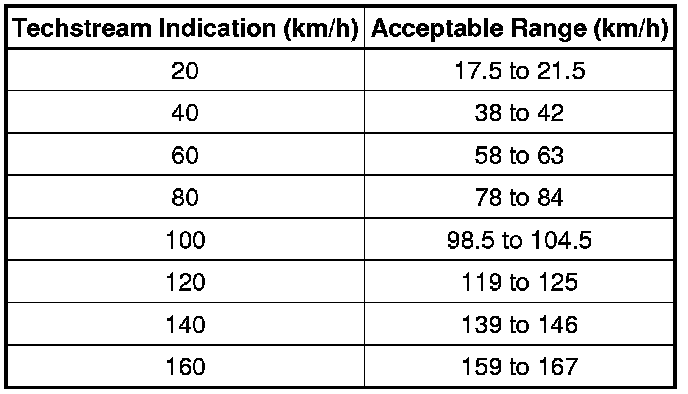

Reference (Indicator Type: km/h)





2. INSPECT TACHOMETER

(a) Check the operation.

(1) Connect the Techstream, and start the engine.

(2) Compare the test results with the tachometer indications.

Reference
