Removal

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: REMOVAL

1. REMOVE REAR COMBINATION LIGHT ASSEMBLY

(a) Remove the 2 bolts.





(b) Slide the rear combination light assembly toward the rear of the vehicle and release the 2 pins.

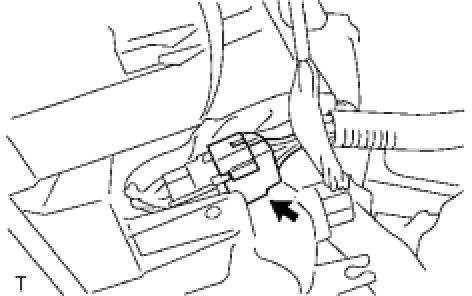

(c) Disconnect the connector, and then remove the rear combination light assembly.





2. REMOVE REAR TURN SIGNAL LIGHT BULB

(a) Turn the rear combination light socket and wire sub-assembly with the bulb in the direction indicated by the arrow in the illustration to remove them.





(b) Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.

3. REMOVE BACK UP LIGHT BULB

(a) Turn the rear combination light socket and wire sub-assembly with the bulb in the direction indicated by the arrow in the illustration to remove them.





(b) Remove the back up light bulb from the rear combination light socket and wire sub-assembly.

4. REMOVE TAIL AND STOP LIGHT BULB (for Bulb Type Stop Light)

(a) Turn the rear combination light socket and wire sub-assembly with the bulb in the direction indicated by the arrow in the illustration to remove them.





(b) Remove the tail and stop light bulb from the rear combination light socket and wire sub-assembly.

5. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY (for Bulb Type Stop Light)

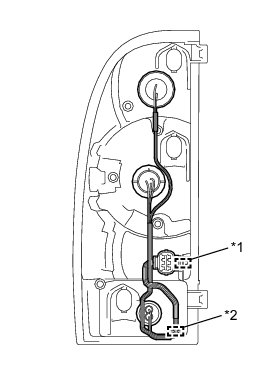

(a) Disengage the clamp and the guide to remove the rear combination light socket and wire sub-assembly.





Text in Illustration





6. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY (for LED Type Stop Light)

(a) Turn the tail and stop light socket of the rear combination light socket and wire sub-assembly in the direction indicated by the arrow in the illustration to remove them.





Text in Illustration





(b) Disconnect the connector.

(c) Disengage the clamp and the guide to remove the rear combination light socket and wire sub-assembly.
