Multiple Junction Connector: Locations

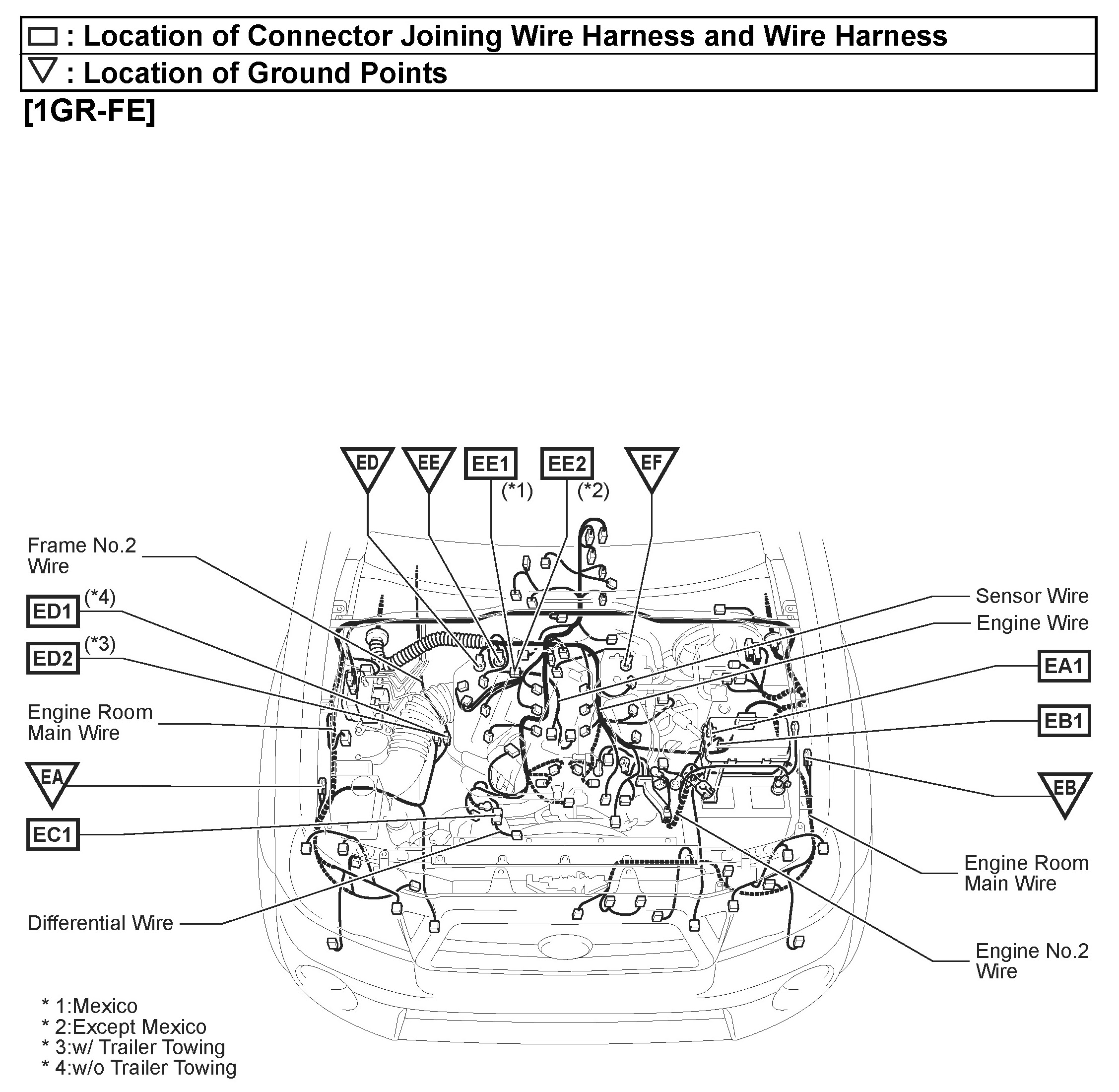

56 - EA-EF, EA1-EE2:

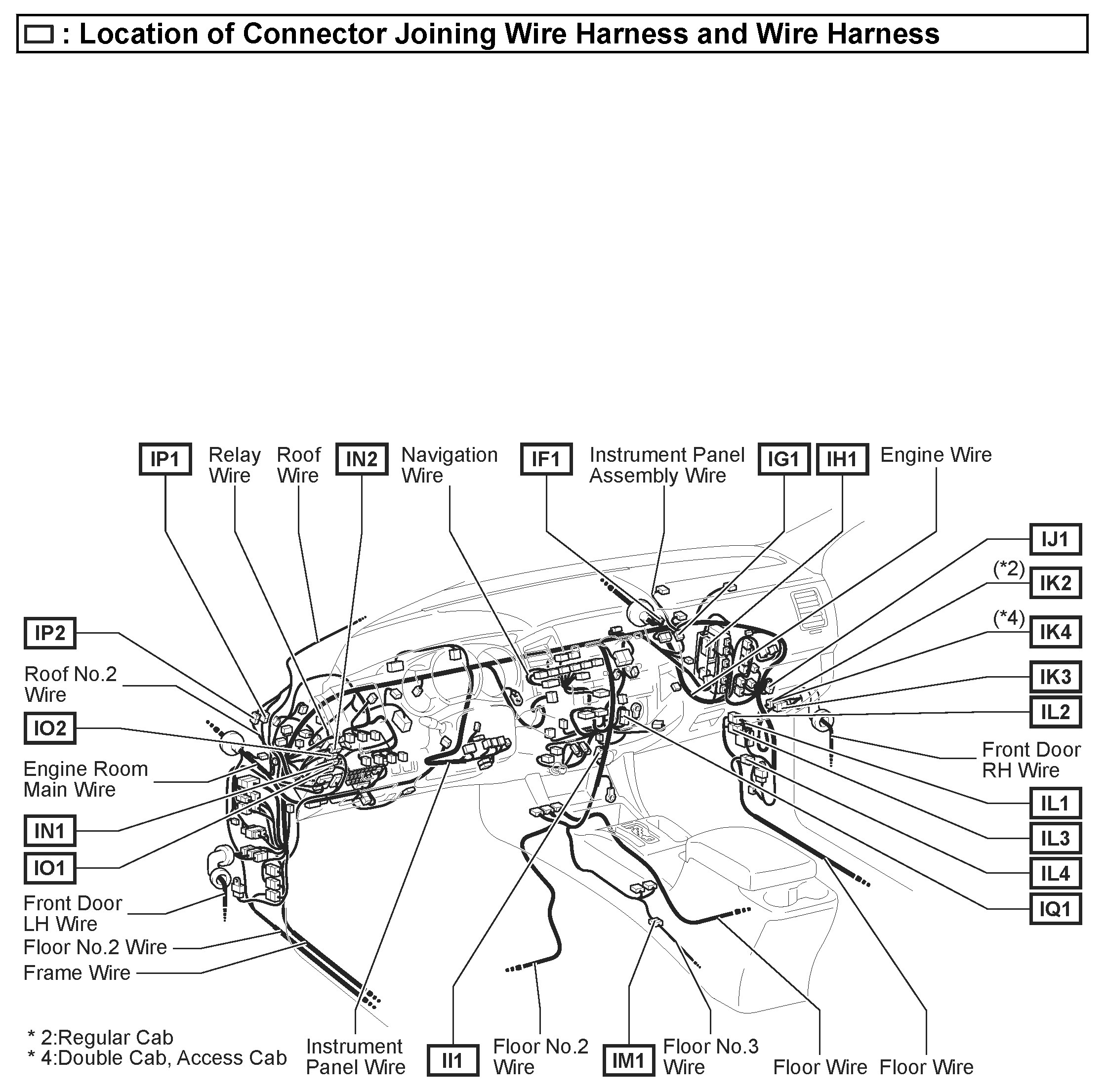

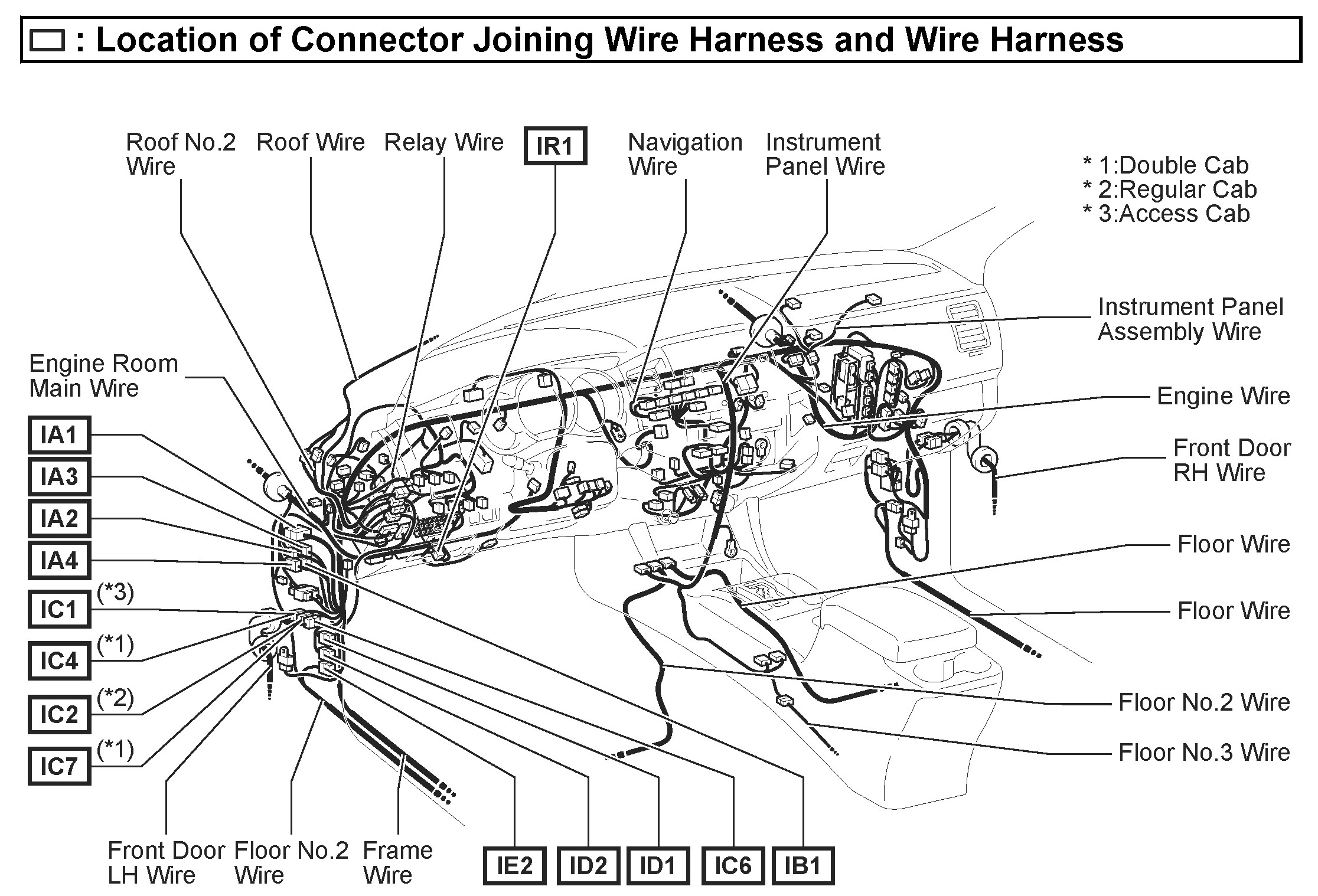

58 - IA1-IR1:

59 - IF1-IQ1:

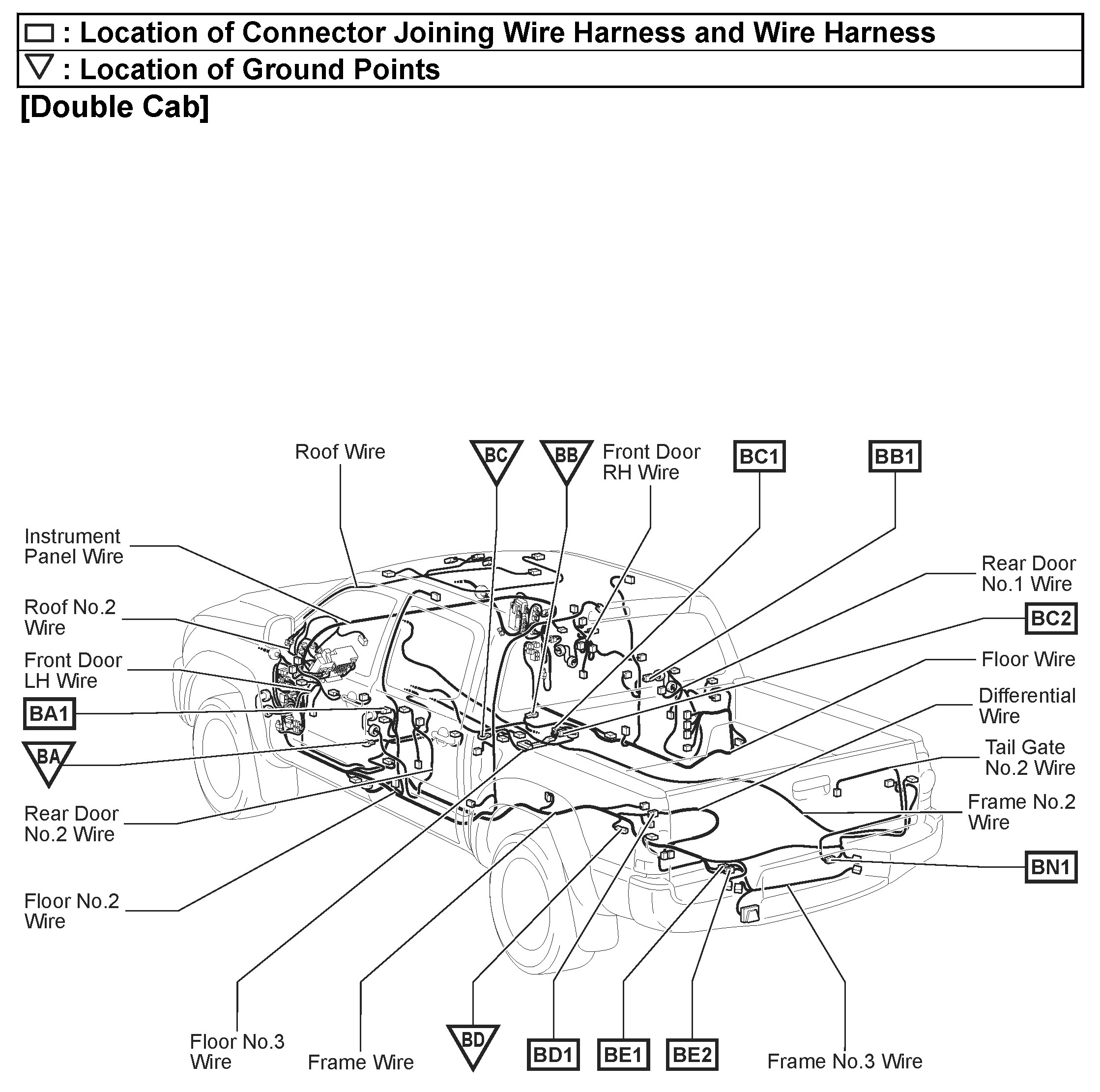

Double Cab

60 - BA-BD, BA1-BN1:

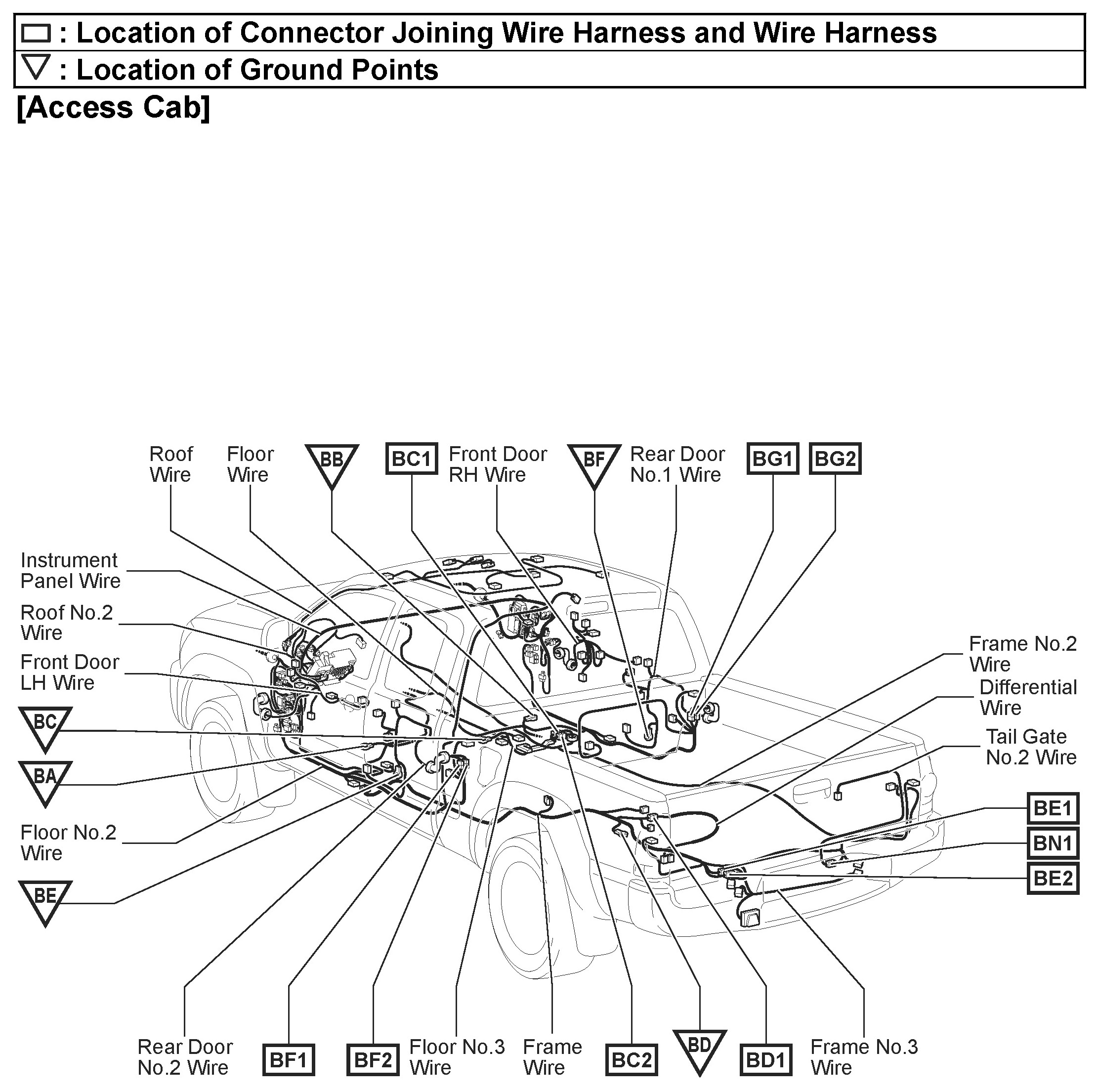

Access Cab

61 - BA-BF, BC1-BN1:

Regular Cab

62 - BA-BD:

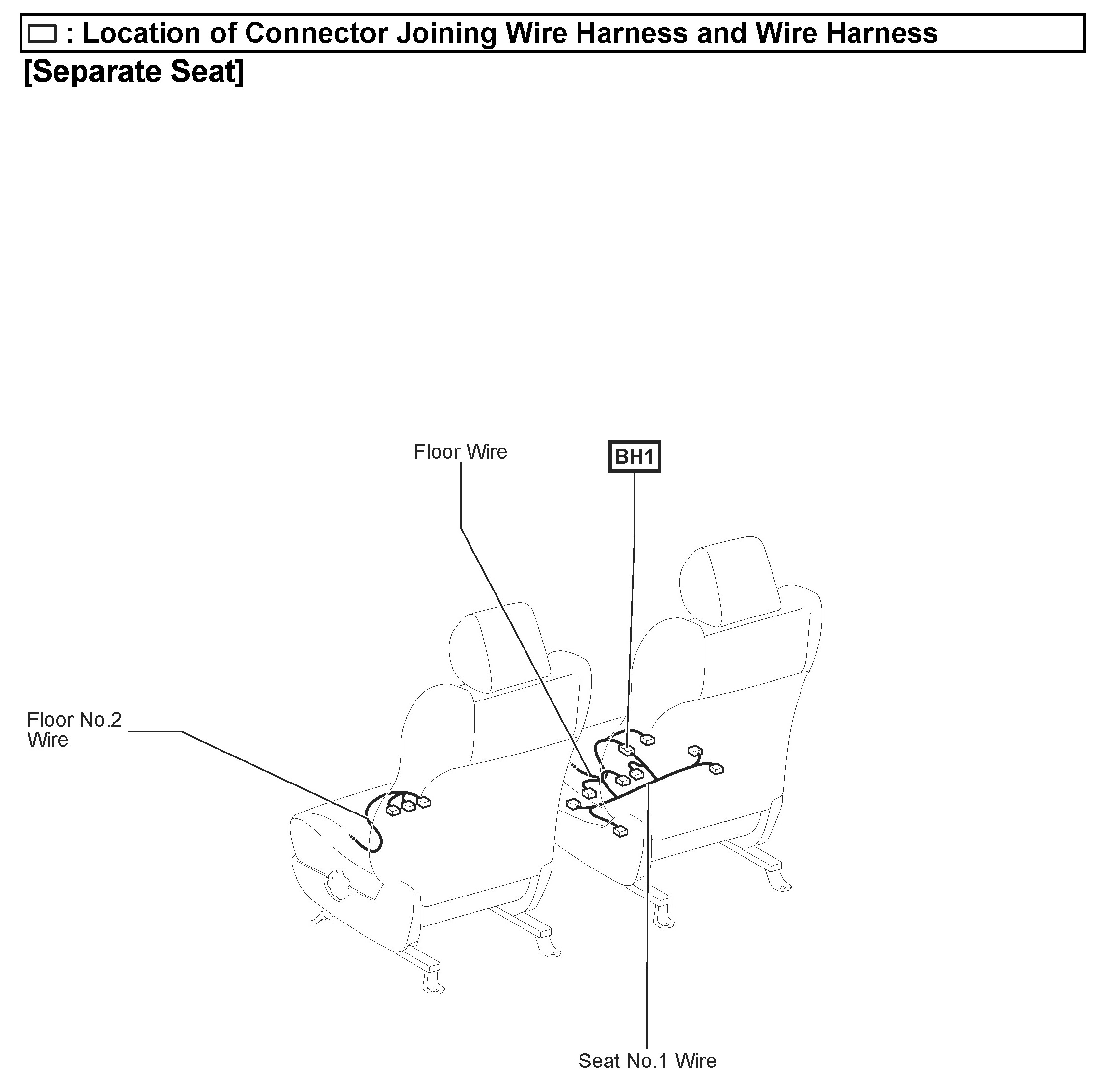

Separate Seat

64 - BH1:

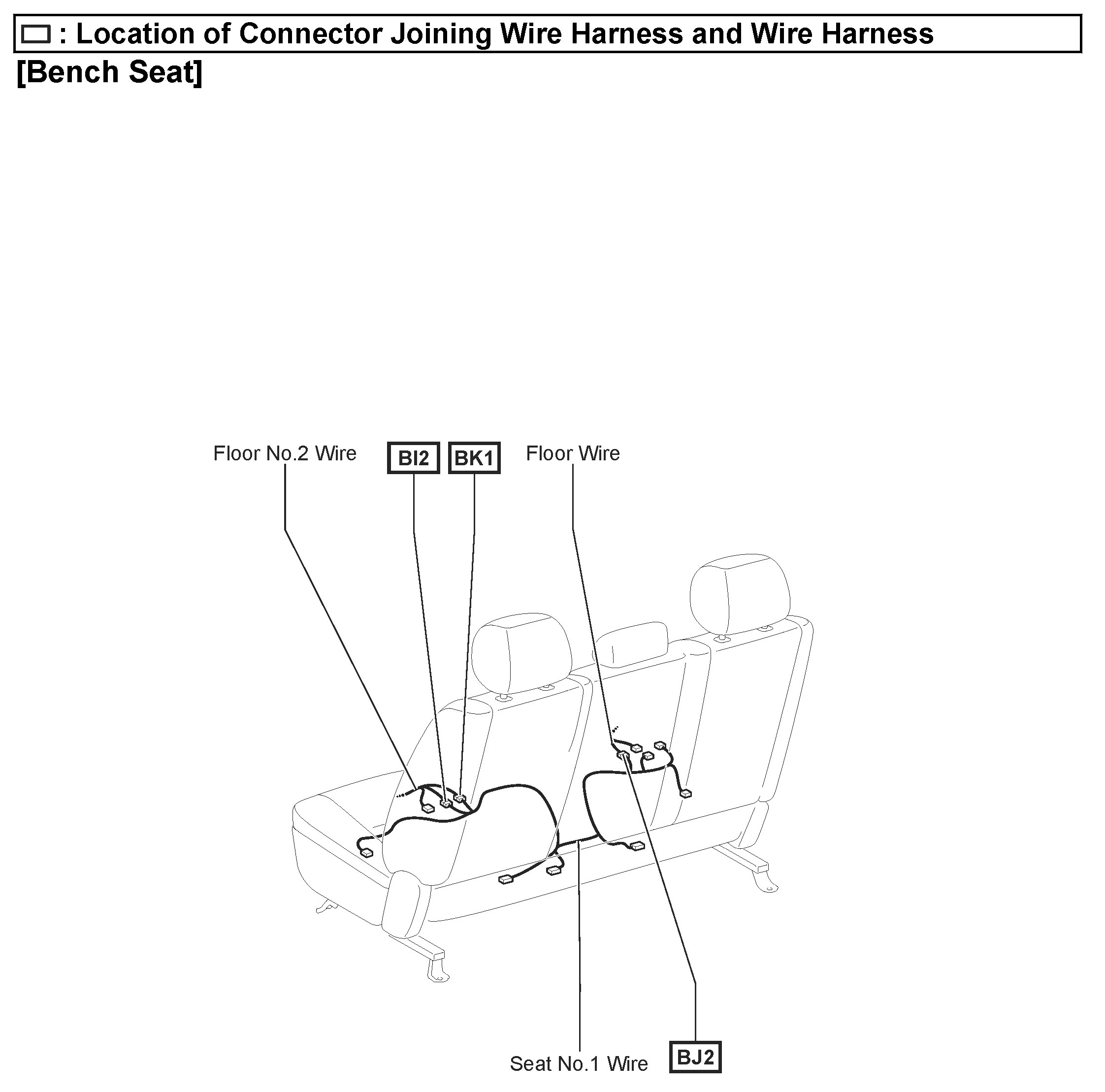

Bench Seat

65 - BI2-BK1:
