Emission Control System (w/ Secondary Air Injection System)

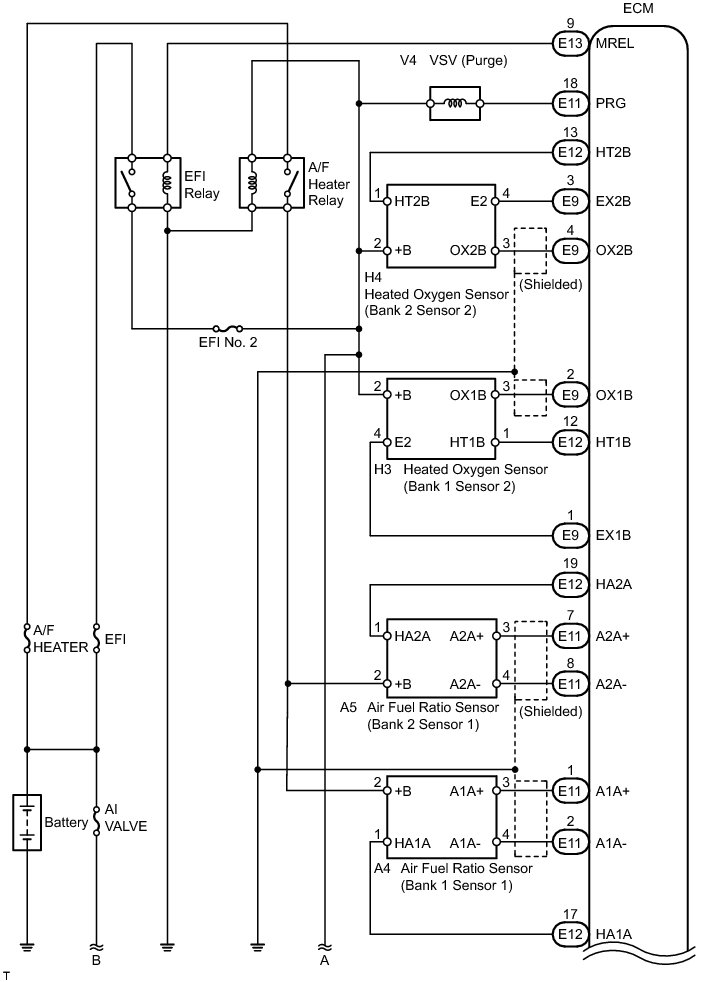

1GR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM (w/ Secondary Air Injection System): SYSTEM DIAGRAM
