Wheel Alignment Specifications, 2WD
Wheel Alignment Specifications, 2WD
Wheel Alignment Specifications
Vehicle Height:
Camber, Caster And Steering Axis Inclination:
Toe-in:

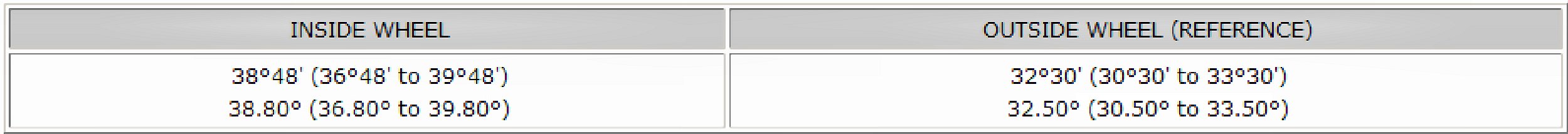

Wheel Turning Angle:
