Exhaust Manifold

Bank 2 4WD and Pre-runner

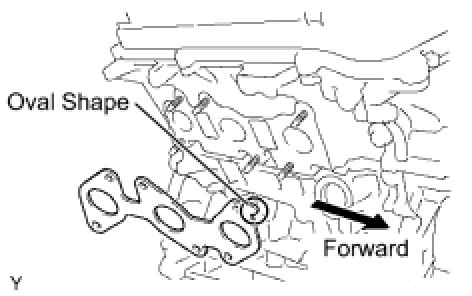

EXHAUST MANIFOLD SUB-ASSEMBLY LH






Install the exhaust manifold with the 6 nuts. Tighten the nuts uniformly in several steps.

Torque 21 Nm (214 kgf-cm, 16 ft-lbf)

Bank 1 4WD and Pre-runner

EXHAUST MANIFOLD SUB-ASSEMBLY RH






Install the exhaust manifold with the 6 nuts. Tighten the nuts uniformly in several steps.


Torque 21 Nm (214 kgf-cm, 16 ft-lbf)
