Flex Plate

DRIVE PLATE & RING GEAR SUB-ASSEMBLY (for Automatic Transmission)

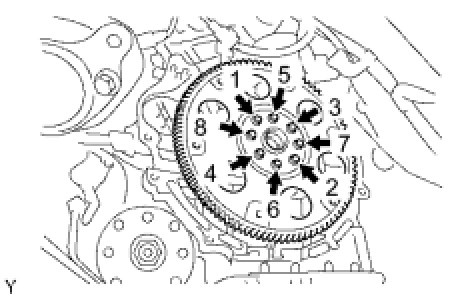

Uniformly install and tighten the 8 mounting bolts in the sequence shown in the illustration.

Torque 83 Nm (846 kgf-cm, 61 ft-lbf)
