Seat Belt Systems
SERVICE SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

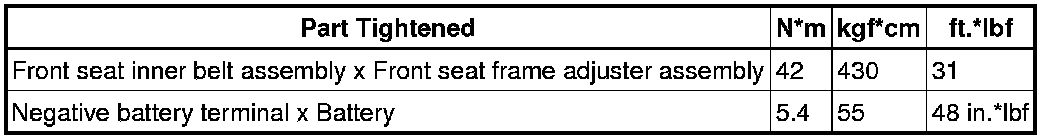

FRONT SEAT INNER BELT ASSEMBLY (for Separate Seat Type):

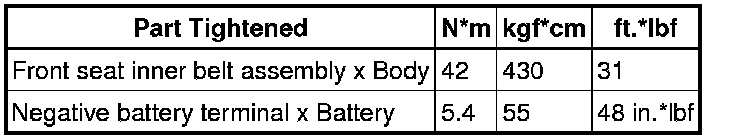

FRONT SEAT INNER BELT ASSEMBLY (for Bench Seat Type):

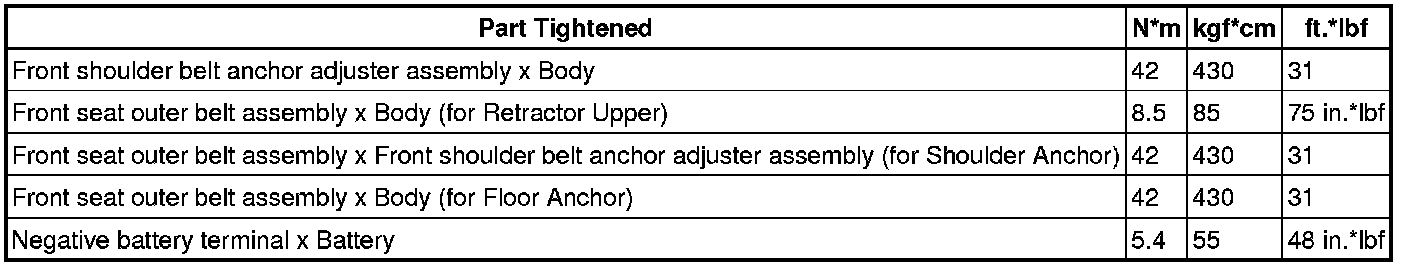

FRONT SEAT OUTER BELT ASSEMBLY (for Double Cab):

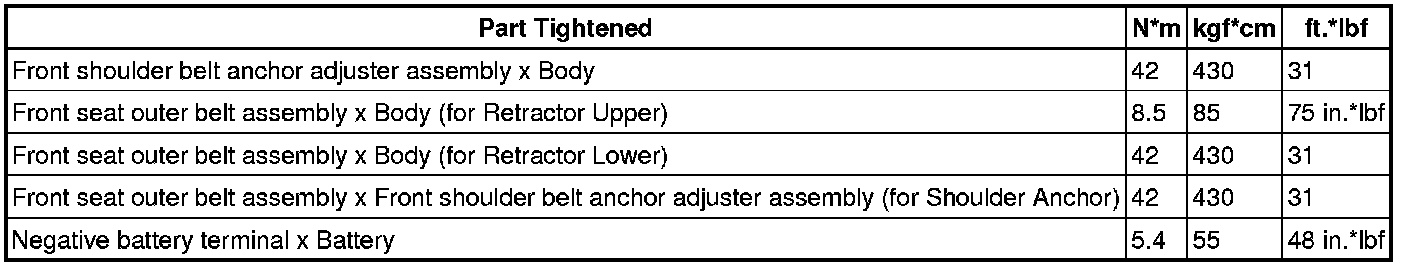

FRONT SEAT OUTER BELT ASSEMBLY (for Regular Cab):

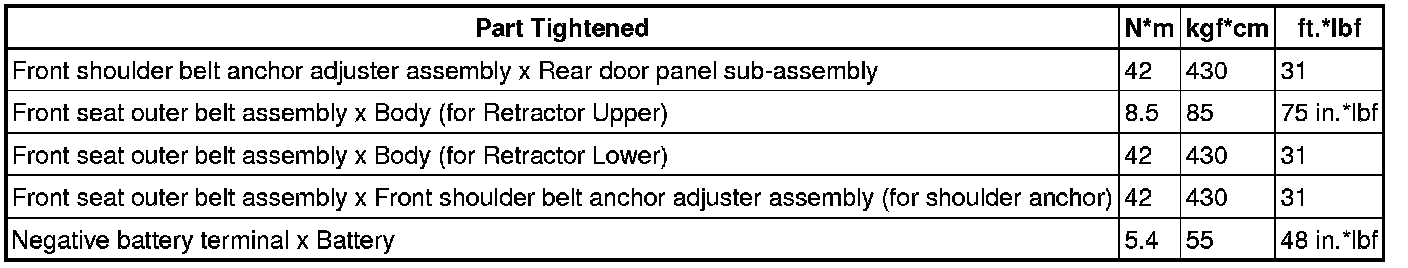

FRONT SEAT OUTER BELT ASSEMBLY (for Access Cab):
REAR SEAT INNER ASSEMBLY (for Double Cab):
REAR SEAT INNER ASSEMBLY (for Access Cab):

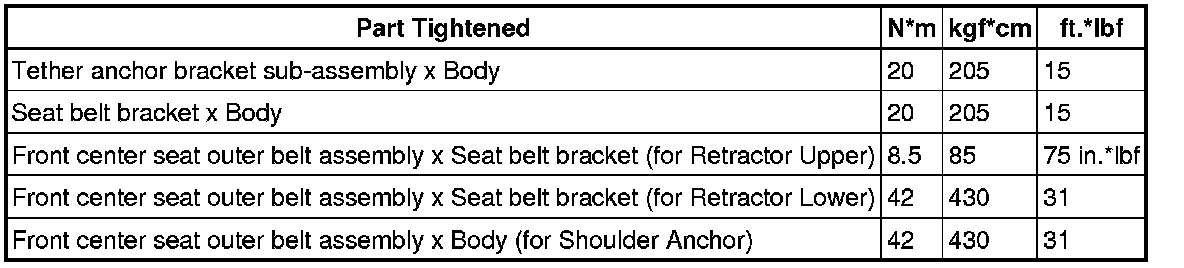

FRONT CENTER SEAT OUTER ASSEMBLY (for Bench Seat Type):

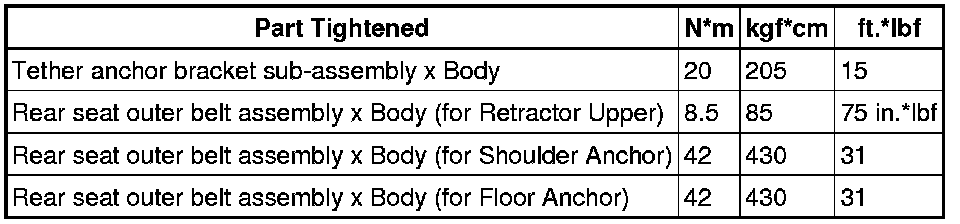

REAR SEAT OUTER BELT ASSEMBLY (for Double Cab):
REAR SEAT OUTER BELT ASSEMBLY (for Access Cab):
