30 - 32 - Driver Side J/B Inner Circuit

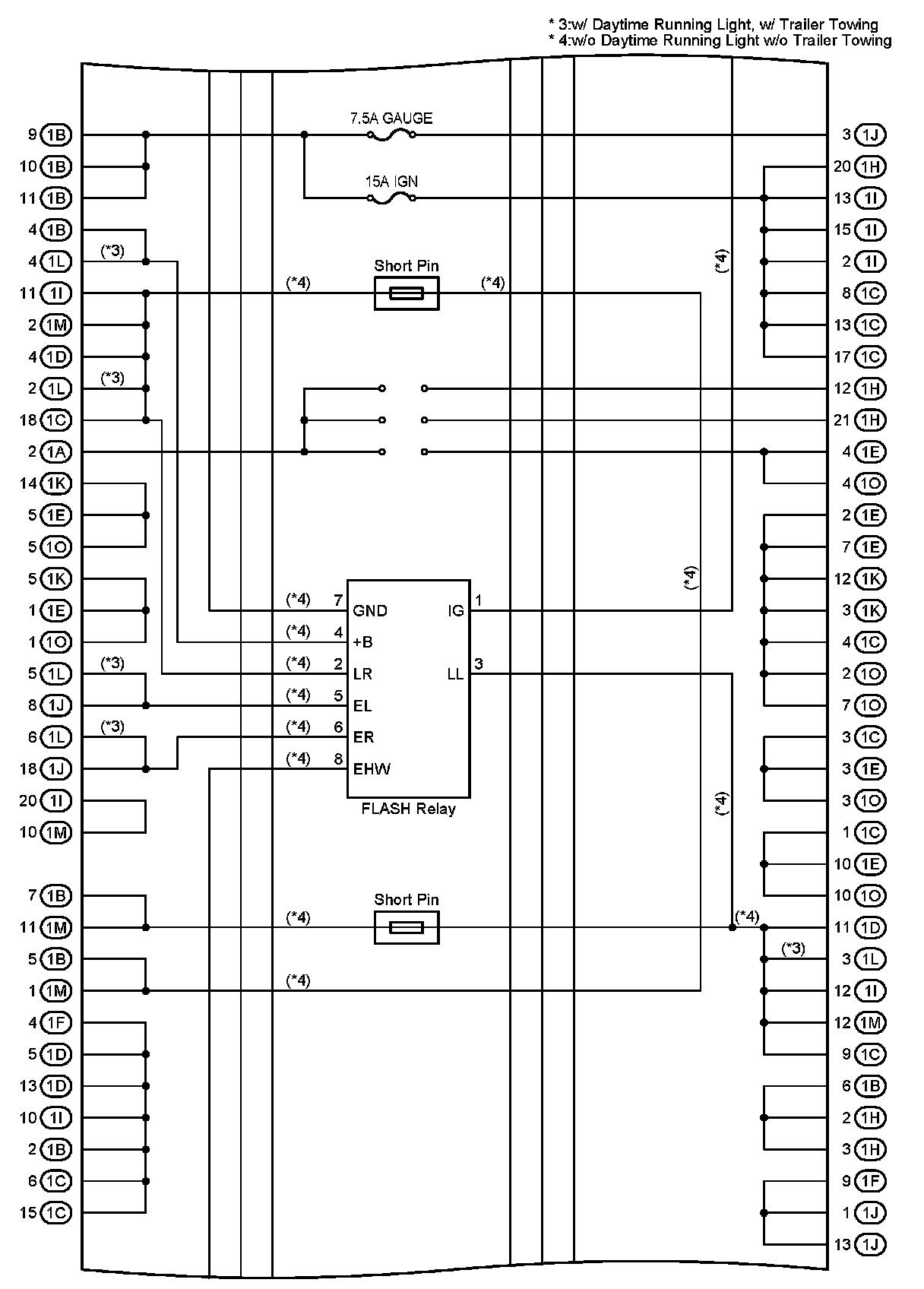

30 - Driver Side J/B Inner Circuit:

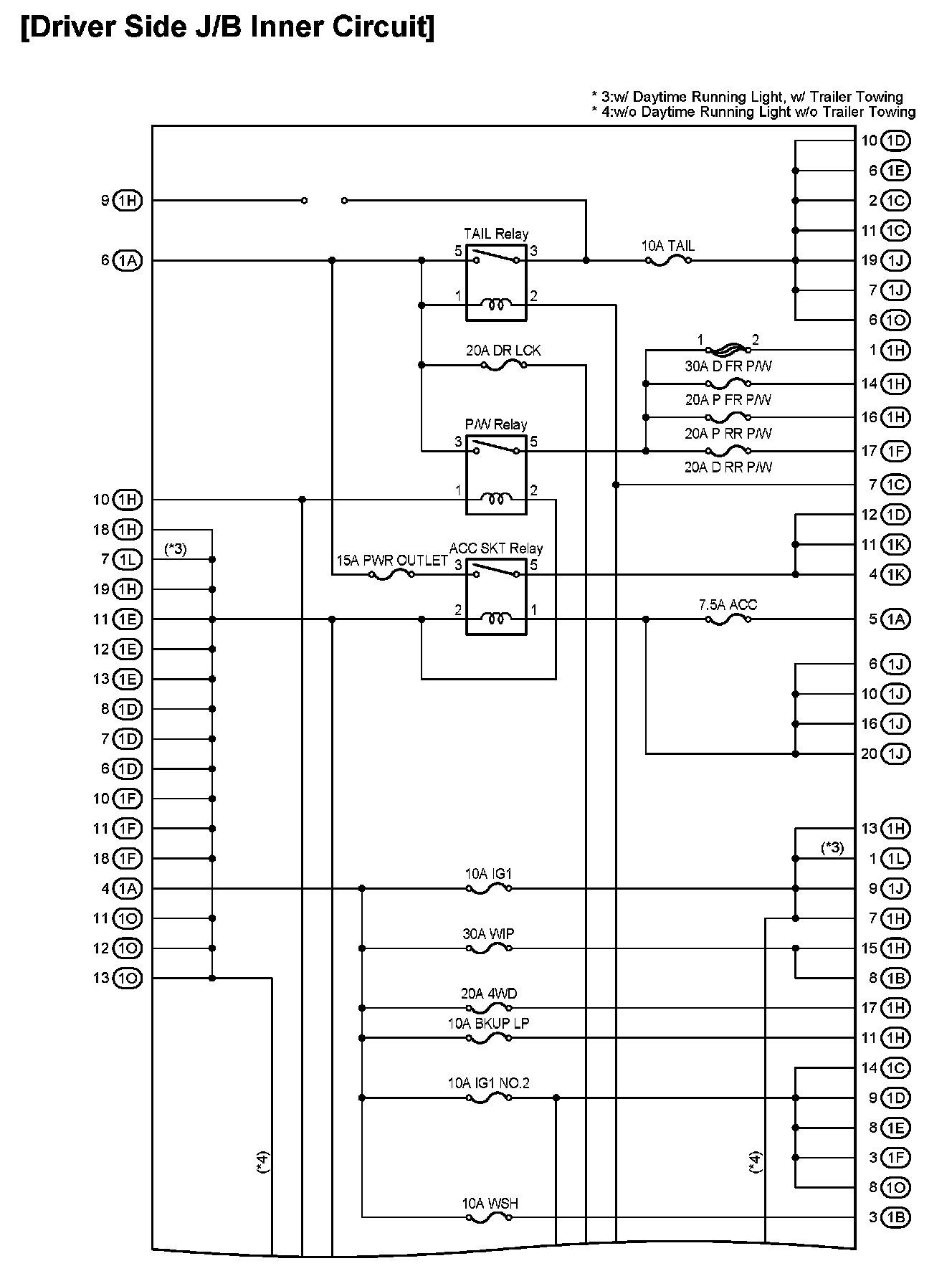

31 - Driver Side J/B Inner Circuit:

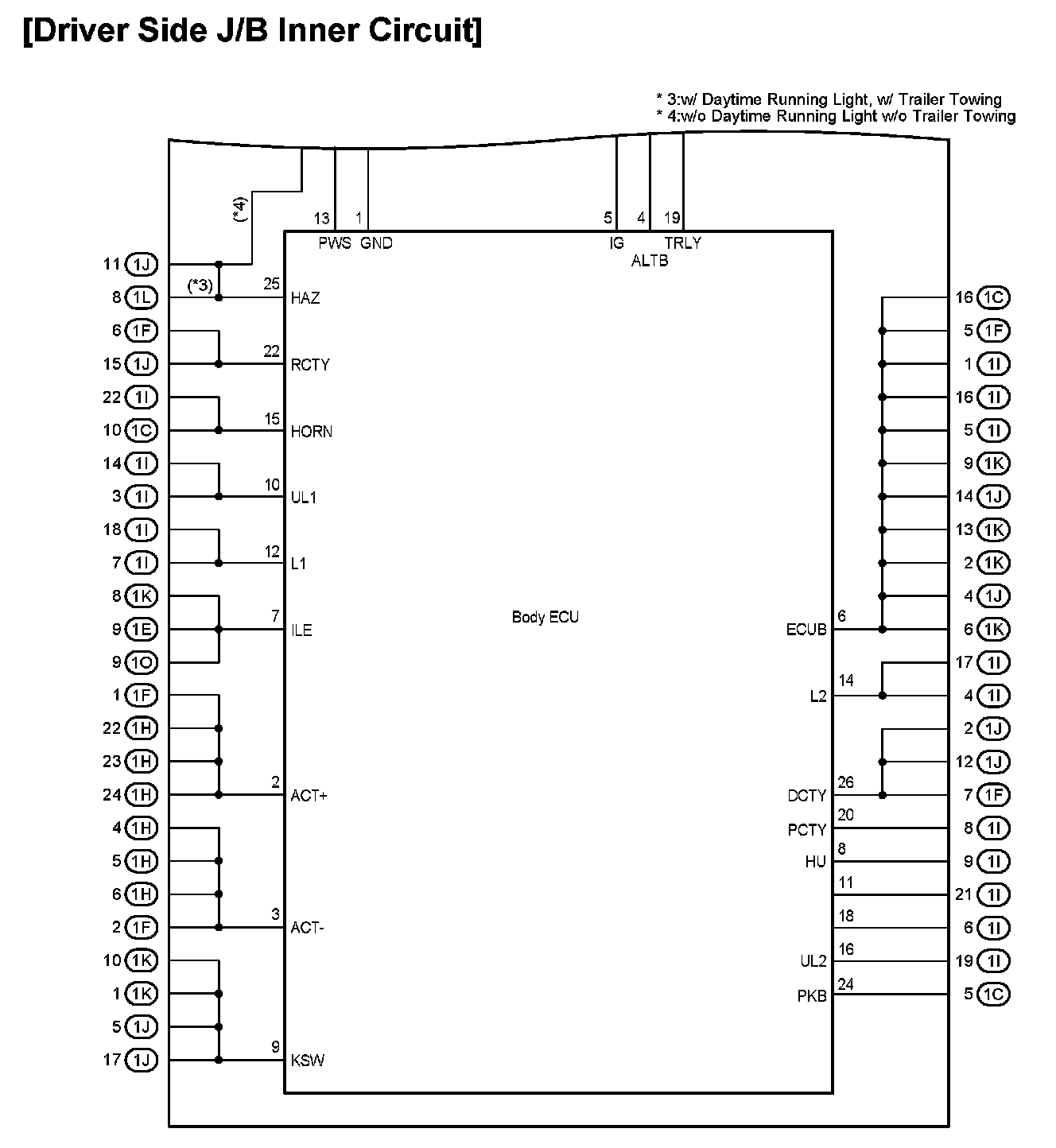

32 - Driver Side J/B Inner Circuit:
