Air Conditioning Switch: Testing and Inspection

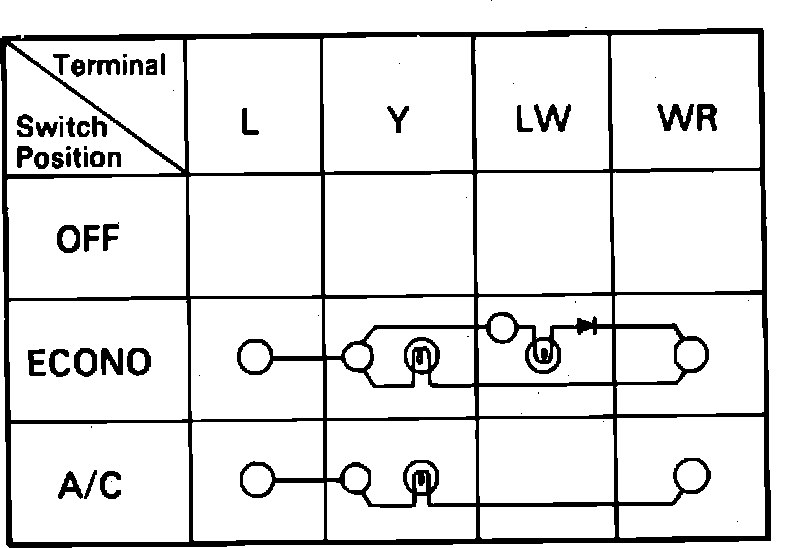

Fig. 12 A/C Switch Continuity Test:

1. Disconnect electrical connector from A/C switch.
2. Using an ohmmeter, check continuity between specified switch position, Fig. 12 and A/C switch terminals.
3. If no continuity is indicated, replace A/C switch.
