A/T - Production Changes
REFERENCE TRANSMISSION AND CLUTCH NUMBER 001 DATE 1-28-83 MODEL AL12Oil Strainer Openings:
This bulletin has been prepared to advise you of changes made to the Tercel 3 speed (A55) automatic transmission.
1. The oil strainer openings have been modified.

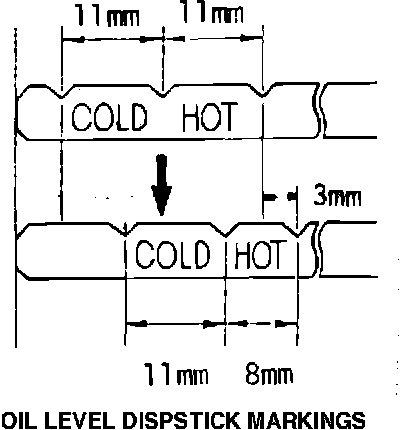

Oil Level Dipstick Markings:
2. The oil level dipstick markings have been modified.
Note: A/T fluid capacity remains unchanged.

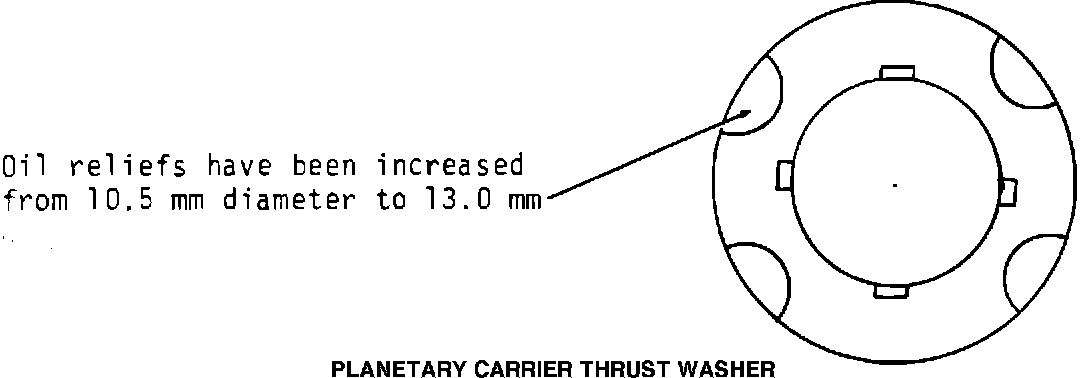

Planetary Carrier Thrust Washer:
3. The planetary carrier thrust washer shape has been slightly modified.
PRODUCTION EFFECTIVE:
Items 1, 2, 3
From Frame Number Production Date
JT2AL12**C*412430 March 1982
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
35303-16010 35303-16020 Strainer sub-assy, oil
35103-16010 35103-16020 Gauge sub-assy, transmission
oil level
35738-16010 35738-16011 Washer, planetary carrier
thrust, No. 2
35000-16011 35000-16012 Transmission assembly
NOTE: All new parts are interchangeable with previous parts. The oil strainer sub-assembly or transmission assembly is interchangeable only with the new oil level gauge.
