Cooling System - Fan Improvements
83toyota4REFERENCE: ELECTRICAL
NUMBER: 004
DATE: 6-24-83
MODEL: AL3#
TITLE COOLING FAN IMPROVEMENTS

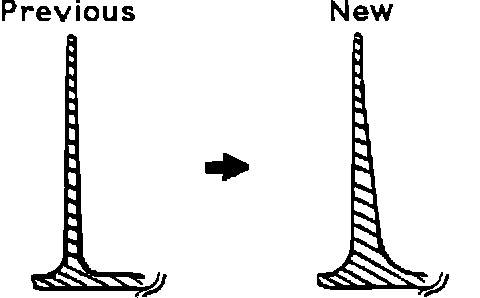

The thickness of the plastic fan blade of the radiator cooling fan has been increased to reduce noise during operation. Due to this change, the rubber mounting of the fan shroud has been discontinued..
PRODUCTION EFFECTIVE:
From Frame Number Production Date
JT2AL3#**D0088905 (2WD) January 1983
JT2AL3#**D0110284 (2WD) March 1983
JT2AL3#**D0046356 (4WD) March 1983
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
16361-15030 16361-15031 Fan, cooling (2WD
with M/T)
16711-15080 16711-15081 Shroud, cooling fan
16361-15040 16361-15041 Fan, cooling (4WD or
A/T)
16711-15090 Not Changed Shroud, cooling fan
NOTE: The new parts are interchangeable with the previous parts.
