Engine - Oil Pan Gasket and Strainer Modifications
83toyota3REFERENCE: ENGINE
NUMBER: 003
DATE: 2-4-83
MODEL: AL
TITLE AL ENGINE OIL PAN GASKET AND STRAINER MODIFICATIONS
For parts standardization, the following parts have been modified as shown below.

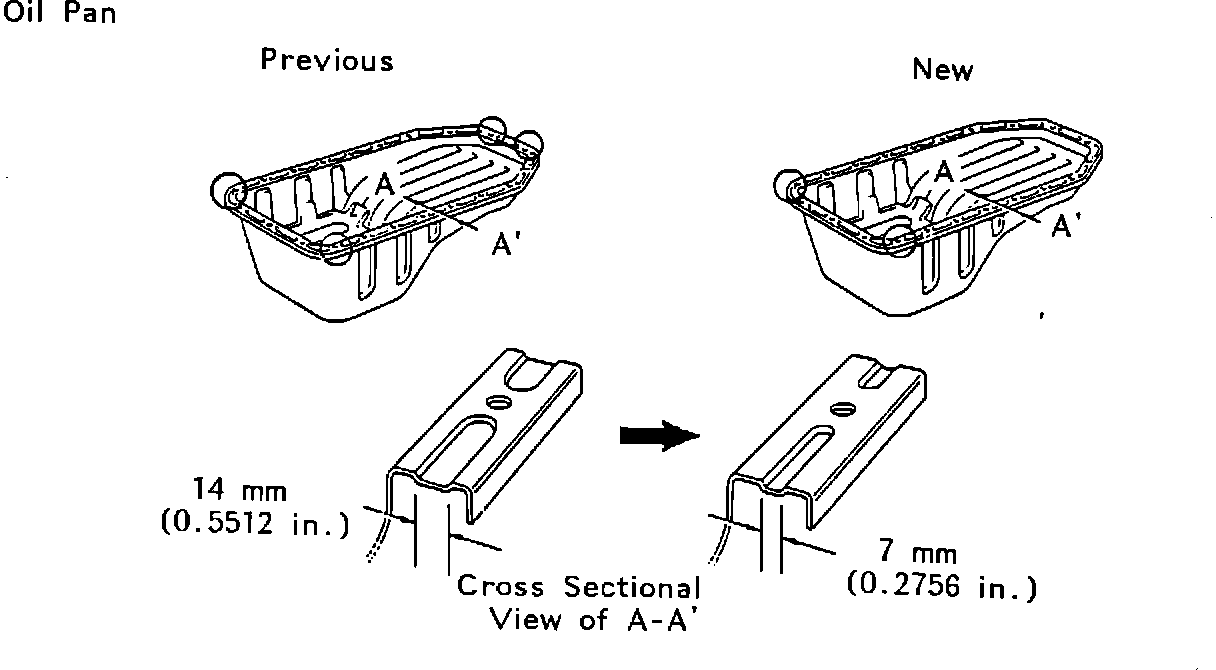

1. Engine Oil Pan Gasket
The engine oil pan gasket has been changed in material from a solid rubber type to a liquid gasket type sealant. Due to this change, several related parts have been modified slightly in shape.
The oil pan attaching bolts and nuts have been changed as follows:
Previous: Seventeen 15 mm long bolts and four nuts circled in the left-hand illustration were used.
New: Nineteen 14 mm long bolts and two nuts circled in the right-hand illustration are used.

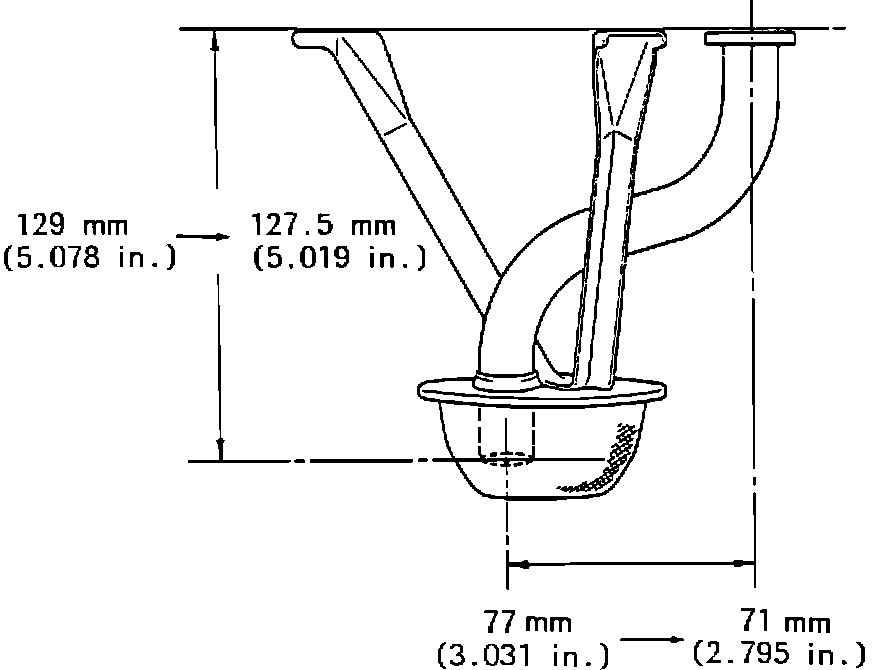

2. Oil Strainer
The oil strainer has been modified slightly in shape.
PRODUCTION EFFECTIVE:
From Engine Number Production Date
3A-5088360 April 1982
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
* 12101-19045 12101-15030 Pan sub-assy, oil
12151-15010 Discontinued Gasket, oil pan
* 90119-06058 90119-06205 Bolt, w/washer (17-19)
92122-60612 90116-06022 Bolt, stud (4-2)
90179-06024 90179-06045 Nut (4 - 2)
* 15104-19015 15104-15060 Strainer sub-assy, oil
* - 08826-00080 Packing, Seal No. 102 (100 g)
*These parts are interchangeable as a set.
