M/T - Clutch System Production Changes
REFERENCE TRANSMISSION AND CLUTCHNUMBER 003
DATE 2-4-83
MODEL AL12
Clutch System:
This bulletin has been prepared to advise you of changes made to the Tercel clutch system.
1. The bolt circles of the clutch cover and flywheel have been increased from 225 mm (8.858 in.) to 230 mm (9.055 in.)

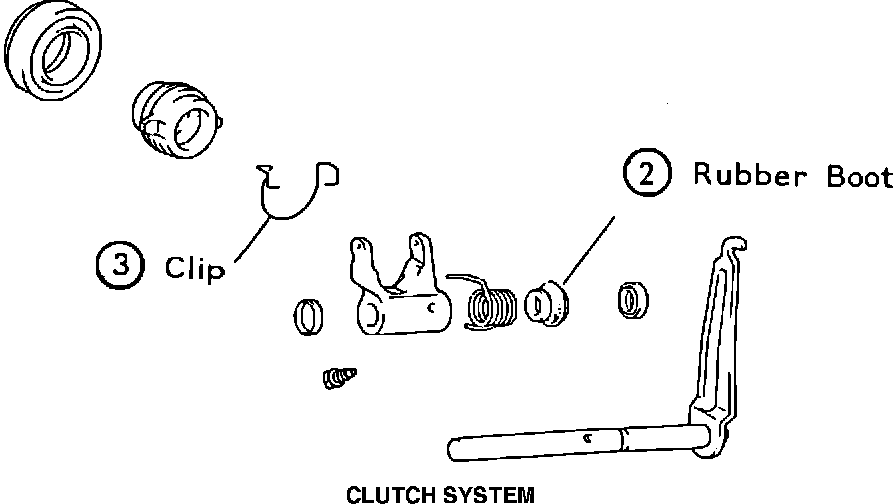

2. A protective rubber boot has been added to the clutch release fork shaft.
3. The retention of the clutch release bearing hub to the clutch release fork has been changed from double clips to a single clip.
PRODUCTION EFFECTIVE:
Item 1 Flywheel and Clutch Cover
From Engine Number Production Date
3A - 1313689 May 1982
From Frame Number Production Date
JT2AL12**C*436000 May 1982
Item 2, 3 Single Clip and Rubber Boot
From Transmission Number Transmission Production Date
20400247 April 1982
From Frame Number Production Date
JT2AL12**C*420200 April 1982
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
* 13405-19055 13405-19105 Flywheel, sub-assy
* 31210-12063 31210-16030 Cover assembly, clutch
** 31233-16010 31233-16011 Fork, clutch release
** 31207-16020 31207-16040 Lever, clutch release
Fork
** New 31249-16010 Boot, clutch release
fork shaft
** 31231-16020 31231-16030 Hub, clutch release
bearing
** 31232-16010 31232-16020 Clip, clutch release
bearing hub
Note: Interchangable as a set of similar asterisks only.
