IMPROVED SERVICEABILITY OF STEERING WHEEL HORN BUTTON
For easier removal and installation of the horn button, the fastener has been changed from a screw type to a spring clip type..
Construction Of New Horn Button
FIGURE 1:
Removal and Assembly of Horn Button
Removal:

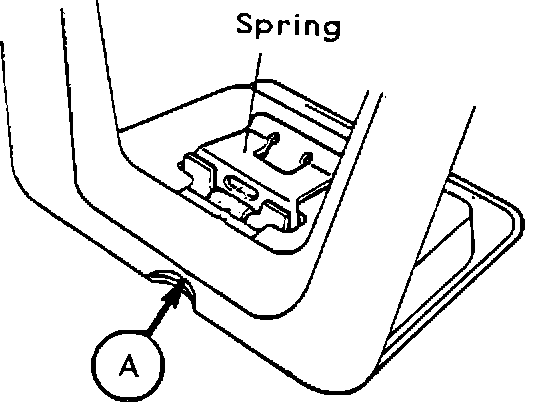

1. Remove screw for the spring by placing a screwdriver as shown with arrow "A" in Figure 1.
FIGURE 2:
2. Remove horn button assembly together with the spring by sliding it to the direction of "B" in Figure 2.
FIGURE 2:

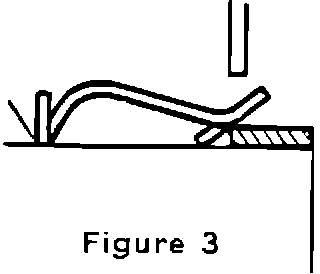

FIGURE 3:
Assembly:
1. Install the spring to the steering wheel, then place the horn button assembly as shown in Figure 2 and Figure 3.

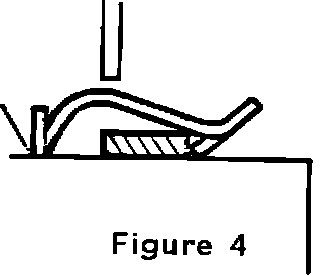

FIGURE 4:
2. Tap the horn button assembly from direction "C" until it is securely installed by spring a and b as shown in Figure 4.
PRODUCTION EFFECTIVE:
From Frame Number Production Date
JT2AL3#**D0171523 July 1983
JT2AL3#**D3536977 July 1983
JT2AL3#**D0073485 July 1983
JT2KP61**E6649330 August 1983
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name Models
45100-16100-01 45100-16101-01 Wheel assy, steering KP61
45100-16100-02 45100-16101-02 Wheel assy, steering AL3#, SR5
45100-16100-03 45100-16101-03 Wheel assy, steering AL3#, SR5
45100-16100-06 45100-16101-06 Wheel assy, steering KP61, AL3#, SR5
45100-16110-02 45100-12430-06 Wheel assy, steering AL3#, STD DLX
45100-16110-03 45100-12430-12 Wheel assy, steering AL3#, STD DLX
45100-16110-06 45100-12430-13 Wheel assy, steering AL3#, STD DLX
45130-16040-01 45130-12280-01 Button assy, horn KP61
45130-16040-02 45130-12280-12 Button assy, horn AL3#, SR5
45130-16040-03 45130-12280-13 Button assy, horn Ai 3#, SR5
45130-16040-06 45130-12280-14 Button assy, horn KP61, AL3#, SR5
45130-16050-02 45130-12270-12 Button assy, horn AL3#, STD DLX
45130-16050-03 45130-12270-13 Button assy, horn AL3#, STD DLX
45130-16050-06 45130-12270-06 Button assy, horn AL3#, STD DLX
45176-30050 45176-22050 Ring, horn contact KP61, AL3#
45136-16030 45136-12140 Plate, horn button KP61, AL3#, SR5
contact
45136-16040 45136-12130 Plate, horn button AL3#, STD DLX
contact
45128-12020 Spring, steering wheel pad set
93315-15020 Screw with washer
NOTE: The new parts are not interchangeable with the previous parts.
