Wipers - Arm And Blade Modified For Better Performance
REFERENCE ELECTRICALNUMBER 011 (REVISED)
DATE 5-4-84
MODEL KP61, AL3#, RA65/65,
MA67, MX62/63, FJ60,
To improve wiper arm spring tension has been increased as follows:
Wiper Arm Pressure
The passenger side wiper arm spring tension has been increased as follows:
Passenger side 12.7 g/cm (32.3 g/in.) - 14.0 g/cm (35.6 g/in..)
Driver side Not changed
Wiper Blade Holder
The backing of the wiper blade holder has been modified in its free shape from an upward arch to a downward arch for better pressure distribution on the rubber blade.

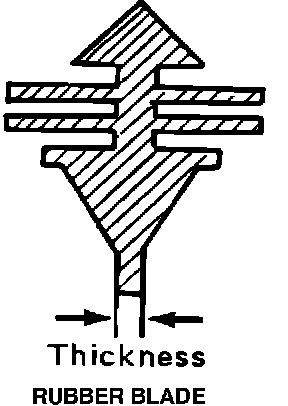

Rubber Blade:
Rubber Blade
The rubber blade hardness and lip thickness have been increased for better performance as shown below.
THICKNESS
Previous New
mm in. mm in.
AL3# 0.8 0.032 0.9 0.035
KP61 0.7 0.028 0.9 0.035
MA67 0.7 0.028 0.9 0.035
RA64/65 0.8 0.032 0.9 0.035
MX62/63 0.8 0.032 0.9 0.035
FJ60 0.8 0.032 0.9 0.035
PRODUCTION EFFECTIVE:
From Frame Number Production Date
JT2AL3#**E3541982 August 1983
JT2AL3#**E0J85642 August 1983
JT2AL3#**E0081340 August 1983
JT2KP61**E0654023 November 1983
JT2KP61**E0030817 November 1983
JT2MA67**D0080256 August 1983
JT2RA64**D0031133 August 1983
JT2RA64**D6185272 August 1983
JT2RA65**D0003441 August 1983
JT2RA65**D4026047 August 1983
JT2MX62**D0086172 June 1983
JT2MX63**D0031728 June 1983
JT3FJ60**E0082093 September 1983
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name Model
85221-22030 85221-10050 Rubber, wiper blade KP61
85220-10140 Not Changed Blade assy, wiper KP61
(driver side)
85220-10140 Not Changed Blade assy, wiper KP61
(passenger side)
85190-10340 Not Changed Arm assy, windshield KP61
(driver side)
85210-10020 Not Changed Arm assy, windshield KP61
(passenger side)
85221-12120 85221-30100 Rubber, wiper blade AL3#
85220-16140 85220-16270 Blade Assy, wiper AL3#
(driver side
85220-16150 85220-16340 Blade Assy, wiper AL3#
(passenger side)
85210-16020 Not Changed Arm assy, windshield, AL3#
wiper (passenger side)
85190-16100 Not Changed Arm assy, windshield AL3#
(driver side)
PART NUMBER INFORMATION: (Cont'd)
Previous Part Number New Part Number Part Name Model
85221-14200 85221-12220 Rubber, wiper blade MA67
(driver side)
85221-12120 85221-30100 Rubber, wiper blade MA67
(passenger side)
85220-14350 85220-14390 Blade assy, wiper MA67
(driver side)
85060-14410 85220-14360 Blade assy, wiper MA67
(passenger side)
85210-14140 85210-14161 Arm assy, windshield MA67
(driver side)
85060-14410 85190-14411 Arm assy, windshield MA67
(passenger side)
85221-12120 85221-30100 Rubber, wiper blade RA64/65
85220-16150 85220-16290 Blade assy, wiper RA64/65
(driver side)
85220-16140 85220-16270 Blade assy, wiper RA64/65
(passenger side)
85210-14111 Not Changed Arm assy, windshield RA64/65
(driver side)
85190-14371 Not Changed Arm assy, windshield RA64/65
(passenger side)
85221-12120 85221-30100 Rubber, wiper blade MX62/63
85220-16150 85220-16290 Blade assy, wiper MX62/63
(driver side)
85220-16140 85220-16270 Blade assy, wiper MX62/63
(passenger side)
85210-22160 Not Changed Arm assy, windshield MX62/63
(driver side)
85190-22460 Not Changed Arm assy, windshield MX62/63
(passenger side)
85221-12120 85221-30100 Rubber, wiper blade FJ60
85220-16290 85220-16340 Blade assy, wiper FJ60
(driver side)
85220-16140 85220-16270 Blade assy, wiper FJ60
(passenger side)
85210-90A01 Not Changed Arm assy, windshield FJ60
(driver side)
85190-90A02 Not Changed Arm assy, windshield FJ60
(passenger side)
NOTE: The new parts are interchangeable with the previous parts.
