A/C - Condenser Fan Motor Intermittent Inoperative
83toyota4REFERENCE: ELECTRICAL
NUMBER: 009
DATE: 10-14-83
MODEL: AL3#
TITLE TERCEL A/C CONDENSER FAN MOTOR
The A/C condenser fan motor has been modified to improve reliability.. The changes were made to eliminate an intermittent "no-run" condition which caused excessive A/C system pressure and resulted in an open fuse plug at the receiver/dryer.
The condition may exist in a small percentage of the fan motors found on 1983 Tercels with factory, port, or dealer installed A/C. If a problem is suspected, the instructions below will aid in diagnosis of this condition.

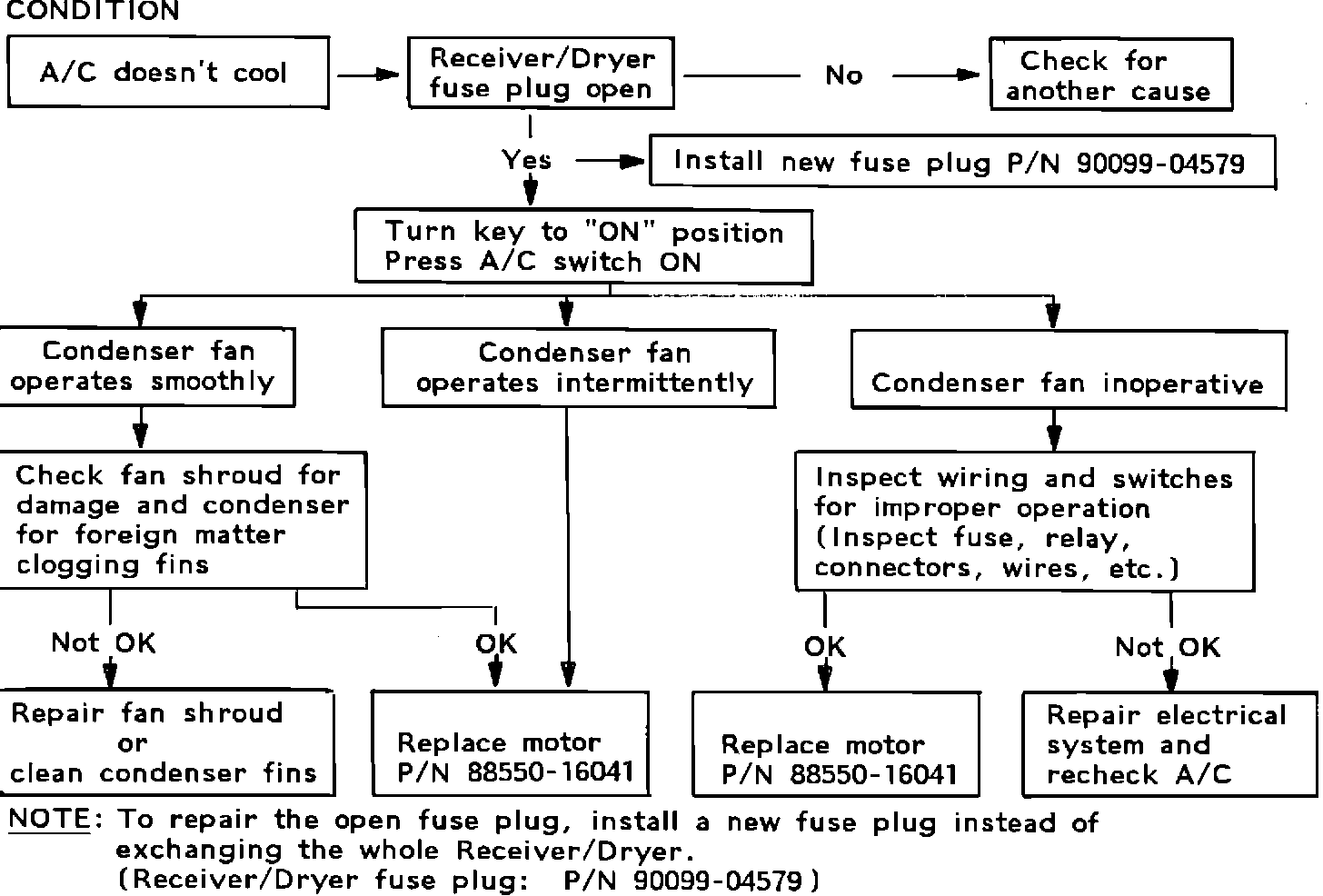

INSPECTION OF A/C OPERATION
