A/T - Rear Engine Mount Reduces Noise In Neutral
REFERENCE TRANSMISSION AND CLUTCHNUMBER 012
DATE 11-30-83
MODEL AL3#

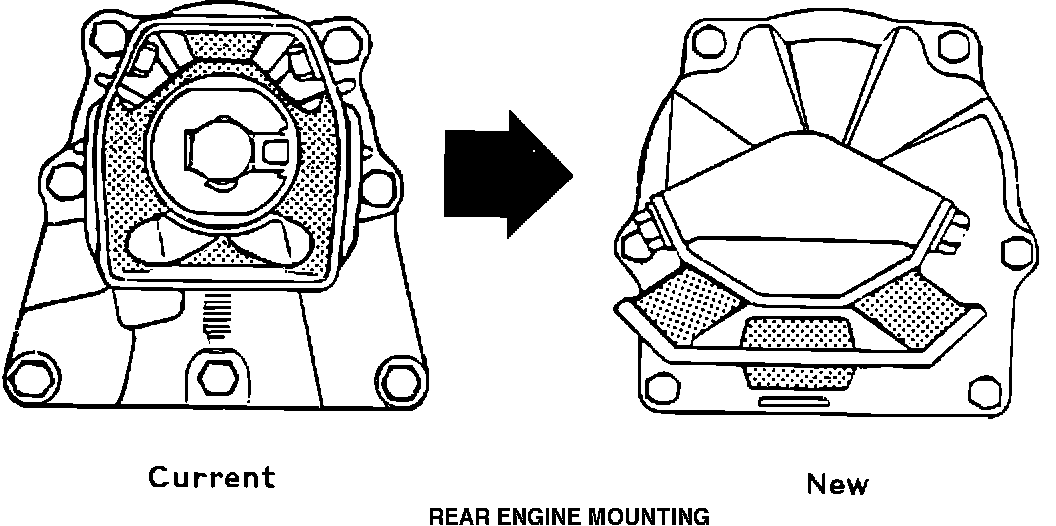

Rear Engine Mounting:
To reduce transmission noise in neutral, the rear engine mount and related parts have been changed.
PRODUCTION EFFECTIVE:
From Frame Number Production Date
JT2AL3#**D0063738 June 1983
JT2AL3#**D3524511 June 1983
JT2AL3#**D0160497 June 1983
JT2AL3#**D3533953 June 1983
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
12371-15031 12371-15050 Insulator, engine mount
rear
91651-40816 Discontinued Bolt, w/washer
91661-41016 Discontinued Bolt, w/washer
94110-51000 Discontinued Nut
94613-11001 Discontinued Washer, plate
90119-08012 Bolt, w/washer
91651-61025 Bolt, w/washer
57209-16060 57209-16080 Member sub-assy engine rear
mount
35000-16020 35000-16021 Transmission assy
35104-16012 35104-16013 Case sub-assy, transmission
35181-16010 35181-16011 Housing, extension
35182-16010 35182-16011 Gasket, extension housing
35735-30010 35735-16010 Ring, planetary output shaft
oil seal
35775-16011 35775-16013 Sleeve, output shaft
04351-16011 04351-16012 Gasket kit, transmission
overhaul
33675-16020 33675-16021 Rod, transmission control
NOTE: The new parts are not interchangeable with the previous parts.
