Condenser Fan Motor Relay: Locations

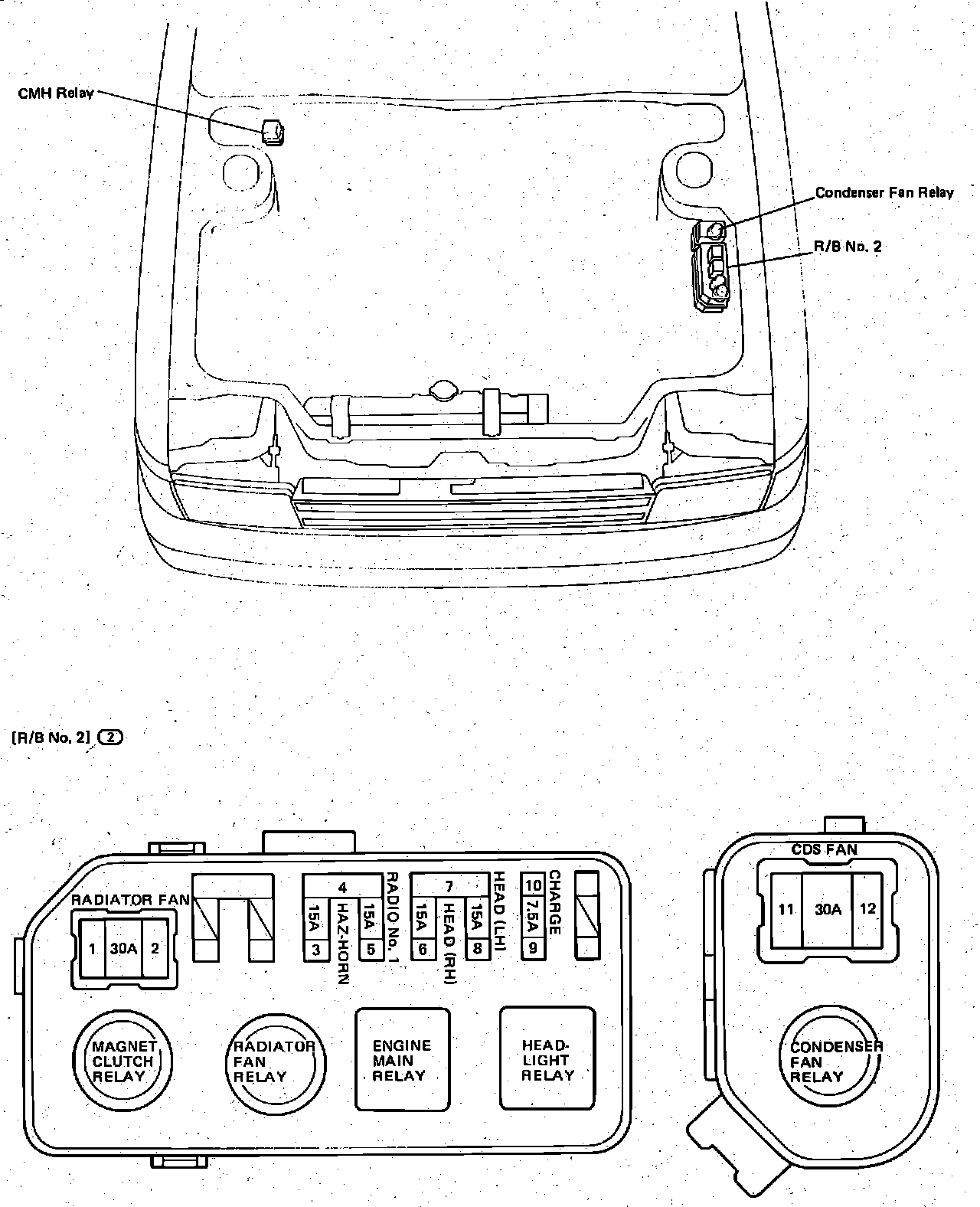

Engine Compartment Relay Locations.:




Front LH Side Of Engine Compartment

Applicable to: 1984-86 Sedan Models
