Brakes - Front Disc Part Standardization

REFERENCE: BRAKES
NUMBER: 004
DATE: 6-8-84
MODEL: AL3#

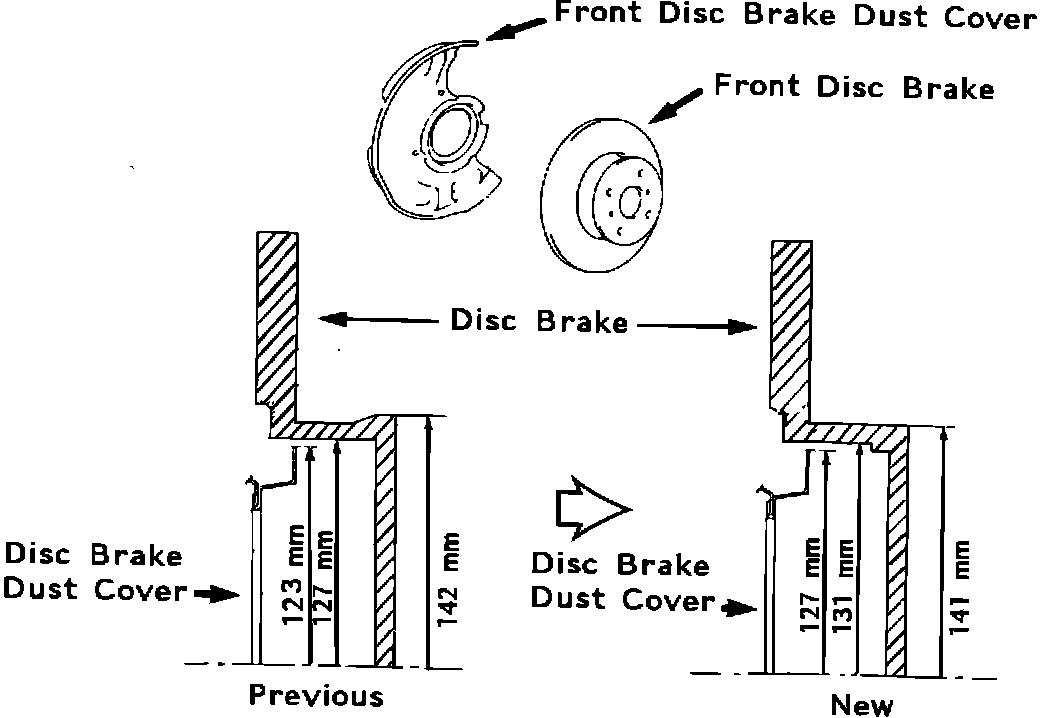

For parts standardization, the front disc brake and front disc brake dust cover have been modified as shown.

PRODUCTION EFFECTIVE:

From Frame Number Production Date

JT2AL3#**E0227107 January 1984
JT2AL3#**E3556759 January 1984
JT2AL3#**E0111016 January 1984

PART NUMBER INFORMATION:

Previous Part Number New Part Number Part Name

*43512-16030 43512-16031 Disc, front
**47781-16030 47781-16031 Cover, disc brake dust, front RH
**47782-16030 47782-16031 Cover, disc brake dust, front LH


*The new Part can be used with both (old and new) disc brake dust covers.
**The new parts must be used with the new front disc (43512-16031) only.
