M/T - Clutch Improvement For Reduced Chatter

TRANSMISSION
REFERENCE AND CLUTCH
NUMBER 024
DATE 6-27-84
MODEL AL3#

Clutch Assembly:

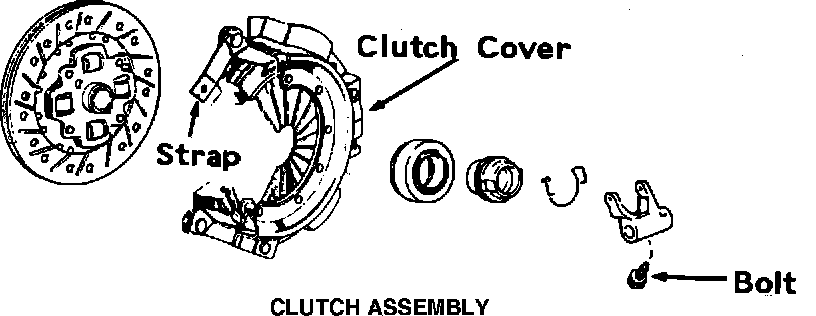

To reduce clutch chatter, the thickness of the strap and the clutch cover spring load have been increased as follows:

Previous New

Strap Thickness: 0.6 mm (0.024 in.) - 0.8 mm (0.031 in.)
Clutch Cover Spring Load: 350 kg (771.6 lb.) - 375 kg (826.7 lb.)

Clutch Pedal Height:

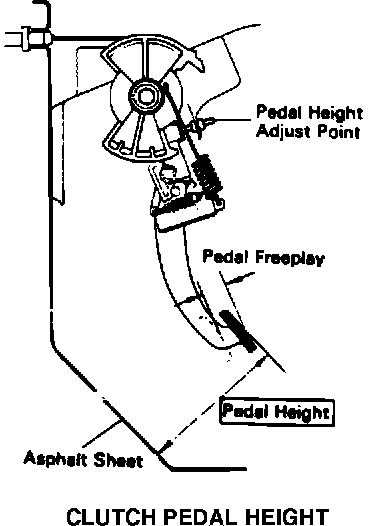

Due to these changes, the bolt for the release fork/release lever setting has been strengthened. Consequently, the clutch pedal height has been decreased from 184 - 194 mm (7.24 - 7.64 in.) to 177 - 187 mm (6.97 - 7.36 in.). When installing the new clutch cover assembly, readjust the pedal height to the new specification of 177 - 187 mm (6.97 - 7.36 in..).
PRODUCTION EFFECTIVE:

From Frame Number Production Date

JT2AL3#**E0127708 April 1984
JT2AL3#**E0247516 April 1984
JT2AL3#**E3566178 April 1984

PART NUMBER INFORMATION:

Previous Part Number New Part Number Part Name

31210-16040 31210-16050 Cover assy, clutch
90109-10026 90109-10079 Bolt (for release fork and release

lever setting)

The new parts are interchangeable as a set only.
