Pinout Values and Diagnostic Parameters

Connector Test Chart (Connected):

Connector Test Chart (Disconnected):

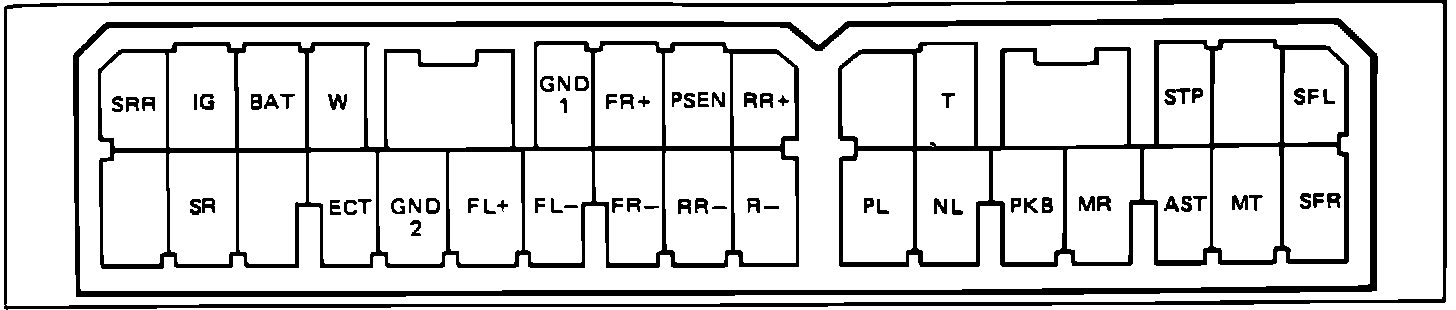

A.B.S. Computer Connector:

1. Inspect the system with the connector connected.
a. Remove the glove box and pull out the A.B.S. computer.
b. Using a voltmeter with high impedance (10K Ohms/V minimum), measure the voltage at each terminal and body ground.

A.B.S. Computer Connector:

Connector Test Chart (Connected):

Connector Test Chart (Disconnected):

2. Inspect the system with connector disconnected.
a. Disconnect the connectors from the computer, inspect at the wiring harness side of the connector.
b. Connect the connectors, and install the computer in place.
c. Install glove box.
