Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1990
>>
Supra L6-3.0L DOHC Turbo (7M-GTE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Connector Identification
Connector Identification

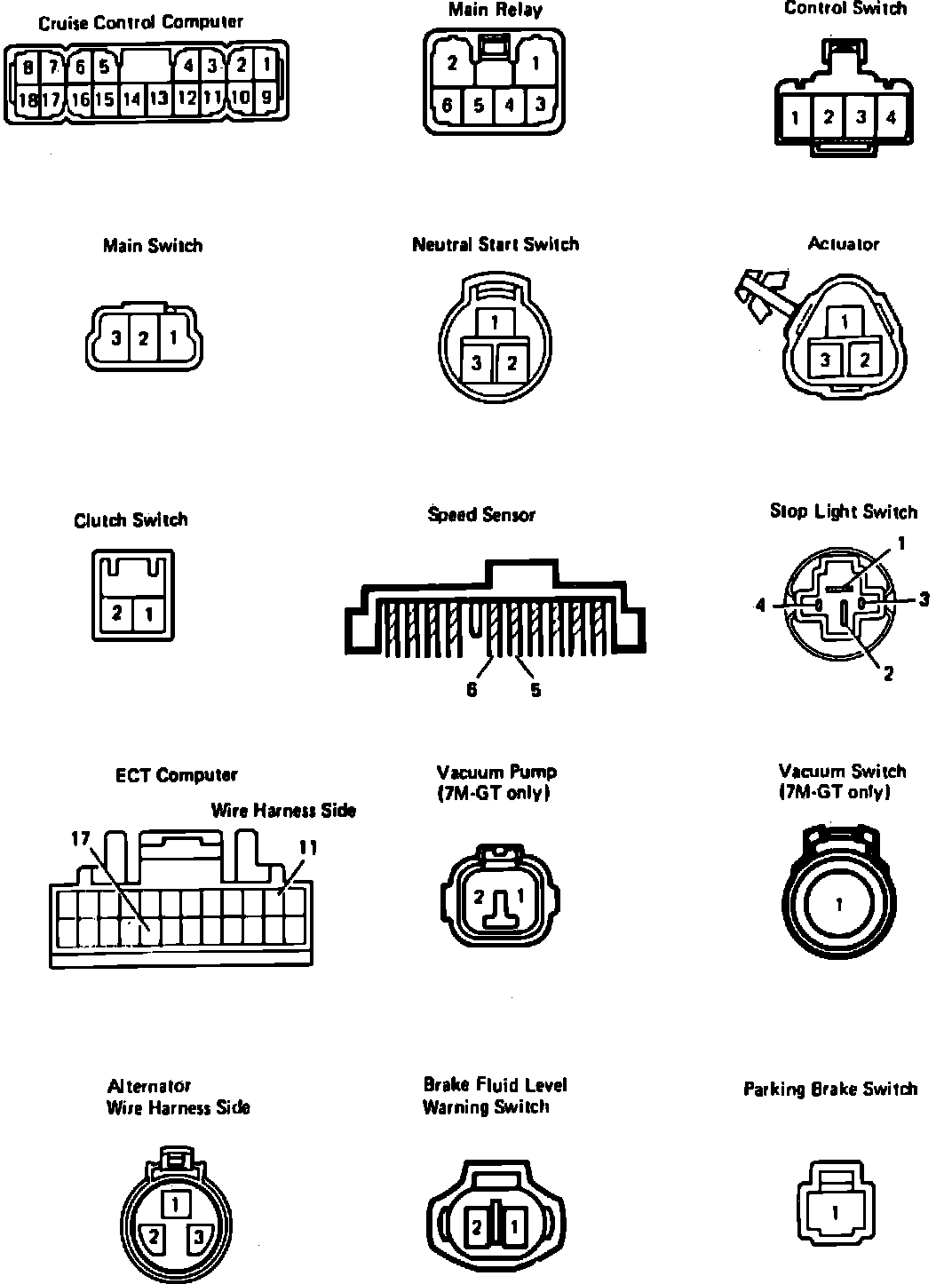

Fig. 52 Connector Identification:
