Engine Compartment
Engine Compartment

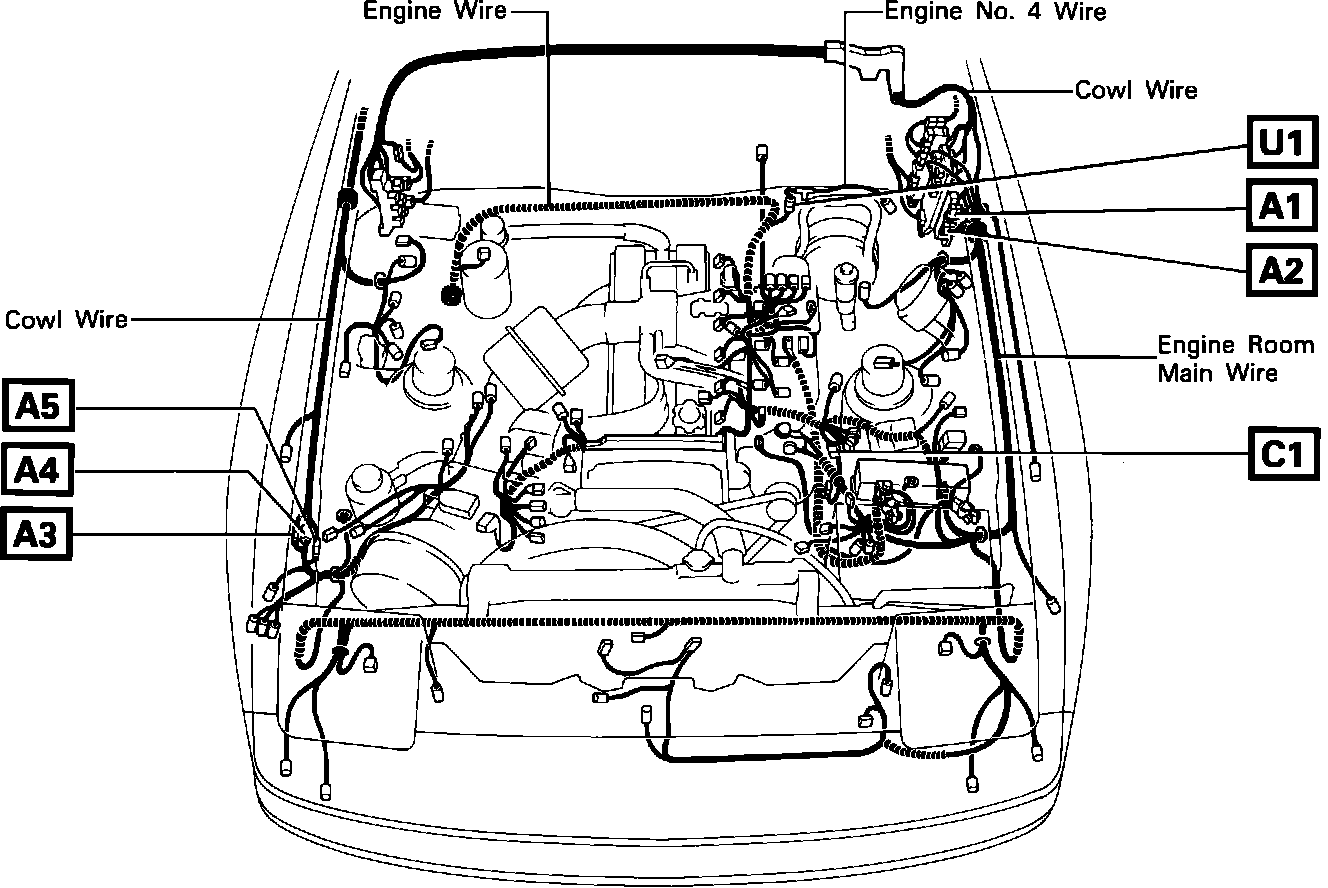

Location Of Connector Joining Wire Harness And Wire Harness:
Connector Joining Wire Harness And Wire Harness:
