Suspension Control ( Automatic - Electronic )

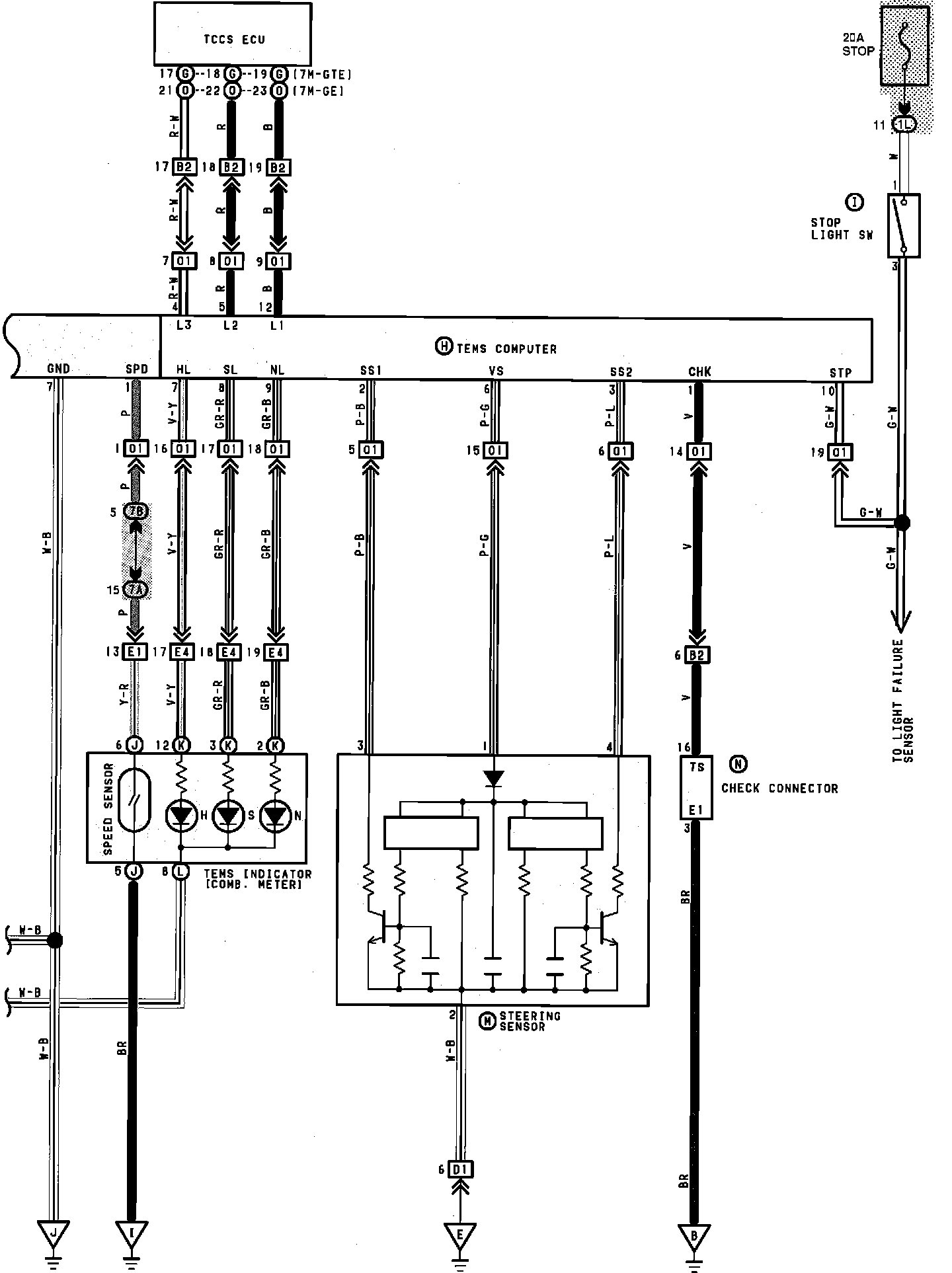

Toyota Electronic Modulated Suspension (TEMS):



Toyota Electronic Modulated Suspension (TEMS):
