Fuse and Fusible Links
>>
Junction Block
>>
Number 1
Number 1
Fuse Panel Junction Block: No. 1 (Left Kick Panel):

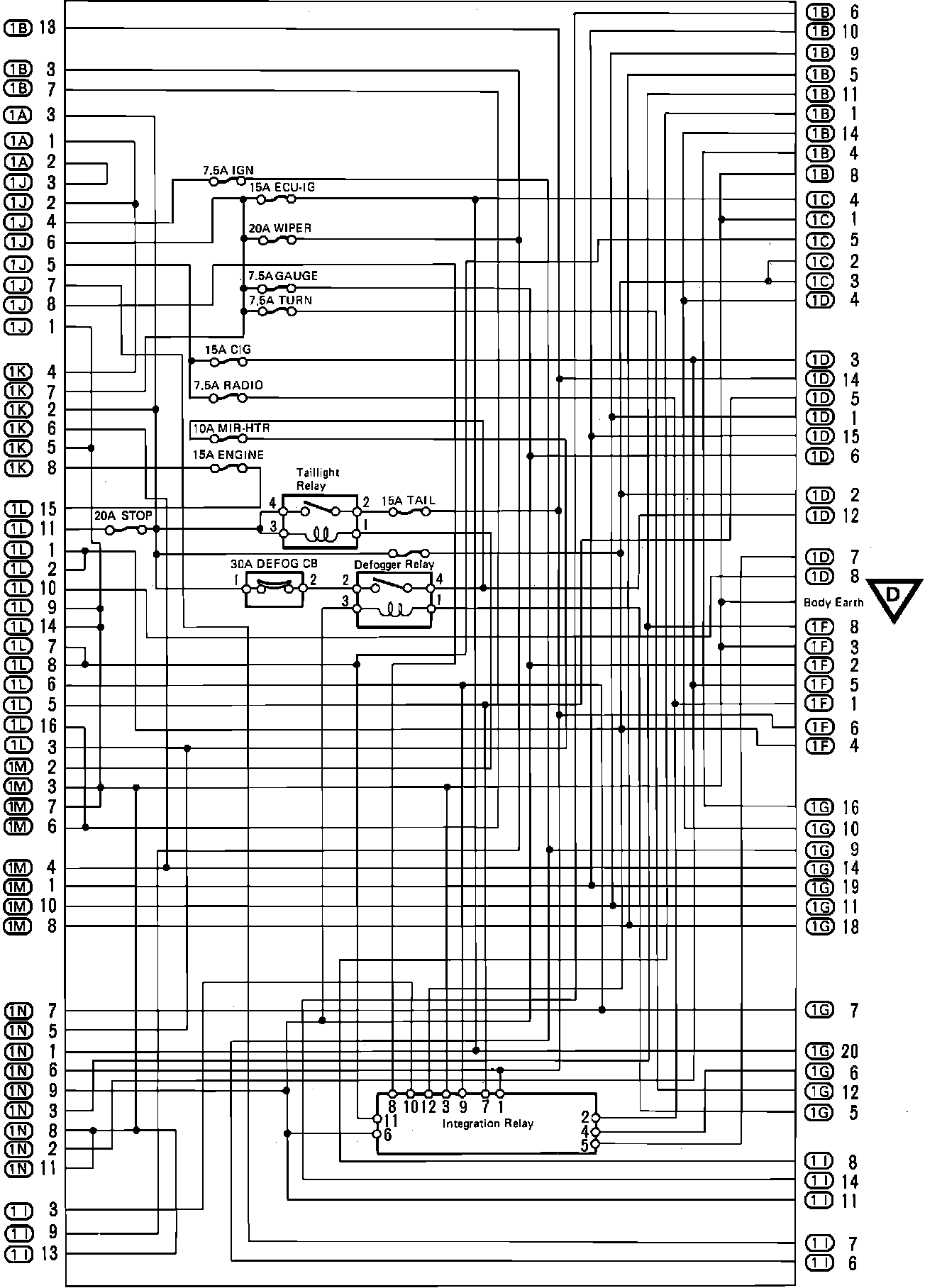

Fuse Panel Junction Block: No. 1 (Inner Circuit):
