Temperature Switch (Warning Indicator): Locations

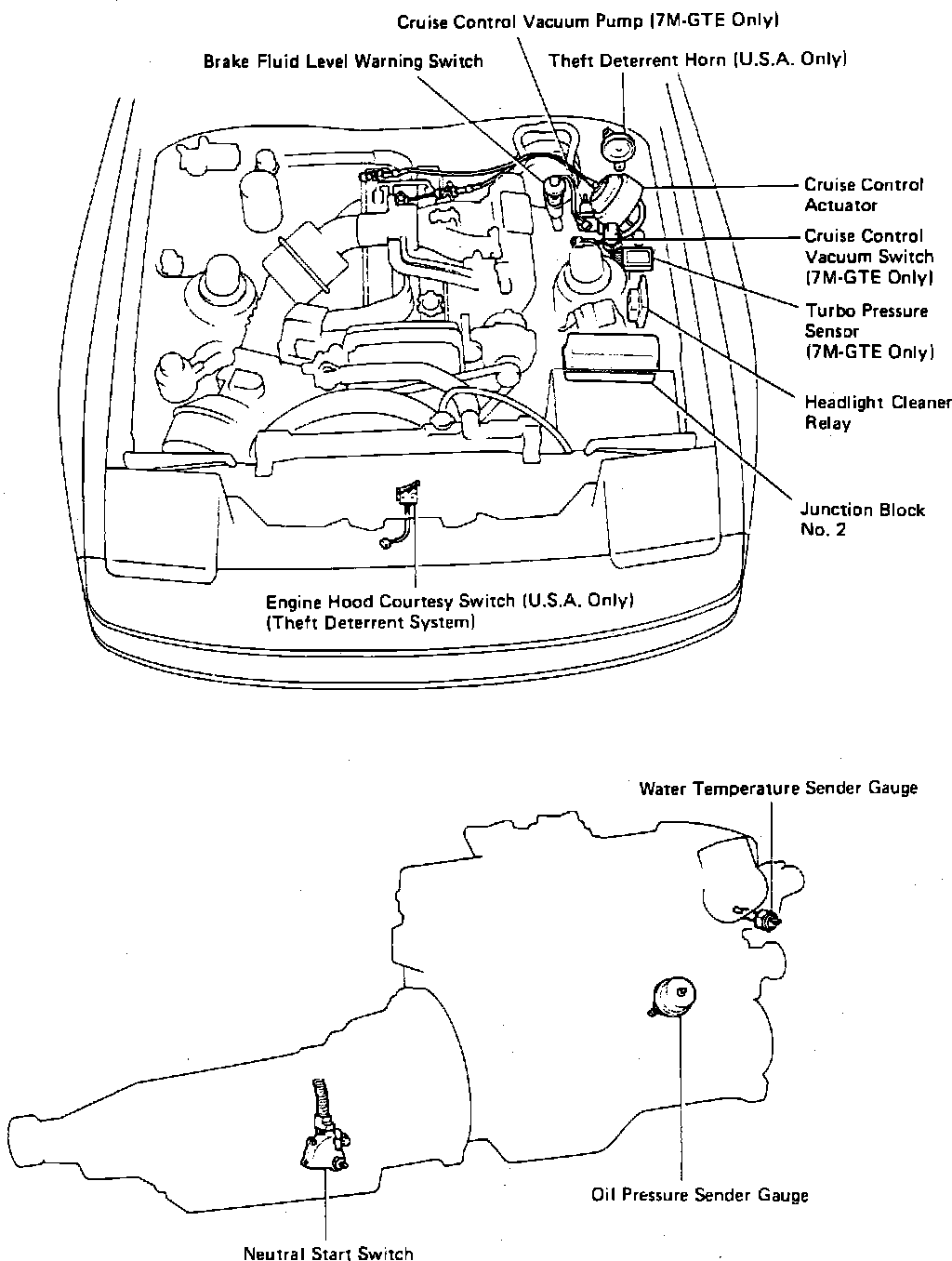

Body Electrical System Component Locations:




Front RH Side Of Engine
