Instruments - Turn Signal Modifications

90toyota05 REFERENCE ELECTRICAL
NUMBER 013
DATE 09-28-90
MODEL AT, ST, MA

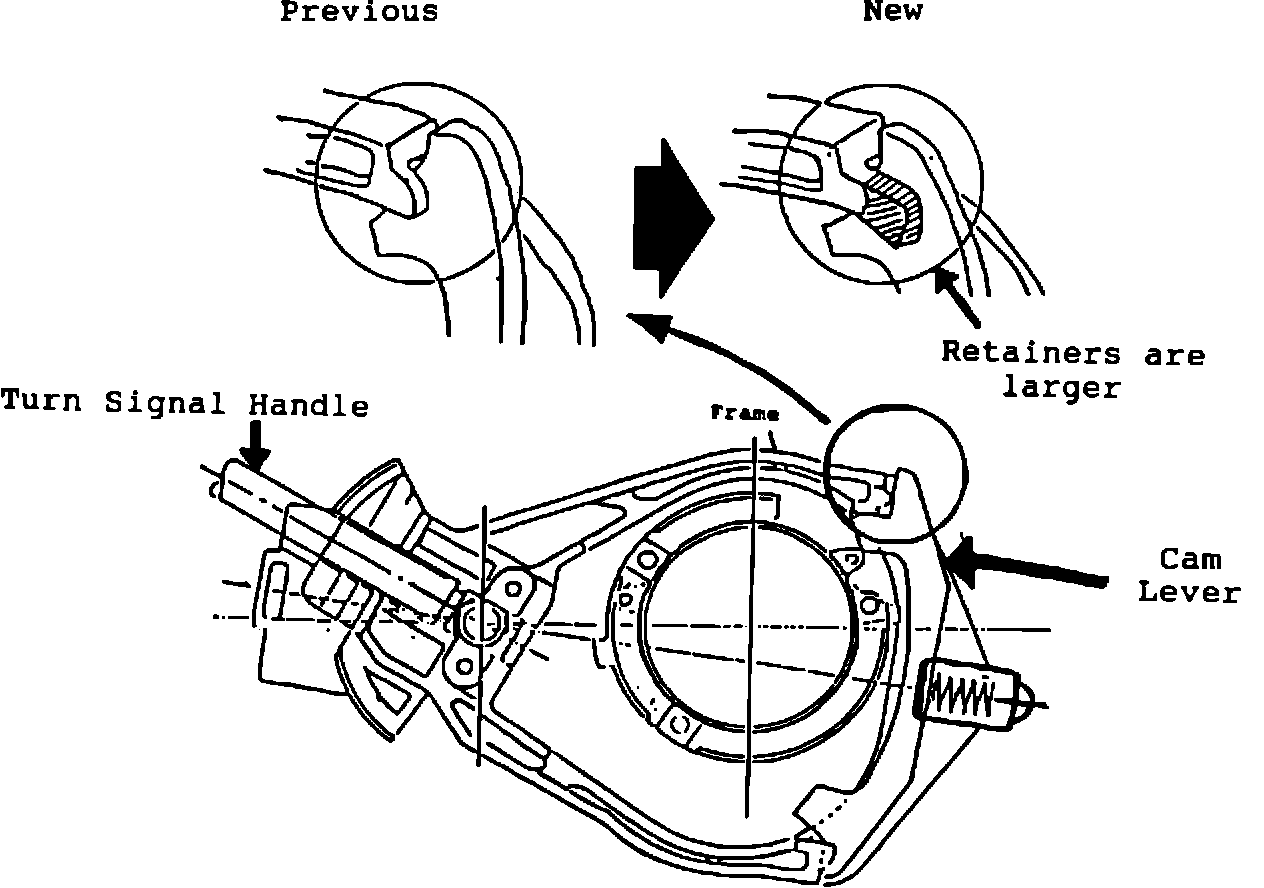

TITLE 1990 CELICA/SUPRA TURN SIGNAL OPERATIONS






PRODUCTION EFFECTIVE:



IDENTIFICATION METHOD:
Parts built after October 6, 1989 have the modification and can be identified by the following method:

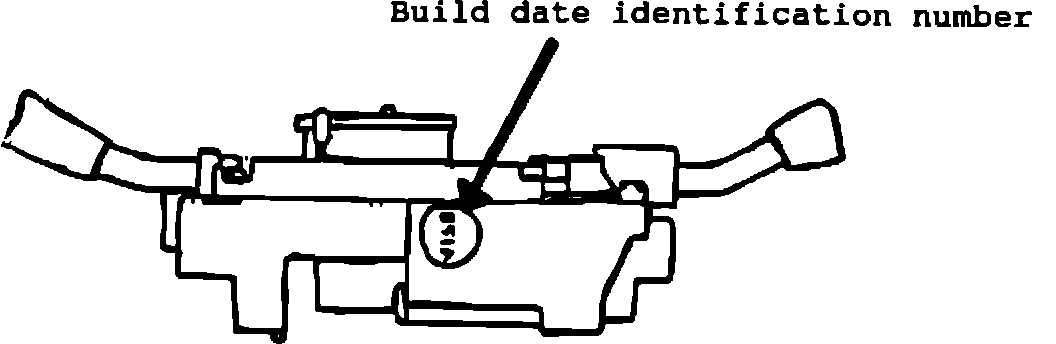

1) Locate the 4-digit build date identification number on the Turn Signal Switch.

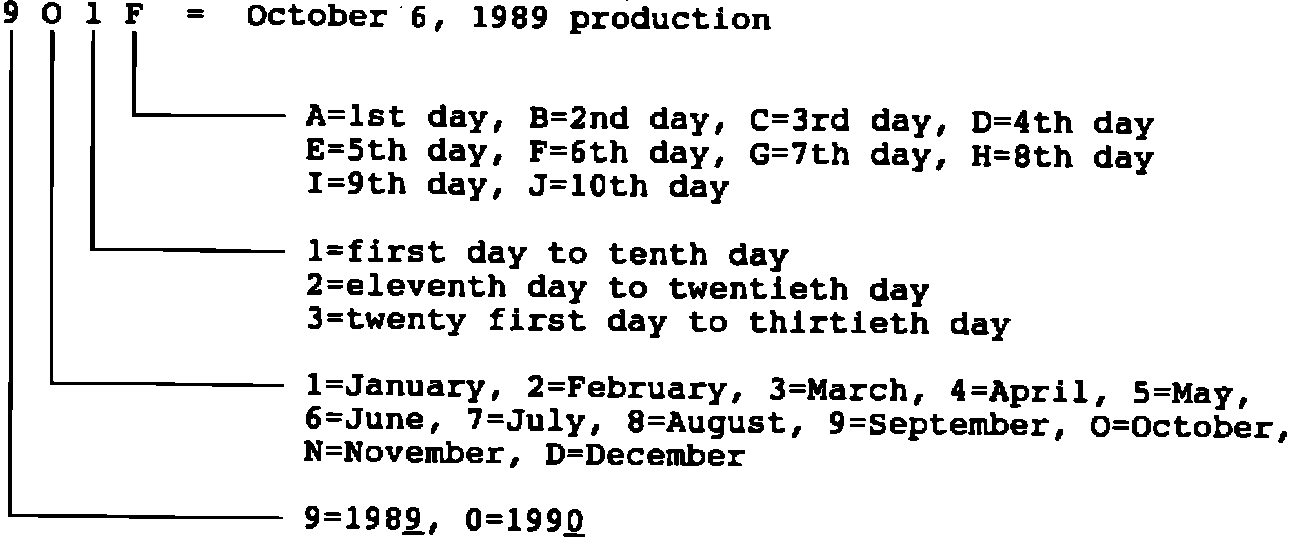

2) Use the following chart to identify the build date.
