Home >> Toyota >> 1990 >> Supra L6-3.0L DOHC Turbo (7M-GTE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

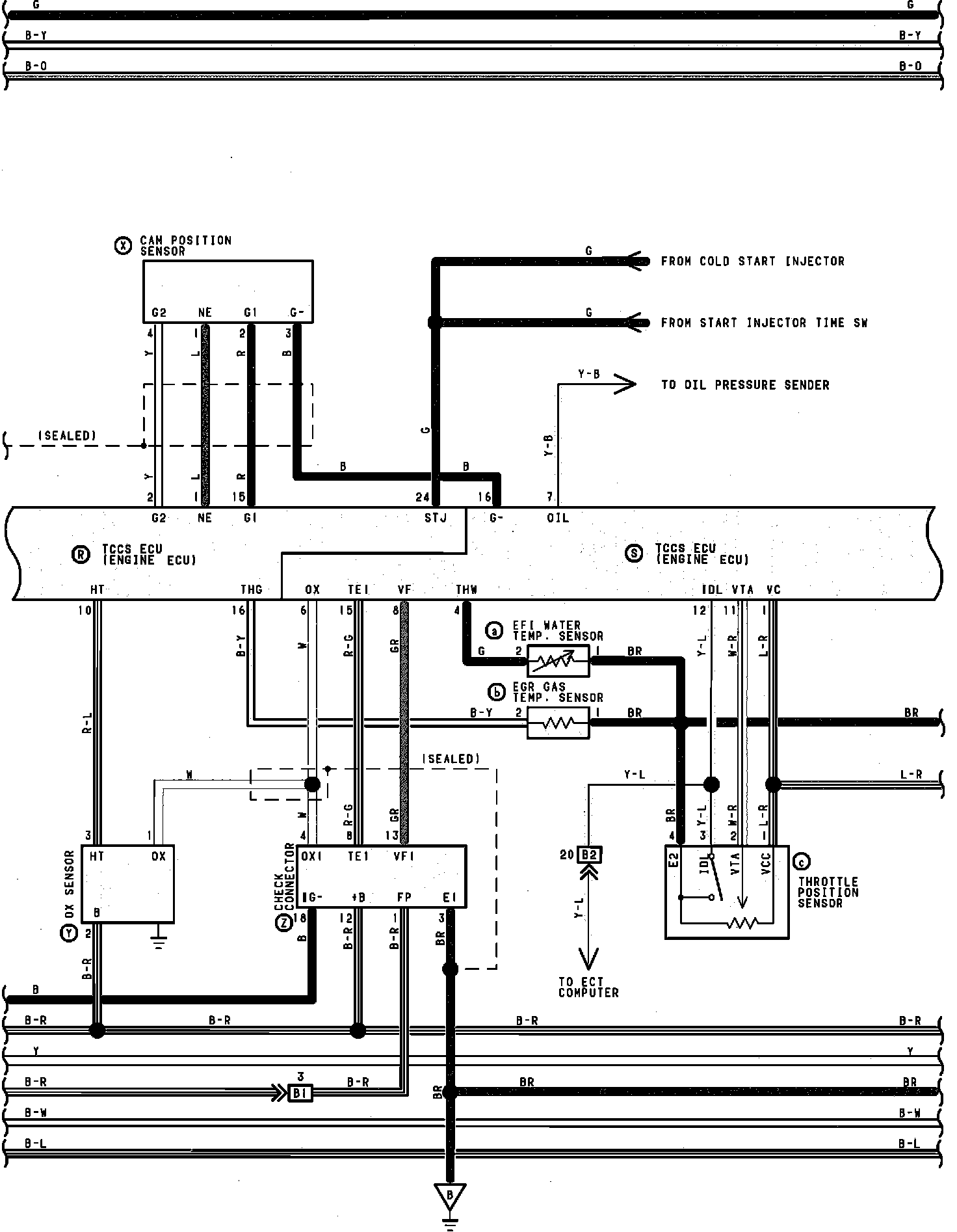

Engine Controls (7M-GTE Engine):



Engine Controls (7M-GTE Engine):



Engine Controls (7M-GTE Engine):



Engine Controls (7M-GTE Engine):
