7M-GE Engine (Non Turbocharged)

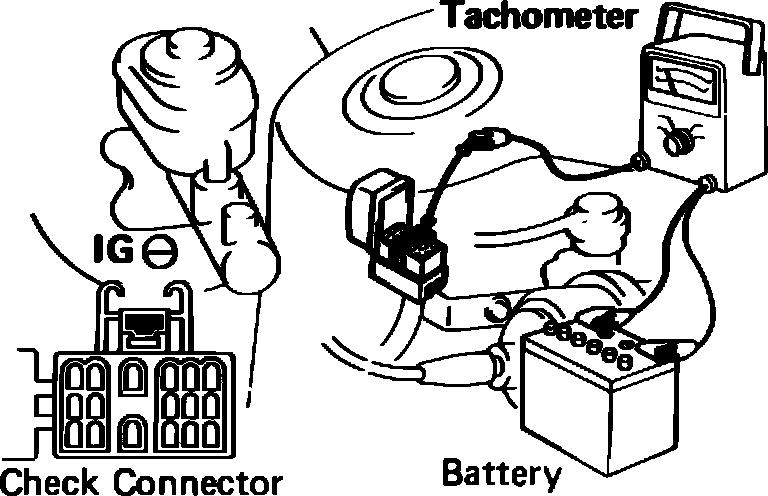

Fig. 30 Connecting Tachometer:

DIAGNOSTIC CHECK CONNECTOR:
Located on left strut tower, near brake master cylinder

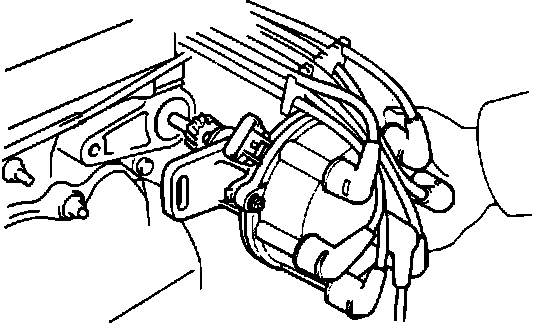

Distributor:

DISTRIBUTOR:
Located on right front of cylinder head

ECU Location:

ELECTRONIC CONTROL UNIT (ECU):
Located drivers side of vehicle behind glove box

IGNITER:
Located near ignition coil

IGNITION COIL:
Located left side of engine compartment

Pickup Coil Air Gap:

SIGNAL GENERATOR PICKUP COILS:
Located inside distributor

Spark Plug Removal:

SPARK PLUGS:
Located in top of cylinder head, center of valve cover
