Electrical Diagrams
Electrical Diagrams

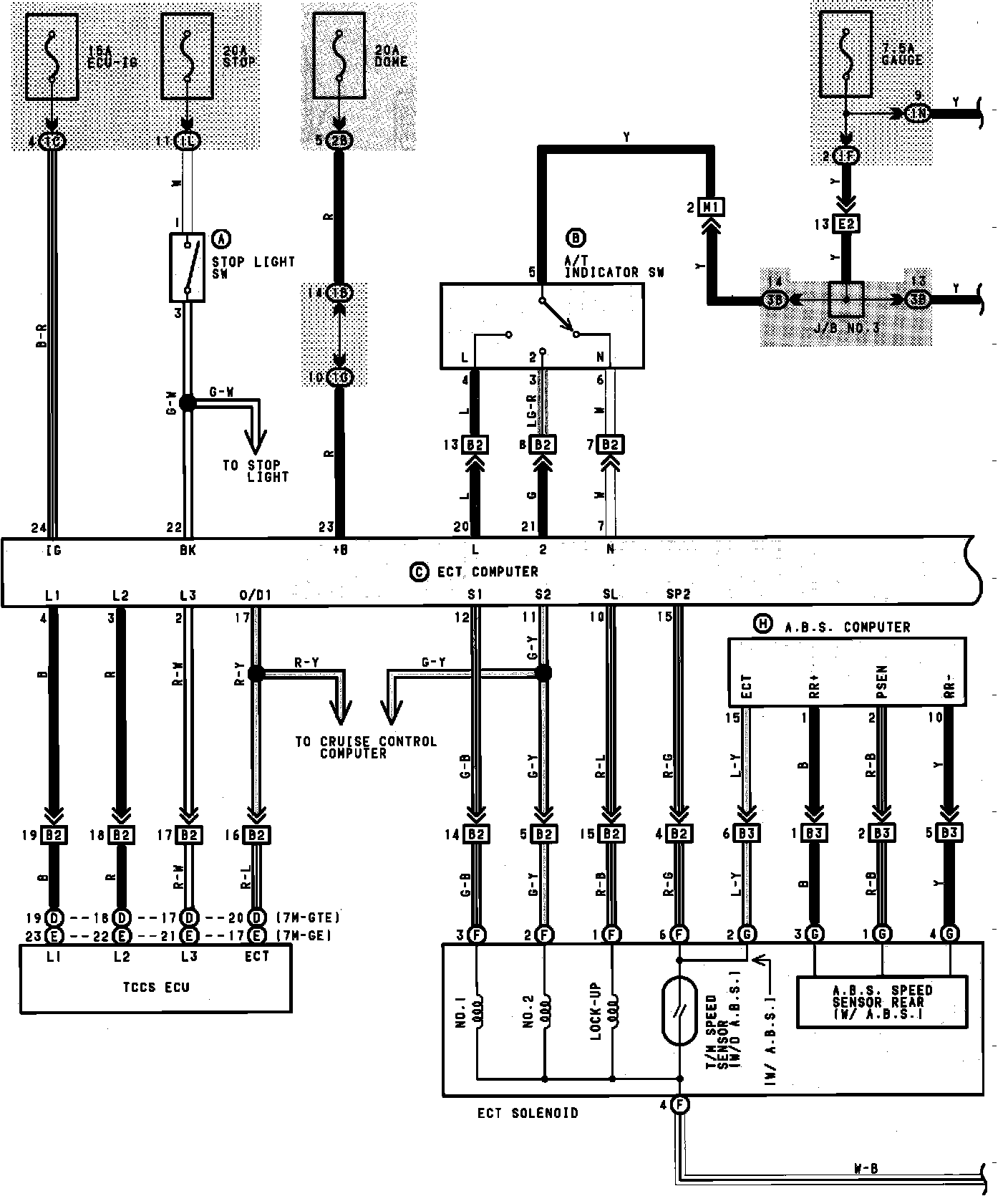

Electronic Controlled Transaxle:

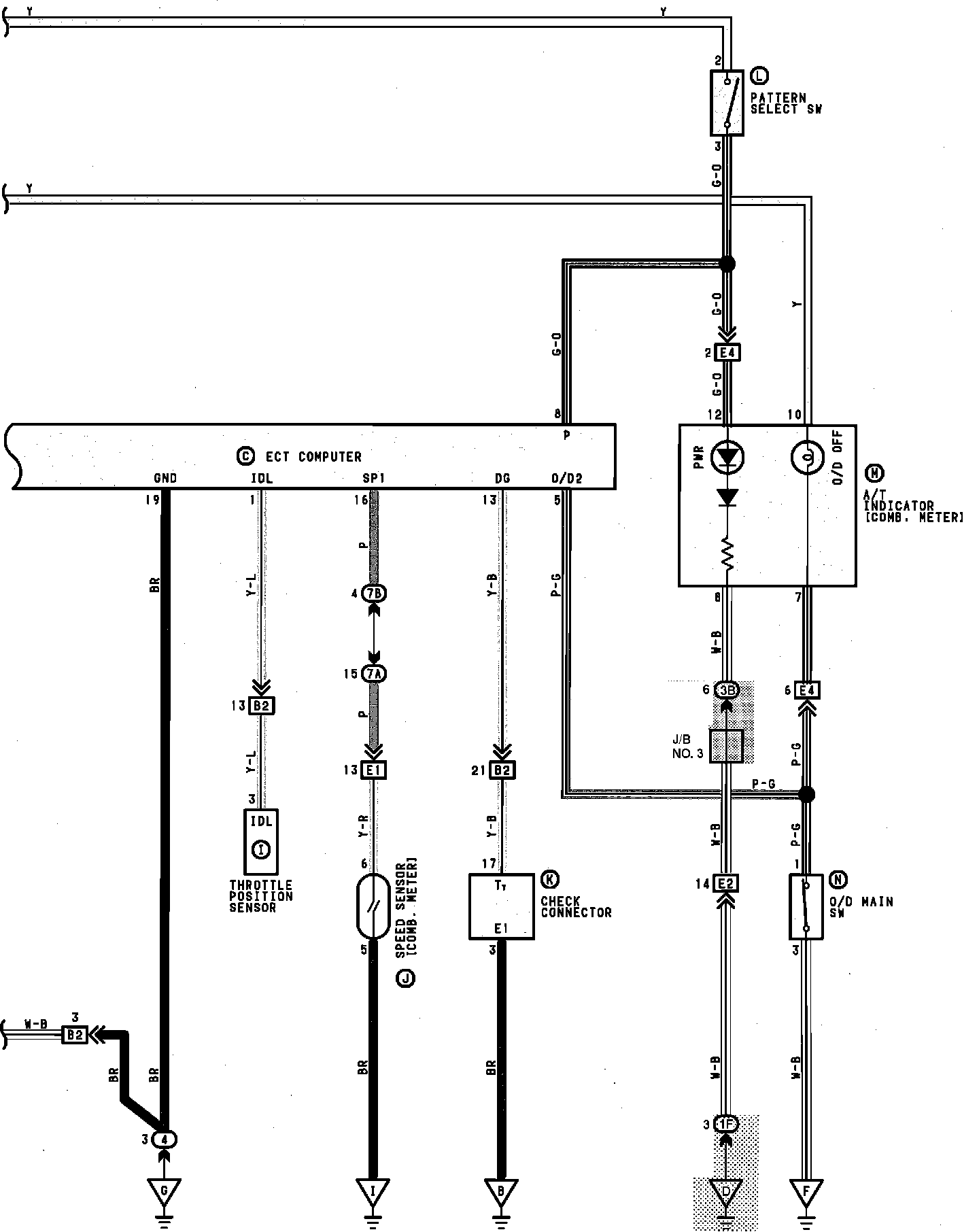

Electronic Controlled Transaxle:
