Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1990
>>
Supra L6-3.0L DOHC Turbo (7M-GTE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

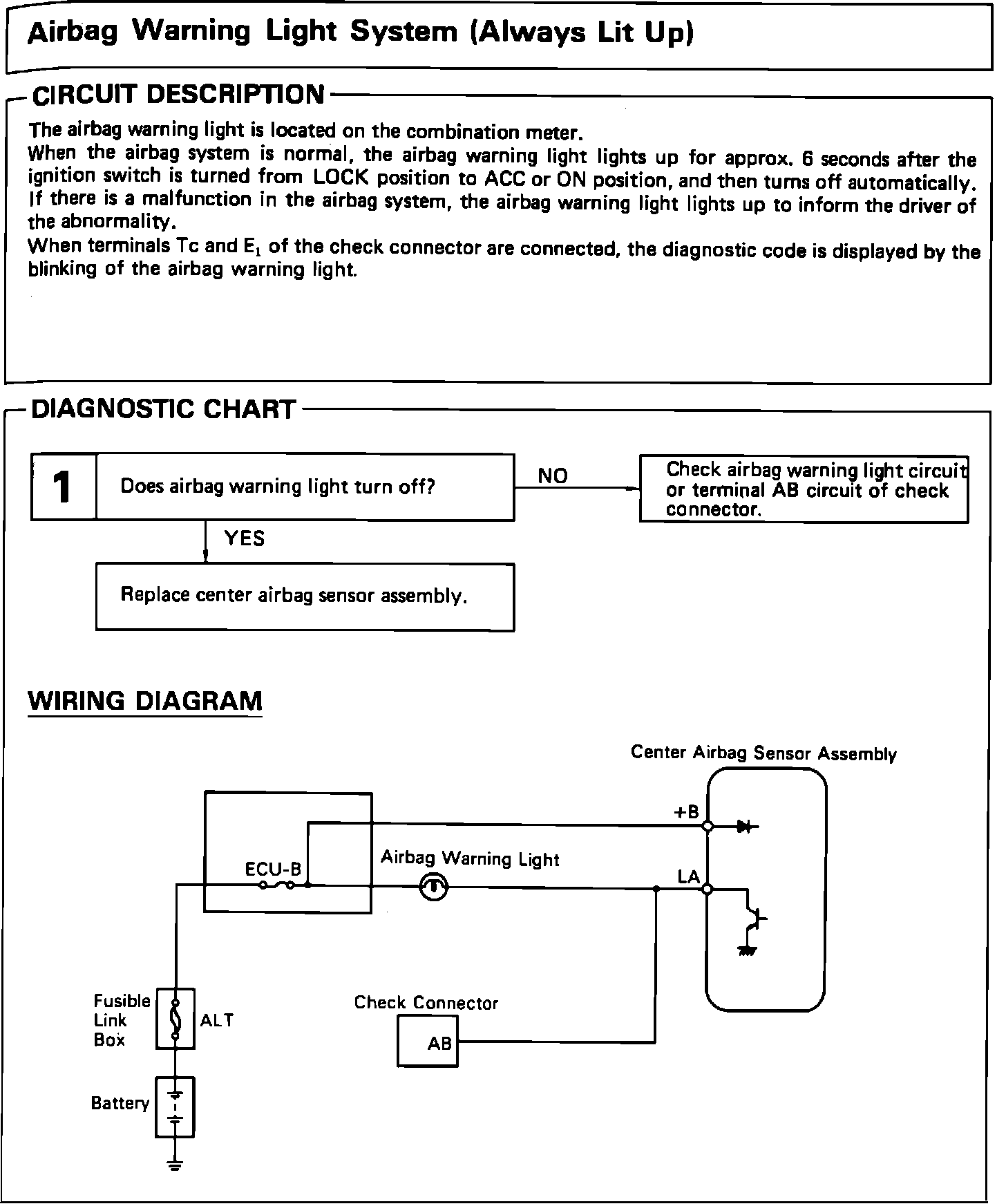

Fig. 9 Airbag Warning Lamp Diagnosis (Part 1 Of 2). Celica, MR2 & Supra:
Fig. 9 Airbag Warning Lamp Diagnosis (Part 2 Of 2). Celica & Supra:
