Removal and Installation

Disarm airbag system.

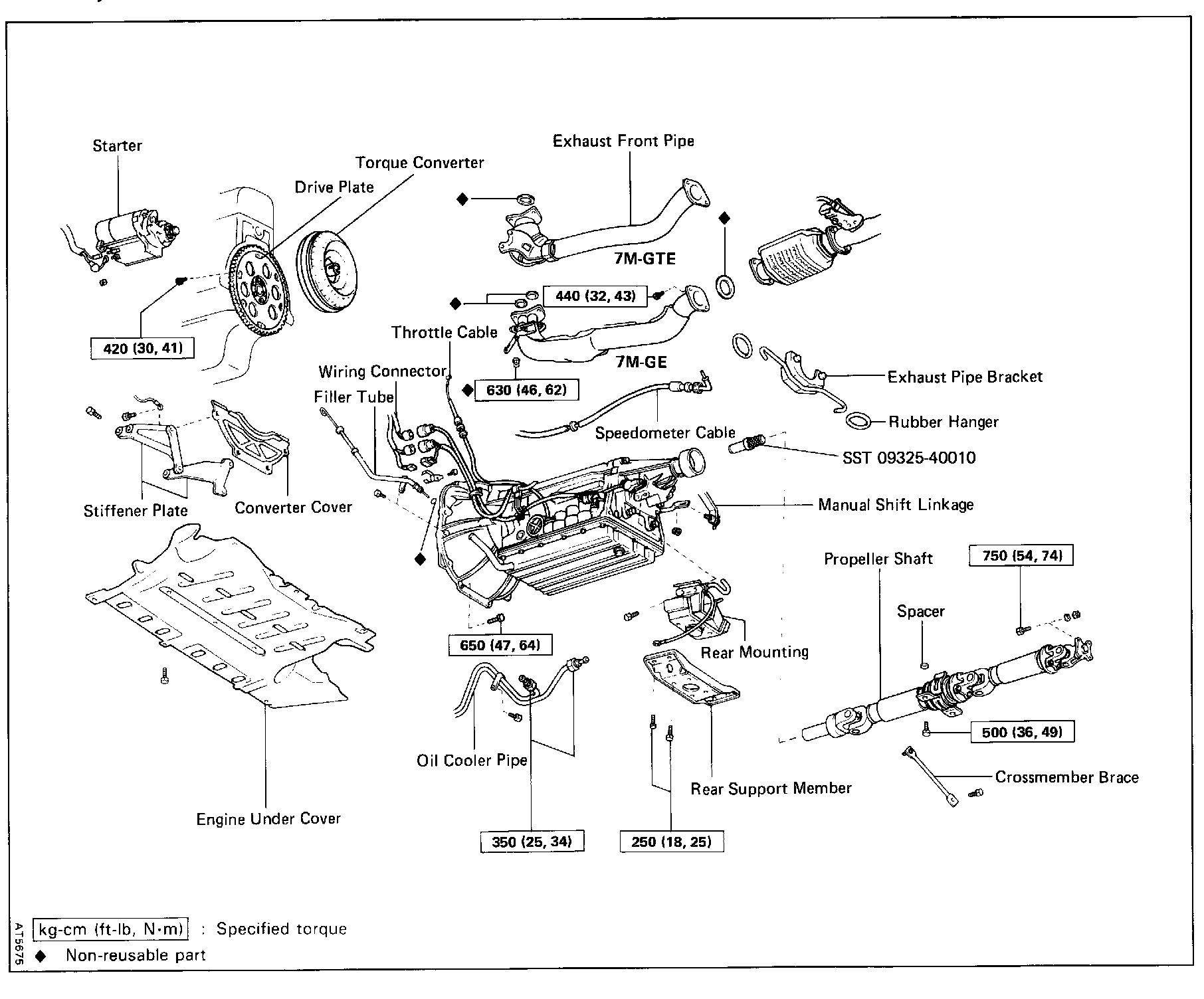

Remove and install the parts as shown.

(MAIN POINT OF INSTALLATION)





1. CHECK TORQUE CONVERTER INSTALLATION
Using calipers and a straight edge, measure from the installed surface of the torque converter to the front surface of the transmission housing.

Correct distance: 26.4 mm (1.039 in.)

If the distance is less than the standard, check for an improper installation.

2. ADJUST TRANSMISSION THROTTLE CABLE
3. FILL TRANSMISSION WITH ATF AND CHECK FLUID LEVEL

Fluid type: ATF DEXRON(R) II

NOTE: Do not overfill.
