Shift Interlock: Testing and Inspection

COMPONENT AND CIRCUIT

INSPECTION OF ELECTRIC CONTROL COMPONENTS

1. INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminals.

2. INSPECT SHIFT LOCK SOLENOID

a. Disconnect the solenoid connector.
b. Using an ohmmeter, measure the resistance between terminals.

Standard resistance: 20 - 28 ohms

c. Apply the battery voltage between terminals. At this time, confirm that a solenoid operation.

3. INSPECT KEY INTERLOCK SOLENOID

a. Disconnect the solenoid connector.

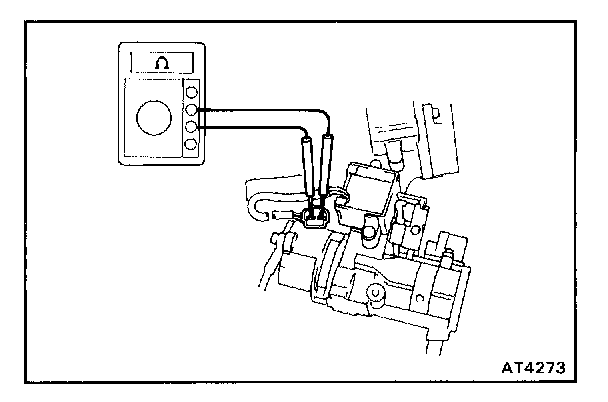

b. Using an ohmmeter, measure the resistance between terminals.

Standard resistance: 12 - 17 ohms

c. Apply the battery voltage between terminals. At this time, confirm that a solenoid operation.

4. INSPECT SHIFT LOCK CONTROL SWITCH

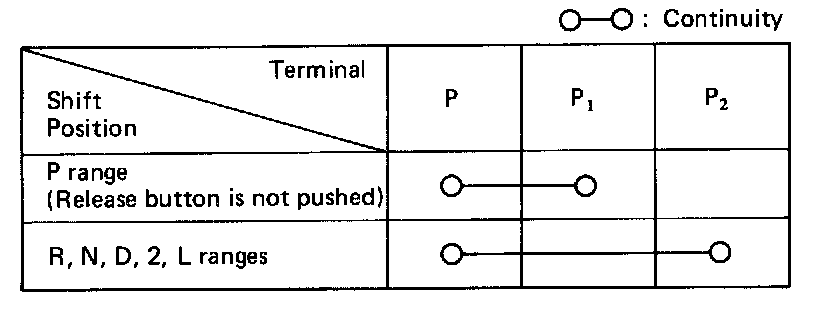

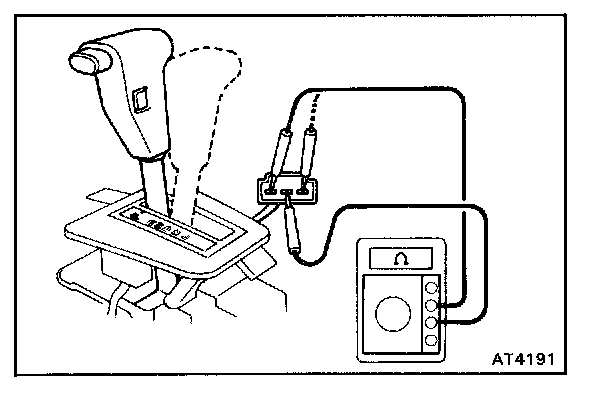

Inspect that there is continuity between each terminals.
