Home >> Toyota >> 1990 >> Supra L6-3.0L DOHC Turbo (7M-GTE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Specifications >> D/F Torque Data

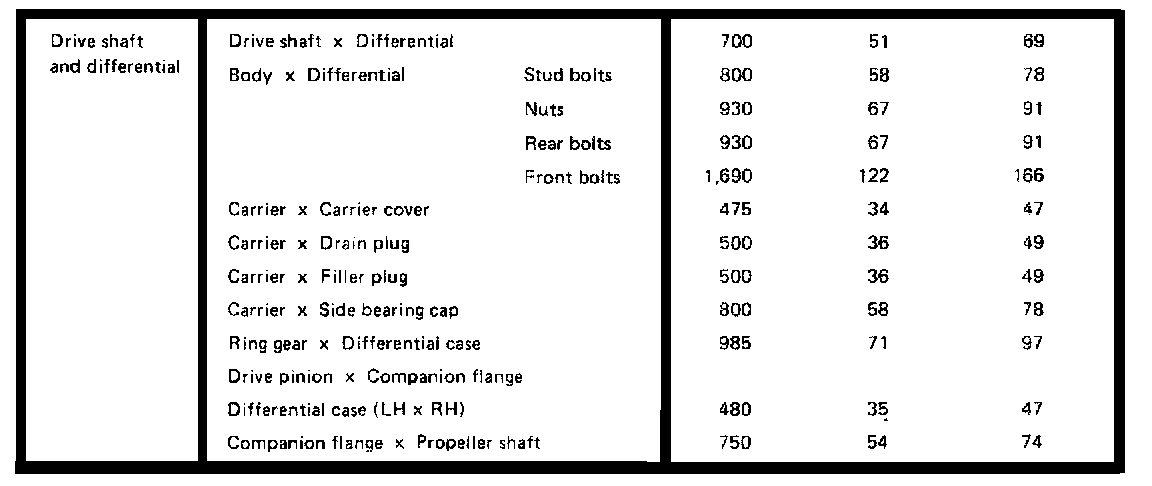

D/F Torque Data

Rear Differential, Carrier Torque:
