Manual Transmission/Transaxle: Description and Operation

Transmission

Specifications:

- Transmission types W58 and R154 are constant mesh synchronizers for forward gear and a sliding mesh reverse gear.

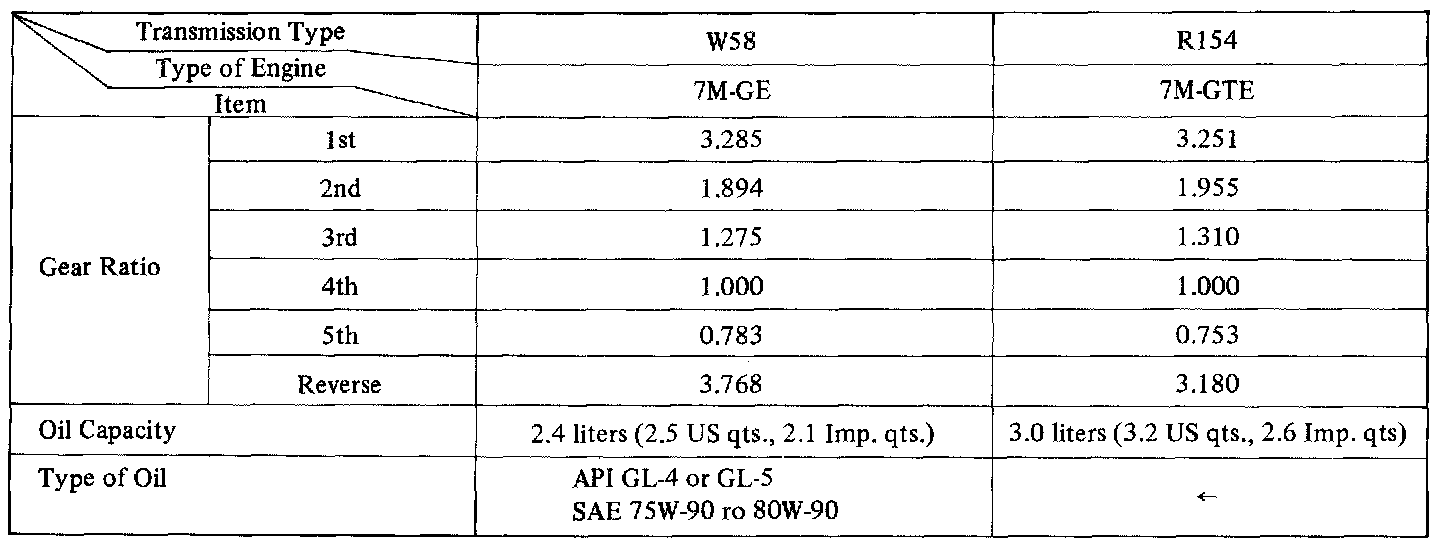

The specifications and cross-section diagram are as shown.
