Windows - Master Power Window Button Modified

91toyota03

REF.: ELECTRICAL


NO.: EL91-003


DATE: MAY 31, 1991


MODEL: MA


1990/1991 SUPRA MASTER POWER WINDOW BUTTON

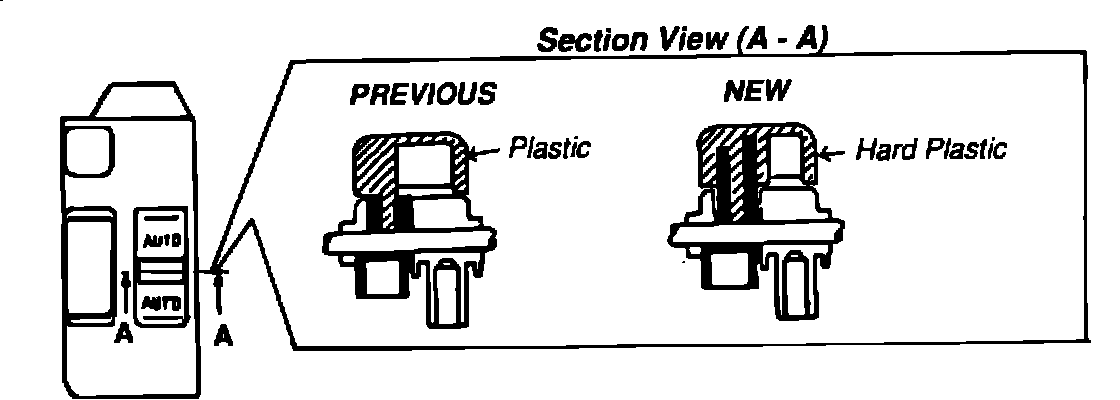

The material and design of the master power window button (Driver side) has been change to improve durability of the switch:


PRODUCTION EFFECTIVE:

From VIN: P/D
JT2MA7 * * * L0152408 6/90

PART NUMBER INFORMATION:
Part Number Description
84820-20200 Switch Assy, Master Window

Part Number remains unchanged.





IDENTIFICATION PROCEDURE:

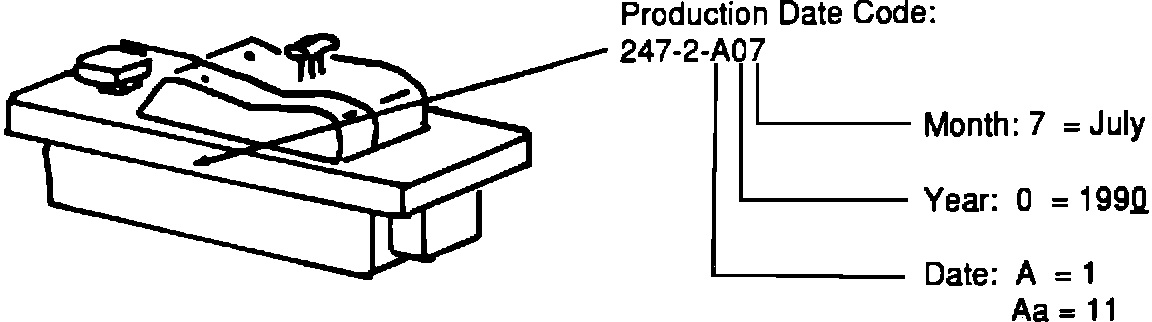

When replacing the master window switch assembly, use the production date code on the side of the switch to identify switches made after the production change date of July 1, 1990:
