Headlamp Washer Motor Relay: Locations

Body Electrical System Component Locations:

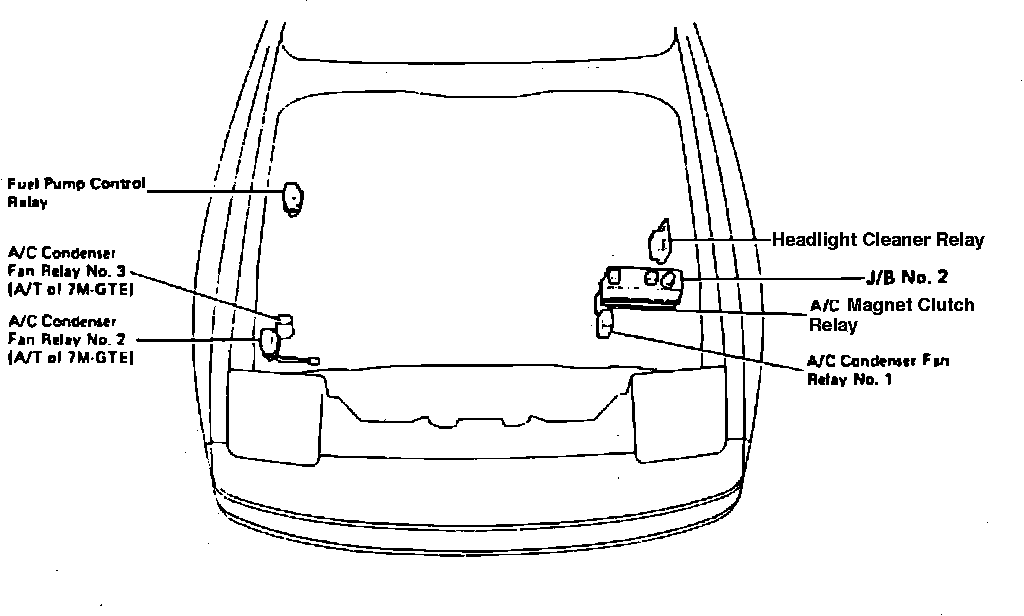

Engine Compartment Relay Locations:




LH Side Of Engine Compartment
