Engine: Diagrams

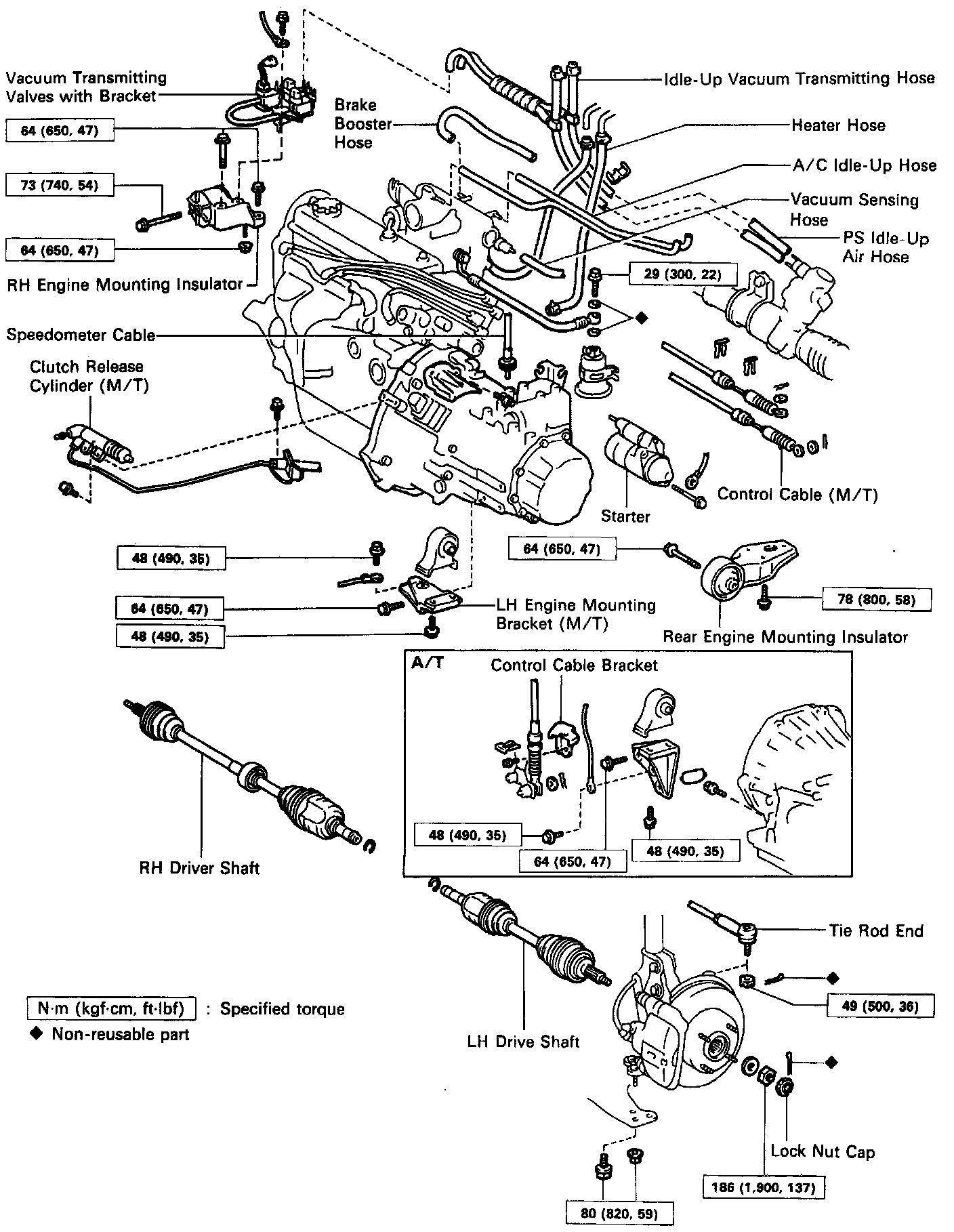

Components For Cylinder Block Removal And Installation (1 Of 2):

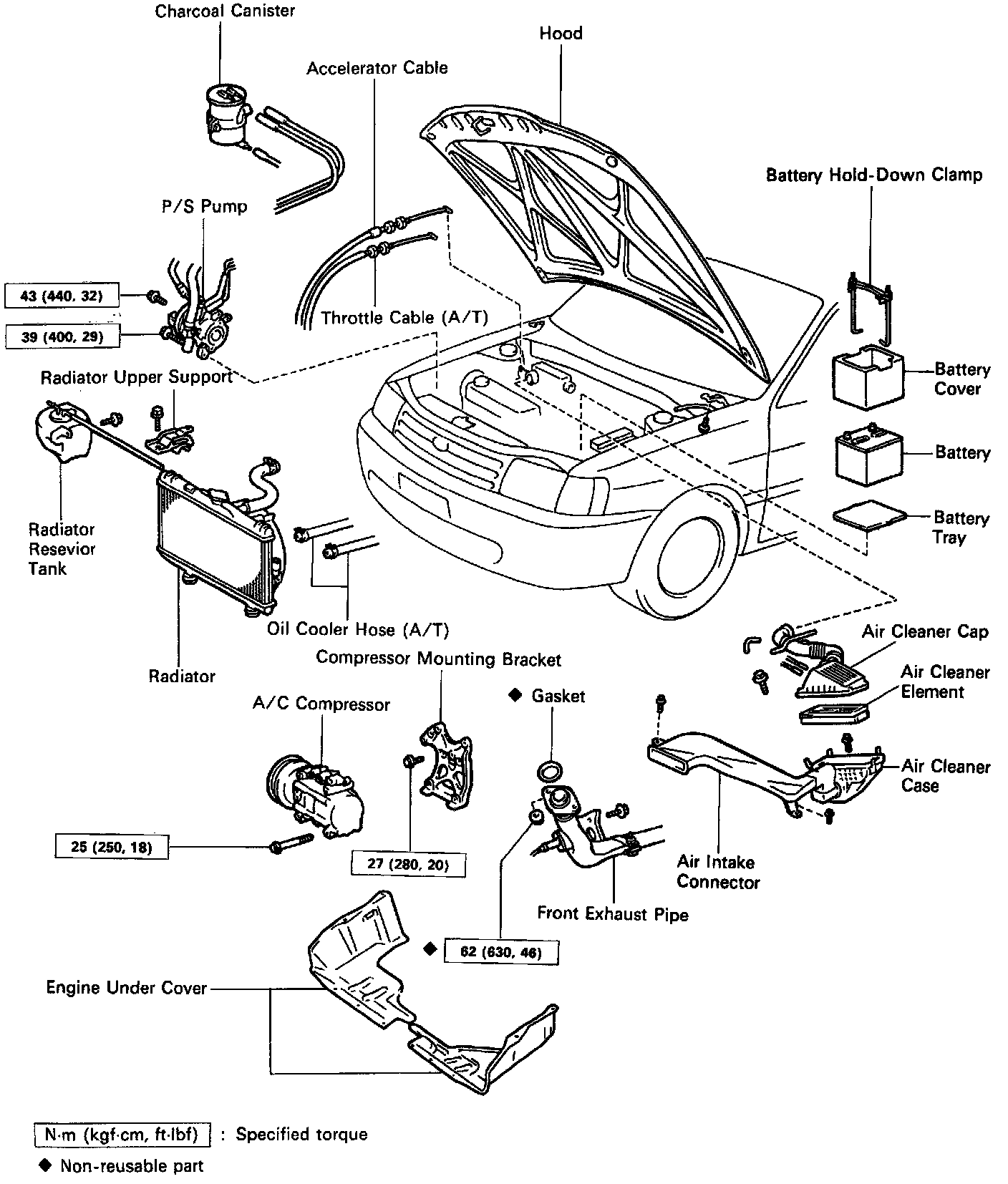

Components For Cylinder Block Removal And Installation (2 Of 2):
