Receiver Dryer: Service and Repair
REMOVAL OF RECEIVER1. DISCHARGE REFRIGERATION SYSTEM
2. DISCONNECT TWO LIQUID TUBES FROM RECEIVER
HINT:Cap the open fittings immediately to keep moisture out of the system.

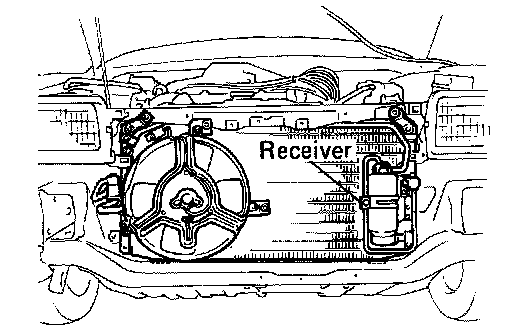

3. REMOVE RECEIVER FROM RECEIVER HOLDER
INSTALLATION OF RECEIVER
1. INSTALL RECEIVER IN RECEIVER HOLDER
HINT: Do not remove the blind plugs until ready for connection.
2. CONNECT TWO LIQUID TUBES TO RECEIVER
Torque: 55 kg-cm (48 in.lb, 5.4 N.m)
3. IF RECEIVER WAS REPLACED, ADD COMPRESSOR OIL TO COMPRESSOR
Add 20cc (0.7 fl.oz.)
Compressor Oil:
4A-GE E/G DENSOOIL 7 or equivalent
4A-FE E/G DENSOOIL 6. SUNISO No. 5GS or equivalent
4. EVACUATE AIR FROM AIR CONDITIONING SYSTEM
5. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT AND CHECK FOR GAS LEAKAGE
Specified amount: 650 - 750 g (1.4 - 1.7 lb)
