A/C - Installation Kit Change
90toyota03 HEATING & AIRREFERENCE CONDITIONING
NUMBER 010
DATE 06-29-90
MODEL '90 EL w/3E
TITLE TERCEL A/C KIT CHANGE
Due to a change in engine controls effective December '89 production, the A/C kit for carbureted Tercels has been changed as follows:
(Refer to TSB Volume 10 Engine # 021)
CONTENT:

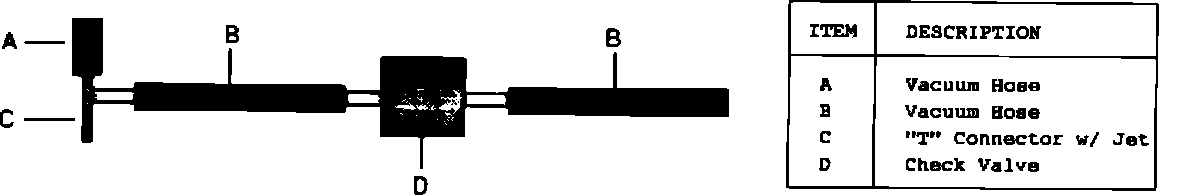

^ Additional check valve, 3-way vacuum "T" with jet and vacuum hoses have been added.

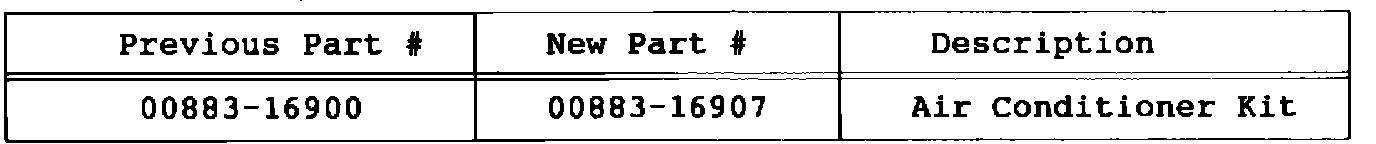

A/C KIT PART NUMBER CHANGE:

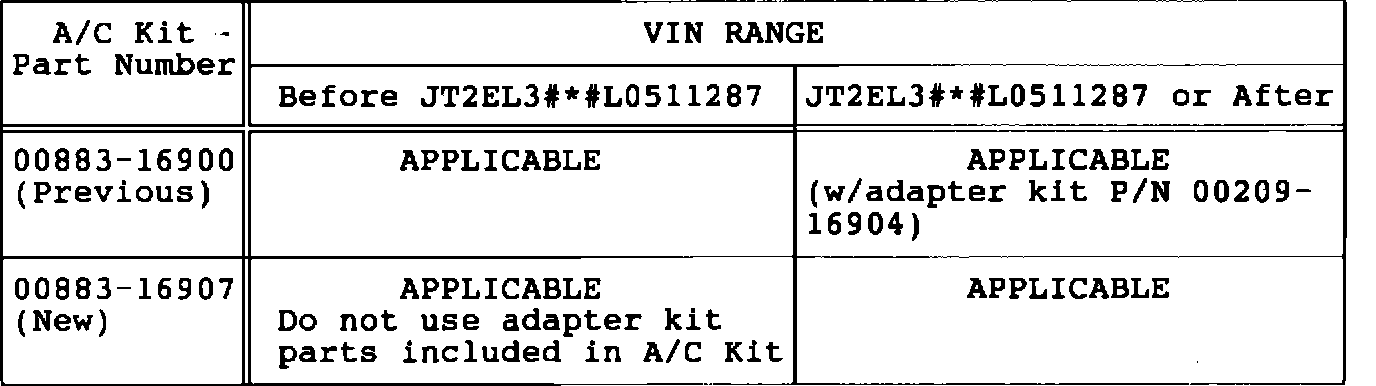

INTERCHANGEABILITY / APPLICATION:
NOTE: The new A/C kit (P/N 00883-16907) includes the adapter kit (P/N 00209-16904). The parts contained in this kit are not used on vehicles built prior to the 12/89 (Before L0511287) production change.
INSTALLATION:
The adapter kit parts are installed between the A/C VCV and the engine cold enrichment VCV # 2 as shown below:
1) Remove the original vacuum hose from the S-port of A/C VCV.
2) Attach vacuum hose "A" to S-port of A/C VCV.
3) Attach original vacuum hose to "T" Connector.
4) Remove the blind plug from the engine cold enrichment VCV # 2.
5) Attach vacuum hose "B" to the vacuum "T".

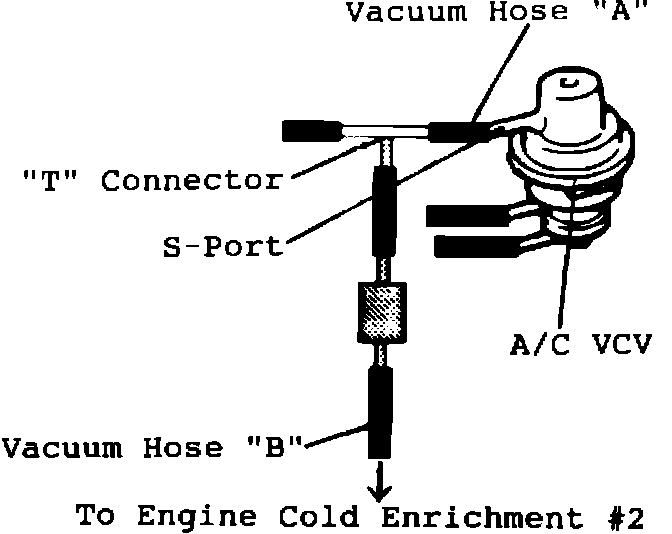

The completed installation should look like the following:
