A/T - Improved Direct Clutch (C2) Bushing

91toyota03

REF.: TRANSMISSION & CLUTCH


NO.: TM91-008


DATE: MAY 3, 1991


MODEL: AE, SW, ST, AT, EL, SV


DIRECT CLUTCH (C2) BUSHING A13 #, A24 #, A14 #, A540H


To improve the performance of the direct clutch, the following modifications have been made to the (C2) bushing:

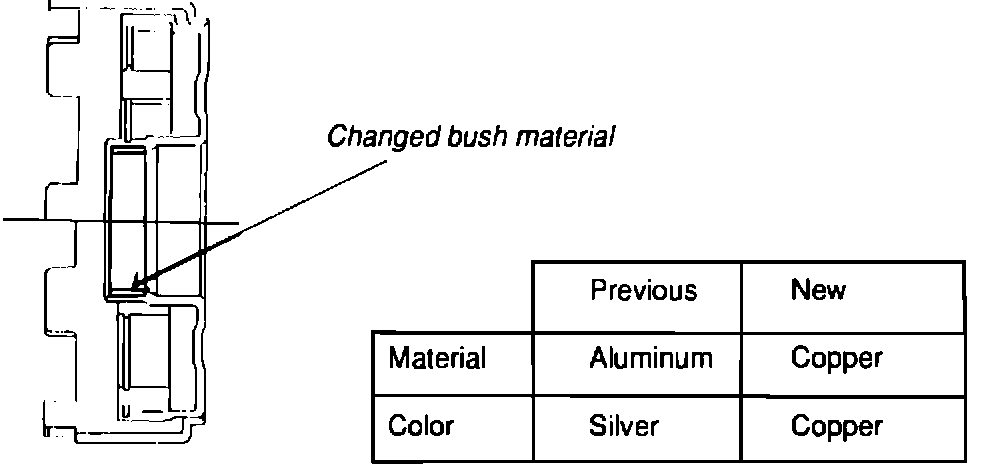

1) Changed the material of the Direct Clutch Drum Bushing.

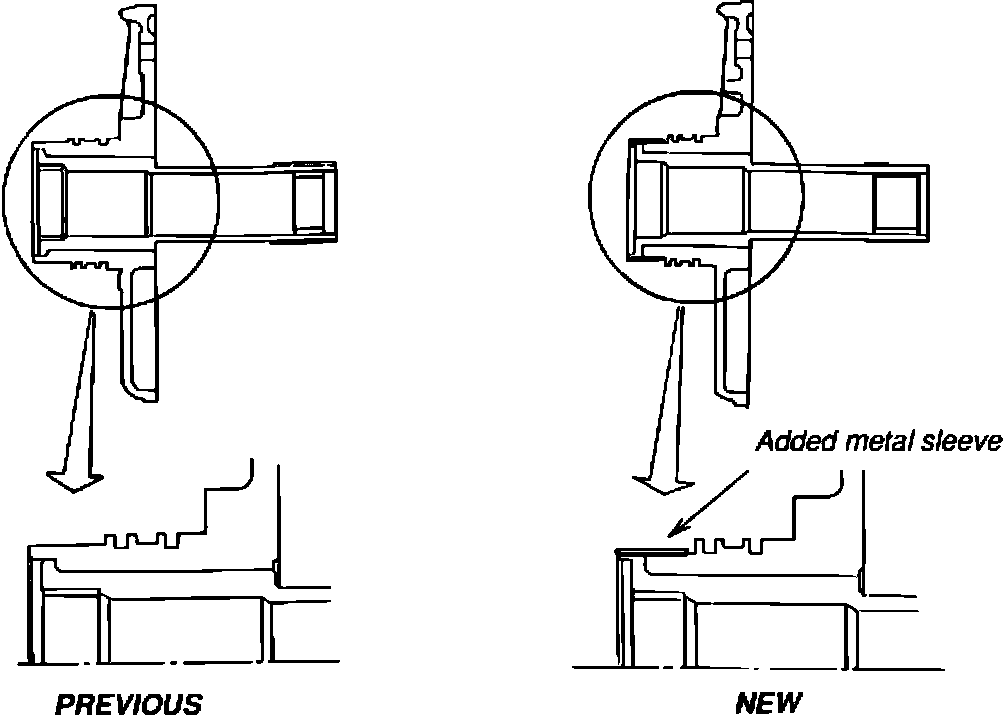

2) Added metal sleeve to the Stator Shaft.





DRUM SUB-ASSY, DIRECT CLUTCH





SHAFT ASSY, STATOR


PRODUCTION EFFECTIVE:

From VIN P/D A/TM Type

JT2AE9 # * # L0205446 6/90 A131L, A240L

JT2AE9 # * # L9040730 6/90 A131L, A240L

JT2AE9 # * # L3392069 6/90 A131L, A240L

JT2AE9 # * # L7080339 6/90 A131L, A240L

JT2AE9 # * # L8005774 6/90 A131L, A240L

JT2AE9 # V # L0127408 6/90 A241H

JT2AE9 # V # L3000012 6/90 A241H

JT2EL3 # * # L0559601 6/90 A132L

JT2SW21M # M0005273 6/90 A241E

JT2AT86F # L0032603 6/90 A243L

JT2ST8 # * # L0050795 6/90 A241L, A241E

JT2SV2 # * # L0359801 6/90 A140L, A140E

JT2SV2 # * # L3426295 6/90 A140L, A140E

4T1SV2 # * # LU256349 6/90 A140L, A140E

JT2SV2 # J # L0033651 2/90 A540H


PART NUMBER INFORMATION:


Prev. Part No. New Part No. Part Name Qty A/TM Type

35605-20010 * 35605-20020 Drum sub-assy, 1 A131L, A240L
direct clutch


35605-12020 * 35605-12030 Drum sub-assy, 1 A132L
direct clutch


35605-32031 * 35605-32060 Drum sub-assy, 1 A241E, A243L,
direct clutch 1 A241L, A140E,


A140L


35605-32031 * 35605-17020 Drum sub-assy, 1 A540H
direct clutch


35370-32022 * 35370-12040 Shaft assy, 1 A131L,A240L,
stator A241E, A243L,
A241L, A540H,


A132L


35370-32031 * 35370-32050 Shaft assy, 1 A140E, A140L
stator

* The direct clutch drum sub-assembly and stator shaft assembly must be replaced as a set. Refer to A/TM type when ordering.
