Audio - CD Players Scratching CD's

90toyota08 REFERENCE ELECTRICAL
NUMBER 016
DATE 12-28-90
MODEL ALL

TITLE: 1990 FUJITSU TEN CD PLAYERS SCRATCHING CD'S


The following 1990 model Fujitsu Ten CD players may exhibit scratching of CD's during insertion or ejection:

Model: Part Number: Application:
34201 08601-00801 PIO/DIO CD Player
14201 86270-14051 Factory Installed CD Player on 1990 Supra/Celica
14202 86270-95DOO Factory Installed CD Player on 1991 Previa

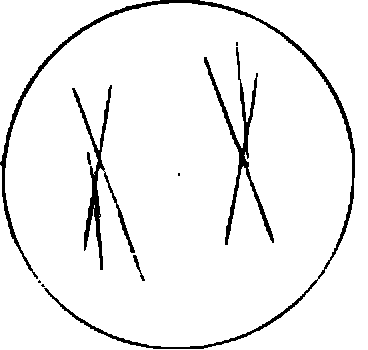

If the scratches occur, they will typically be straight and about 1-2 inches long on the label or playing surface of the CD as shown:

PRODUCTION CHANGE:

Fujitsu Ten has made the following production improvements to prevent this condition from occurring:

^ Design change of transport mechanism.
^ Prevention of foreign material contamination of the CD's transport mechanism.
^ Cleaning of transport mechanism.


CD Player P/N From CD Units
Serial Number Production Date

34201 08601-00801 5600000 10/89

14201 86270-14051 5600000 10/89

14202 86270-95DOO 5600000 10/89
IDENTIFICATION PROCEDURE:

The following procedure can be used to identify improved units:

^ Remanufactured CD players with the production change will have a 1/2 inch round brown sticker on the top cover (see current remanufactured inventory has been modified).

^ CD Players with the production change incorporated at the factory will either have a 1/4 inch green dot next to the serial number or have a serial number above 5600000. (CD Players with serial numbers above 5600000 will not have the 1/4 inch dot.)



SHIPPING INSTRUCTIONS:

When shipping the CD Players, insert the shipping screw to prevent damage to the CD Player as illustrated below:
